Please note – This product is not made by Great Scott Gadgets. "HackRF" is a trademark of Great Scott Gadgets. Permission to use the trademark with attribution to Great Scott Gadgets is granted to all licensees of HackRF for the sole purpose of naming or describing copies or derived works.

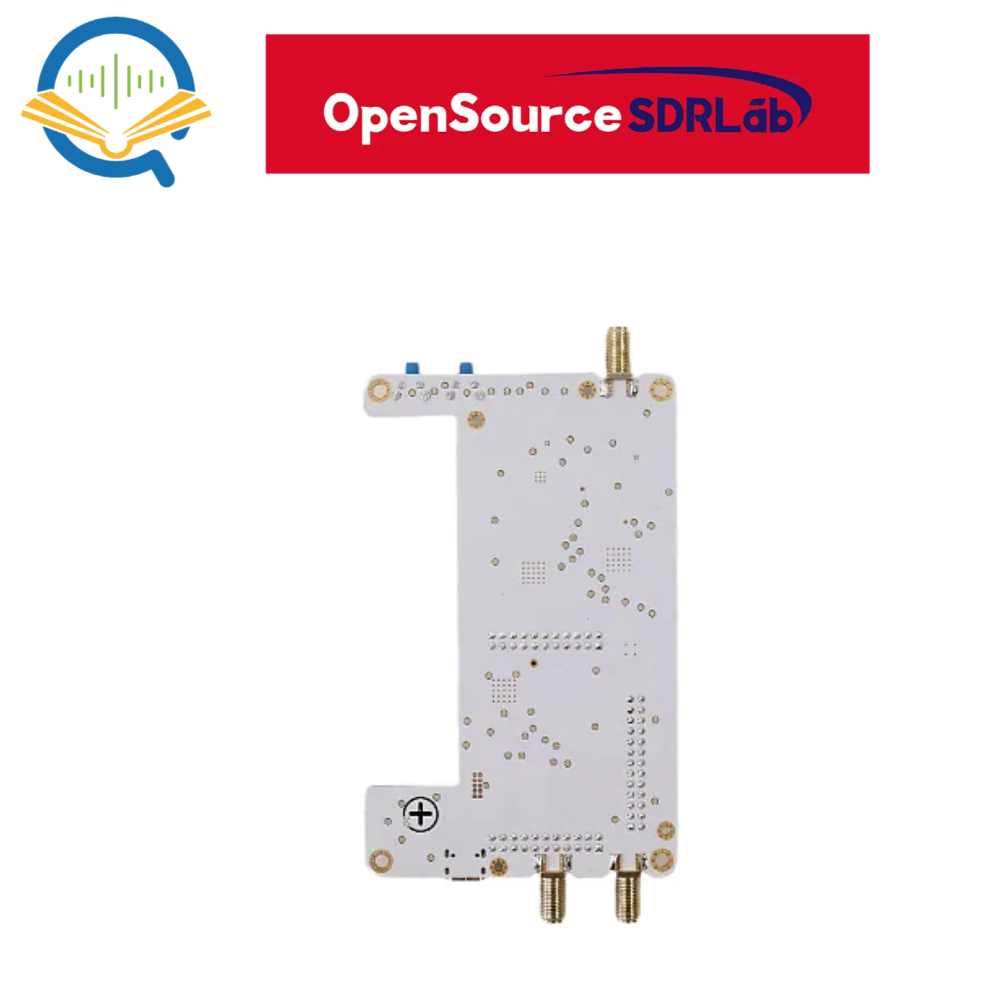

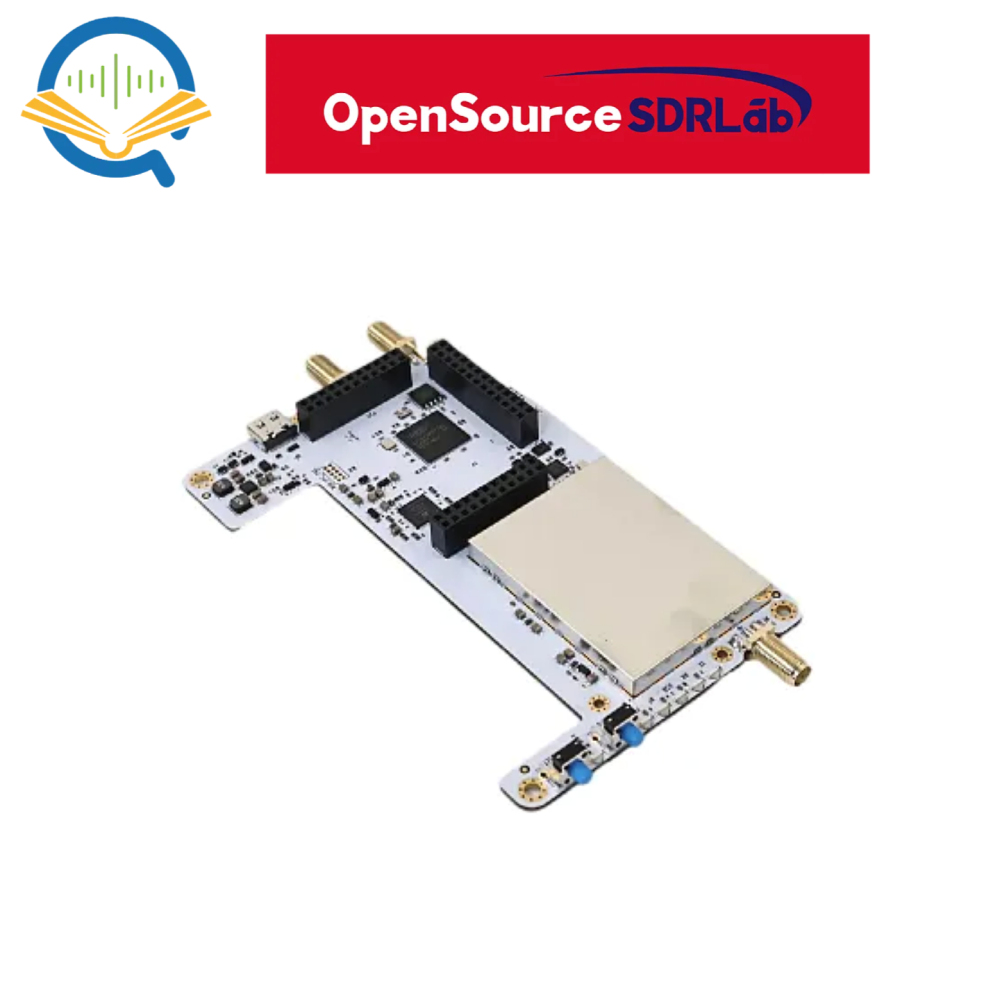

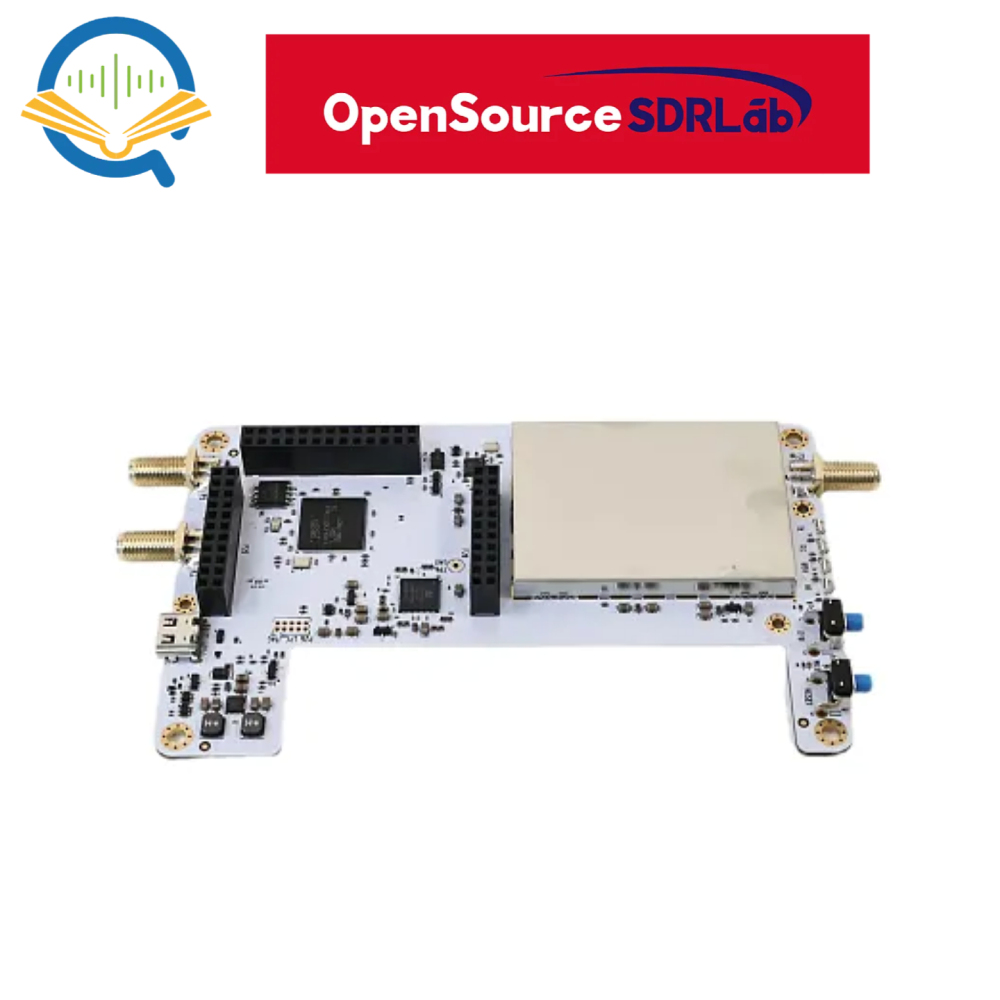

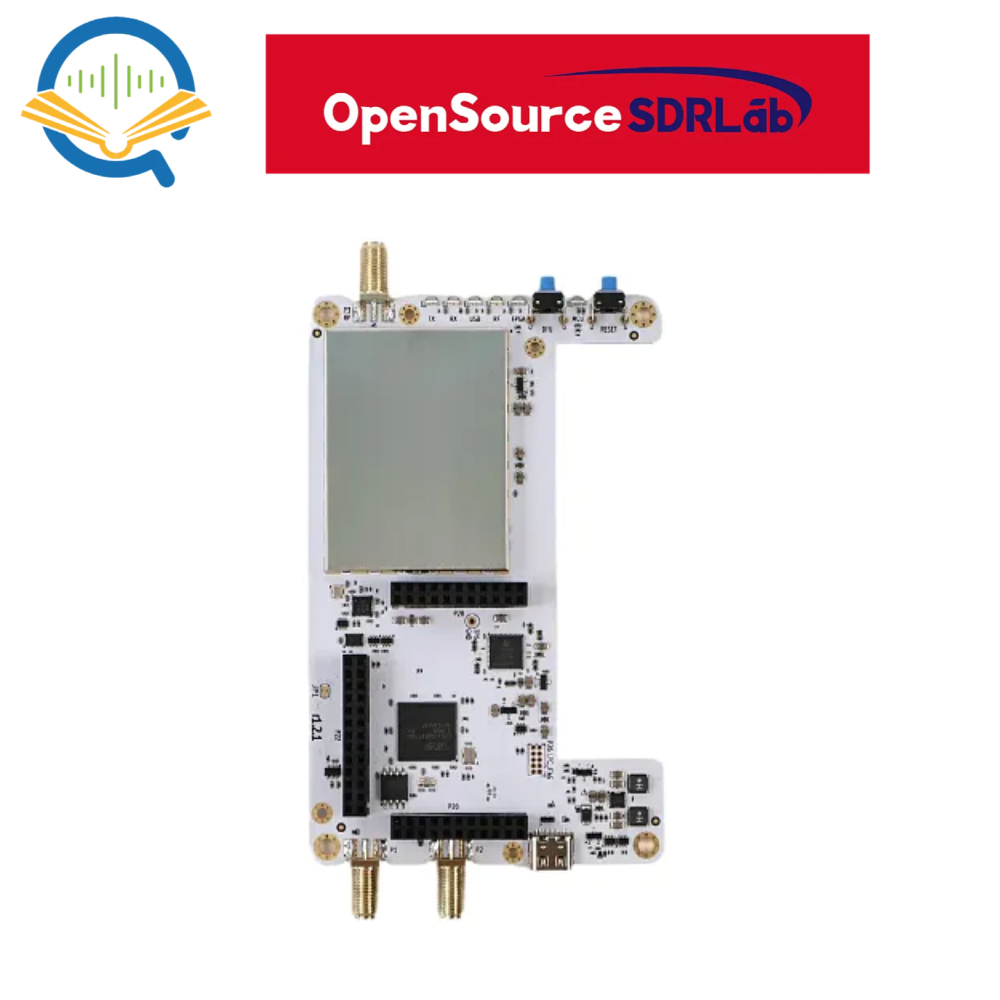

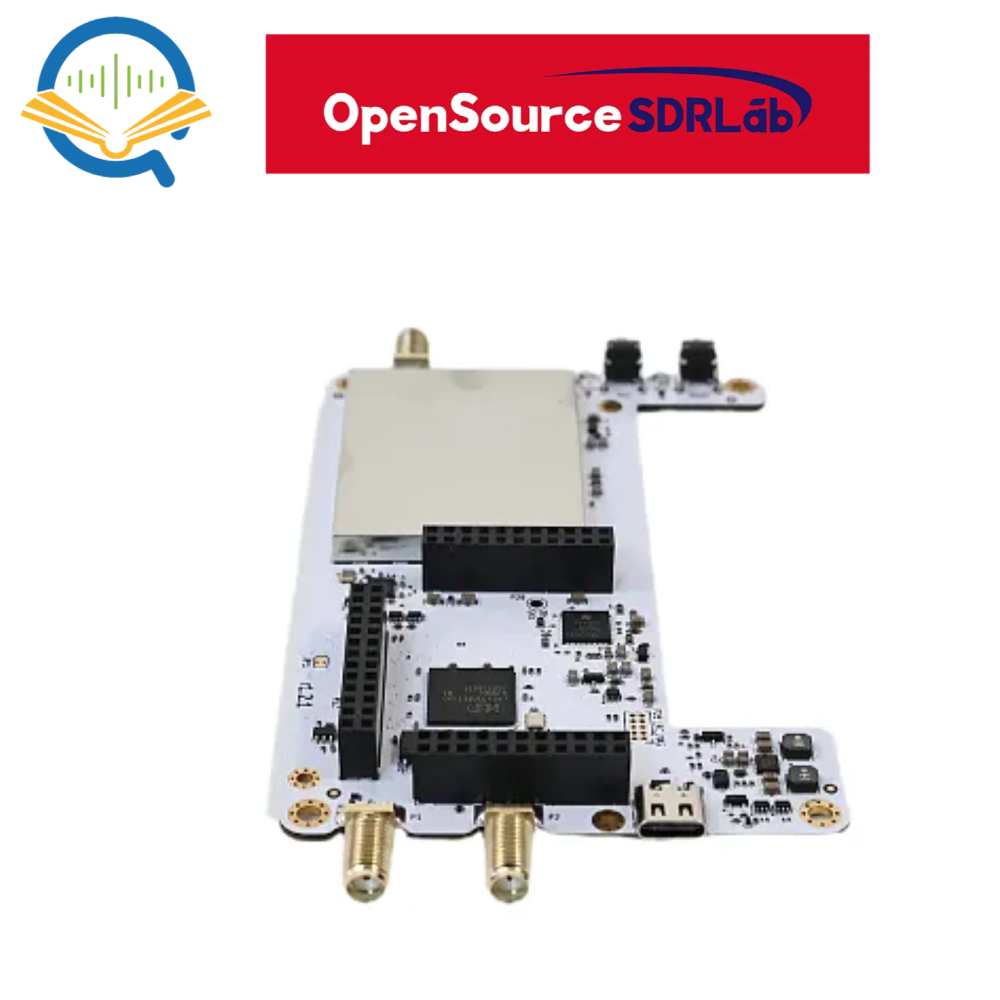

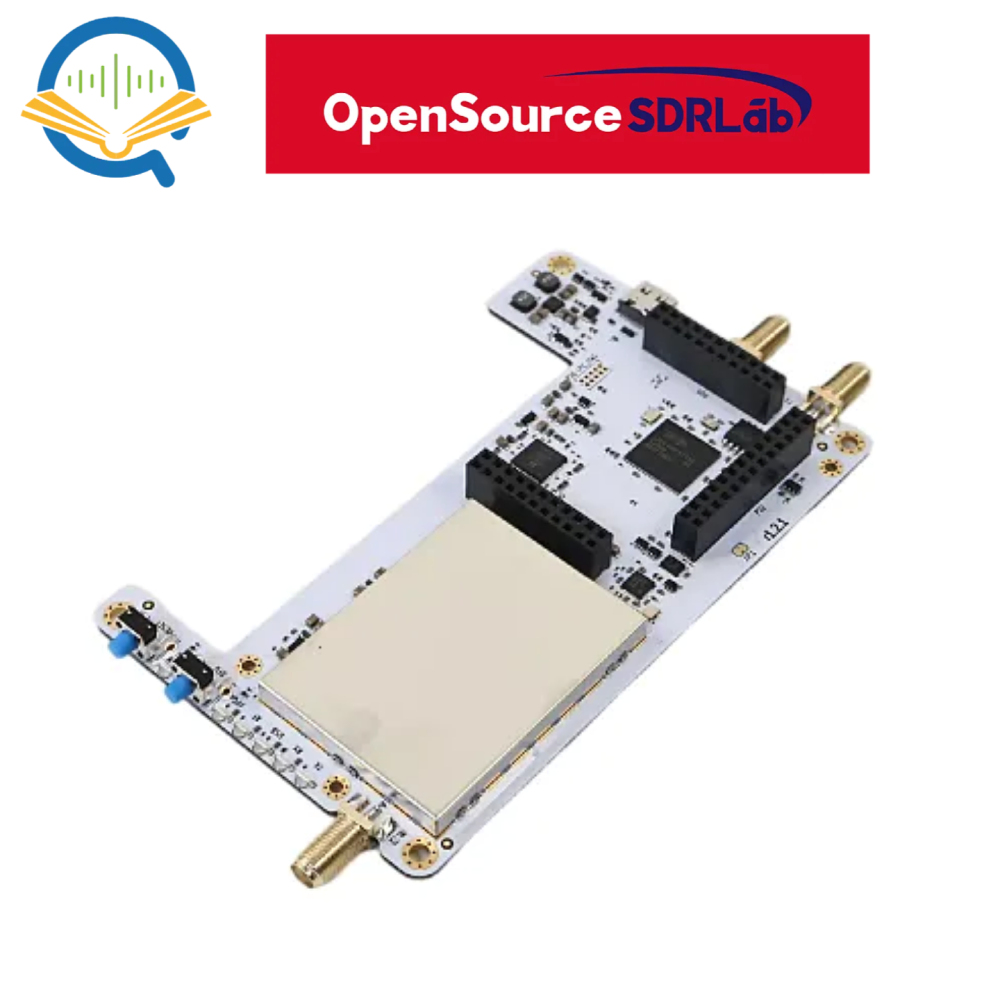

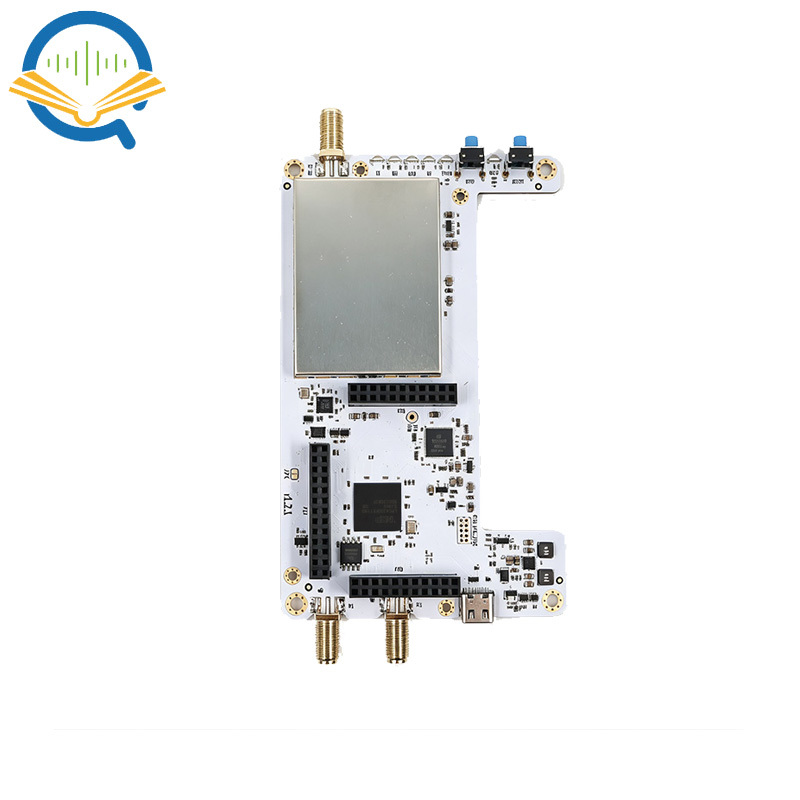

HackRF Pro is a high-performance Software Defined Radio (SDR) platform designed for transmitting and receiving radio signals from 100 kHz to 6 GHz. Built for testing, prototyping, and developing modern and next-generation wireless technologies, it offers the flexibility of open-source hardware, USB peripheral operation, and programmable stand-alone use. Fully compatible with existing HackRF One software, HackRF Pro enables a smooth upgrade path and a faster, more efficient development experience.
100 kHz to 6 GHz operating frequency
Tunable from 0 Hz to 7.1 GHz
Half-duplex transceiver
Up to 20 million samples per second
8-bit quadrature samples (8-bit I and 8-bit Q)
Compatible with GNU Radio, SDR#, and more
Software-configurable RX and TX gain and baseband filter
Software-controlled RF port power (50 mA at 3.3 V)
SMA RF connector
SMA clock input and output for synchronization and triggering
Convenient buttons for programming
Internal pin headers for expansion
High-Speed USB 2.0 with Type-C connector
USB-powered
Open source hardware
Compared to HackRF One, HackRF Pro introduces a host of new and updated features, including:
Wider operating frequency range
Improved RF performance with flatter frequency response
Modern USB Type-C connector
Built-in TCXO crystal oscillator for superior timing stability
Logic upgrade from a CPLD to a power-efficient FPGA
Elimination of the DC spike
Extended-precision mode with 16-bit samples for low sample rates (typical ENOB: 9-11)
Half-precision mode with 4-bit samples at up to 40 Msps
More RAM and flash memory for custom firmware
Installed shielding around the radio section
Trigger input and output accessible through clock connectors
Cutout in the PCB provides space for future add-ons
