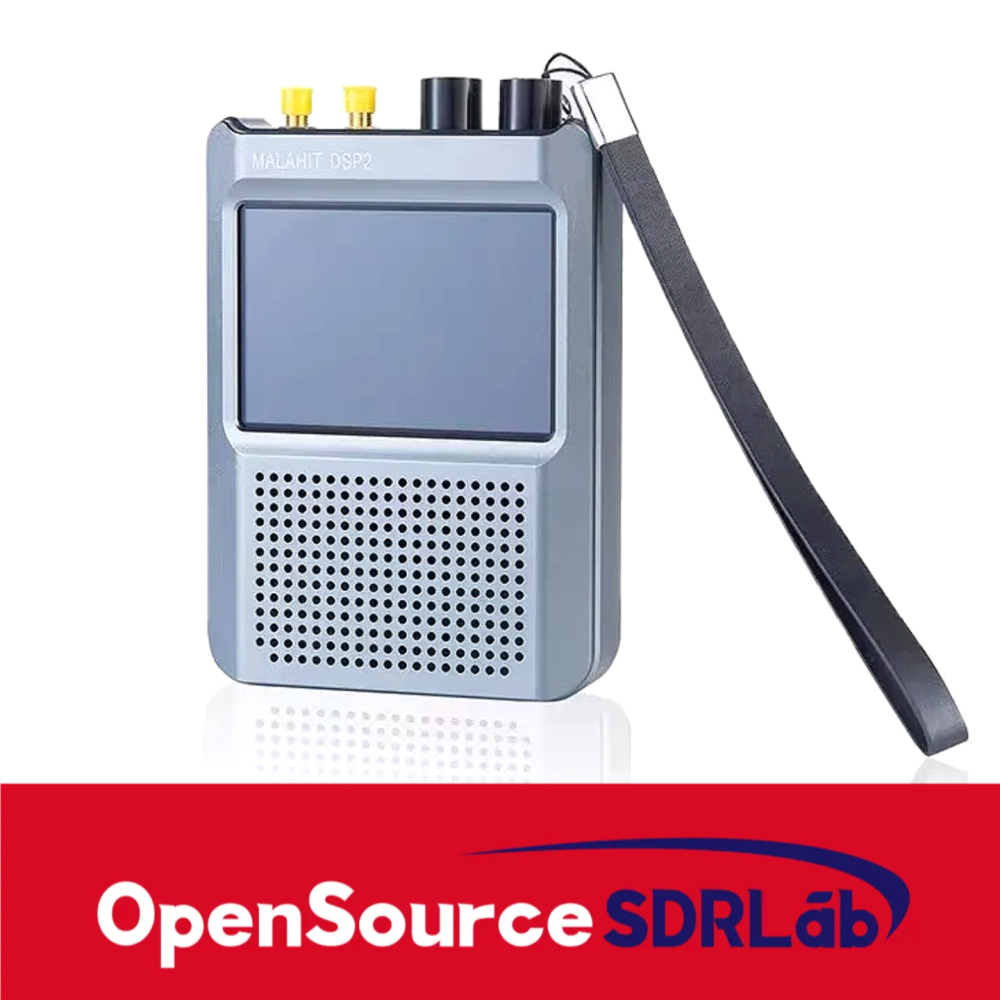

OpenSourceSDRLab DSP2 Malahit Radio SDR Malahit DSP Genuine 2.40

Product Introduction

1. The radio is built based on the SDR principle, and its functions are determined by the loaded software

2. All types of analog modulation: AM, SSB (LSB USB), CW, NFM, WFM

3. Powerful features: variable filter width, adaptive noise suppressor, value sound suppressor. Use the fully functional chip MSI001. The powerful STM32H743 with a clock frequency of 480MHz has been applied.

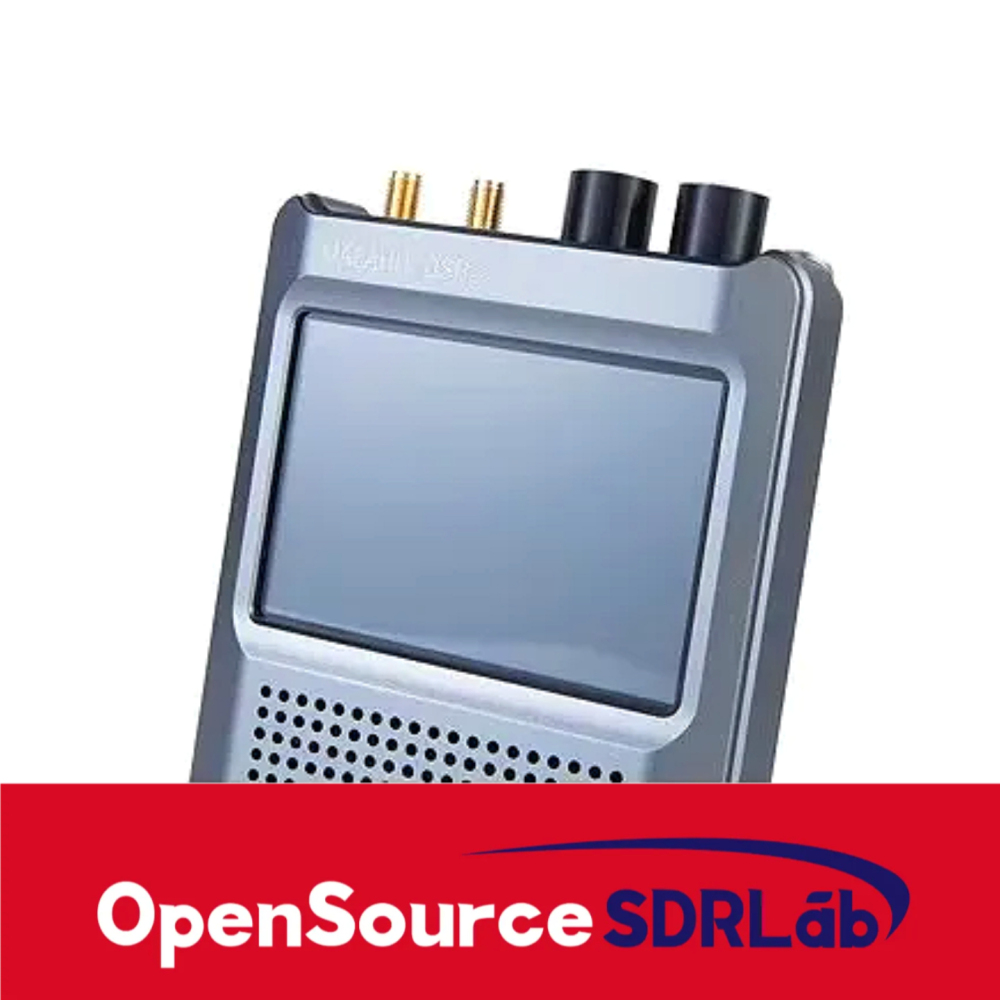

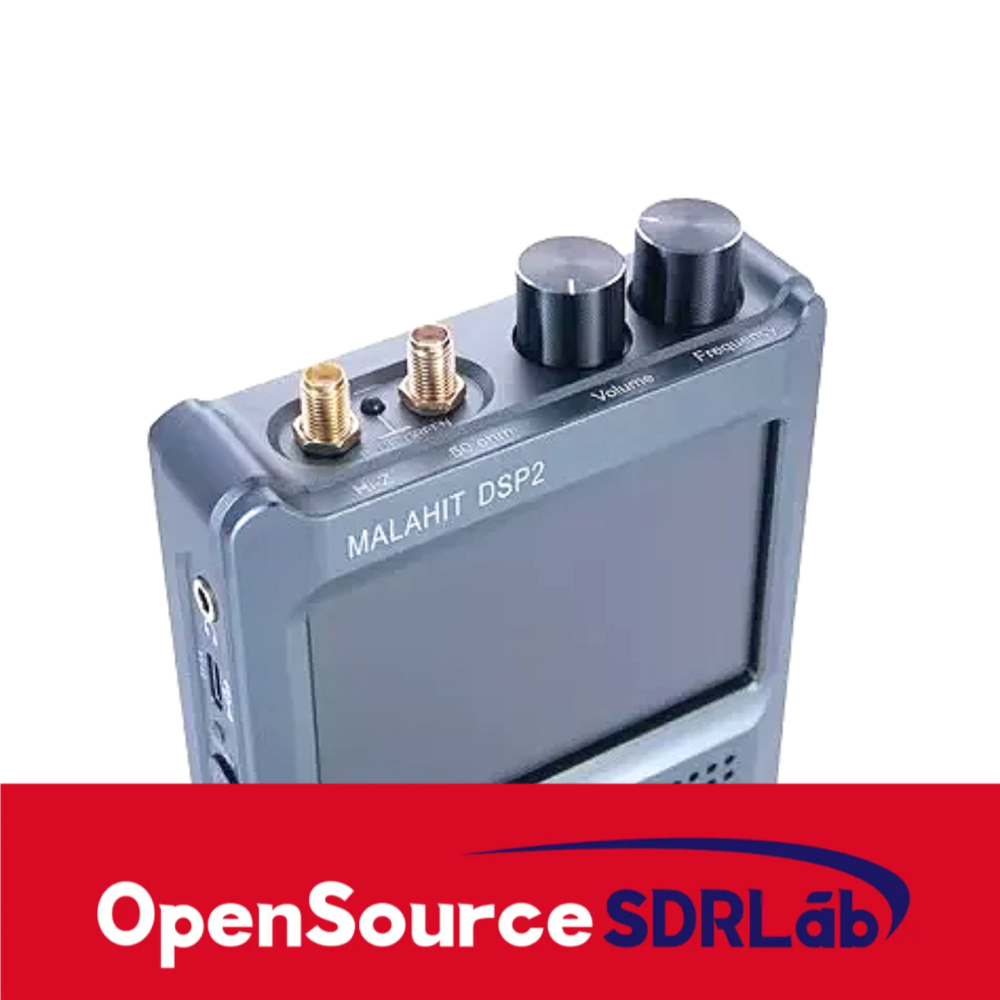

4. 3.5-inch IPS display screen with touch screen. Control 2 encoders with buttons and touch screen.

5. There is a built-in UHF.

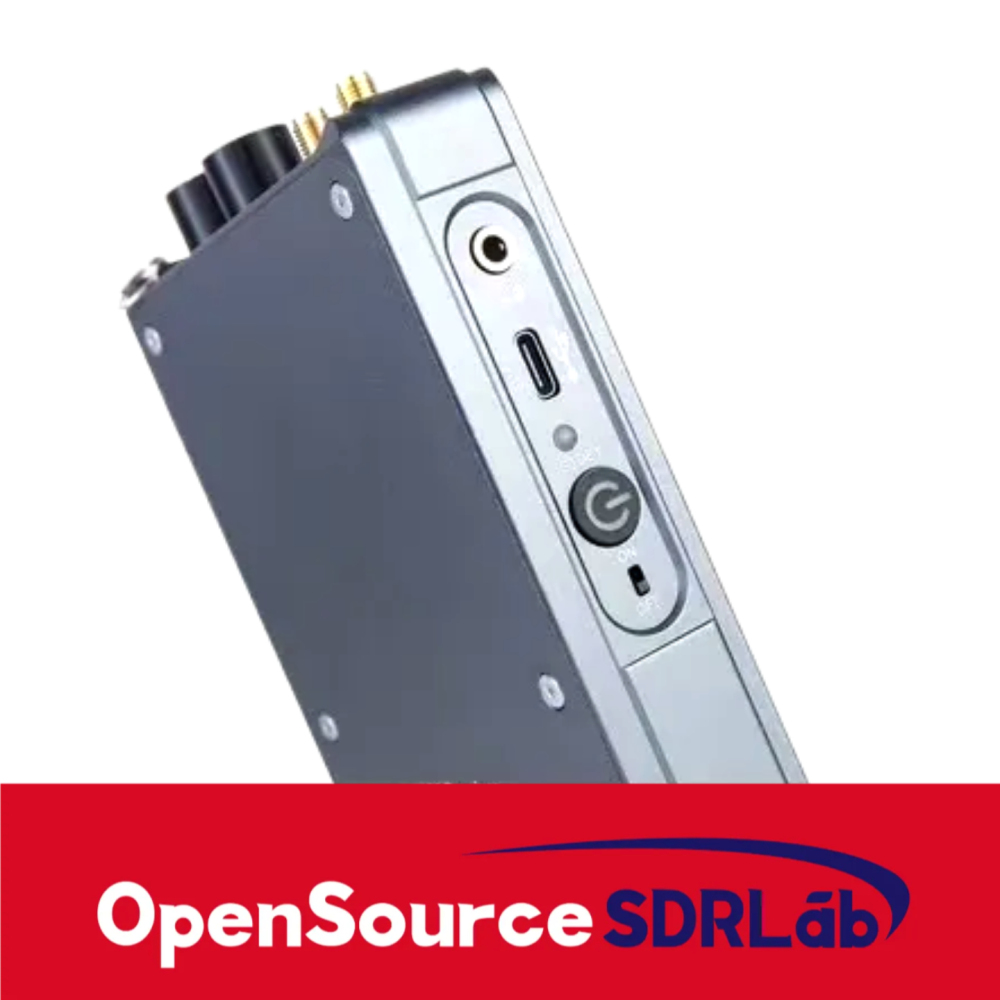

6. The power supply is provided by an external TYPE-C interface and can be charged by TYPE-C. Internal battery voltage 3.7V, capacity 5000mAH.

7. Using a temperature compensated crystal oscillator to achieve a frequency stability of up to 1ppm, dynamic up to 82db.

8. Due to the characteristics of the MSI001 chip used, the dynamic blocking range is approximately 85dB.

Product Features:

1. High sensitivity and NR noise reduction function: Malahit-DSP2 is capable of detecting weak signals and significantly improving the clarity of the listening experience through its unique NR noise reduction function.

2. Based on SDR technology: The receiver adopts SDR architecture and has rich signal processing and audio processing functions, providing excellent radio listening experience.

3. High quality front speakers: Malahit-DSP2 is equipped with high-quality front speakers for excellent sound effects, providing you with an immersive auditory experience.

4. Large capacity battery: Built in large capacity battery, supports long-term continuous listening, meets your various needs.
