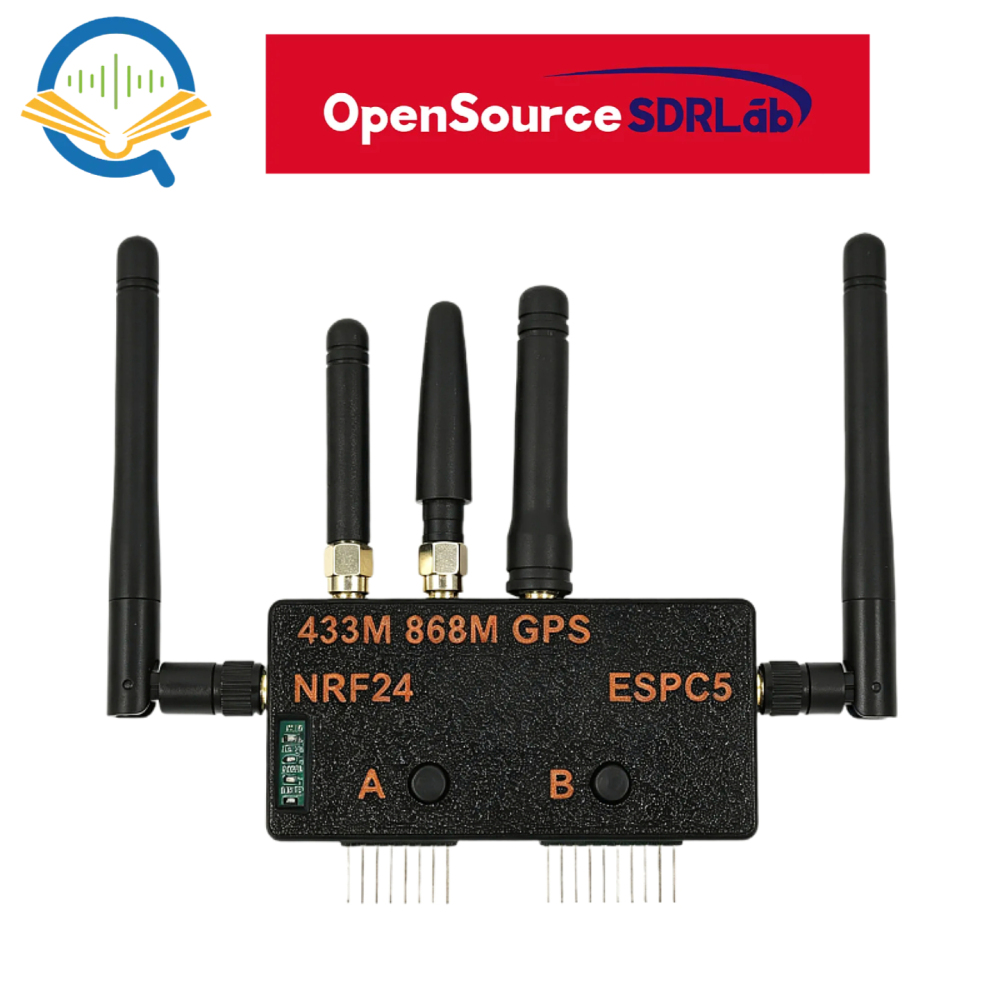

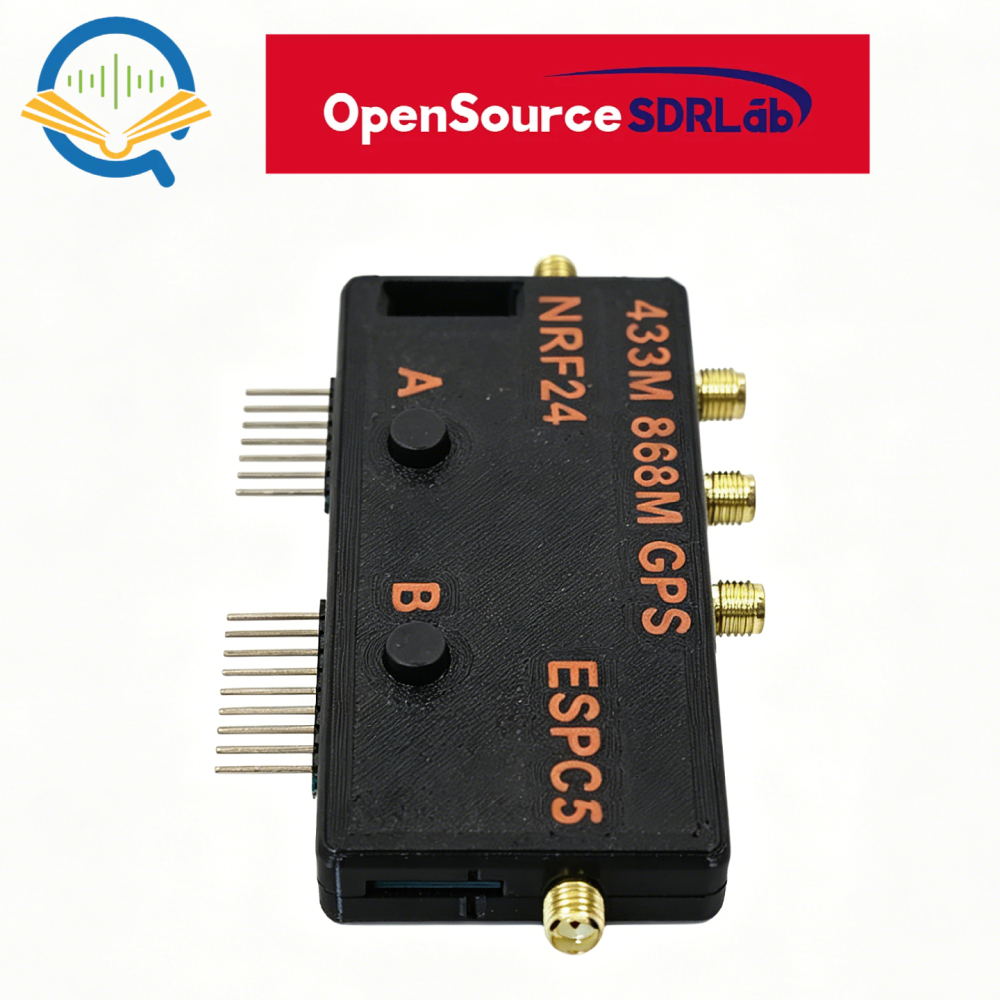

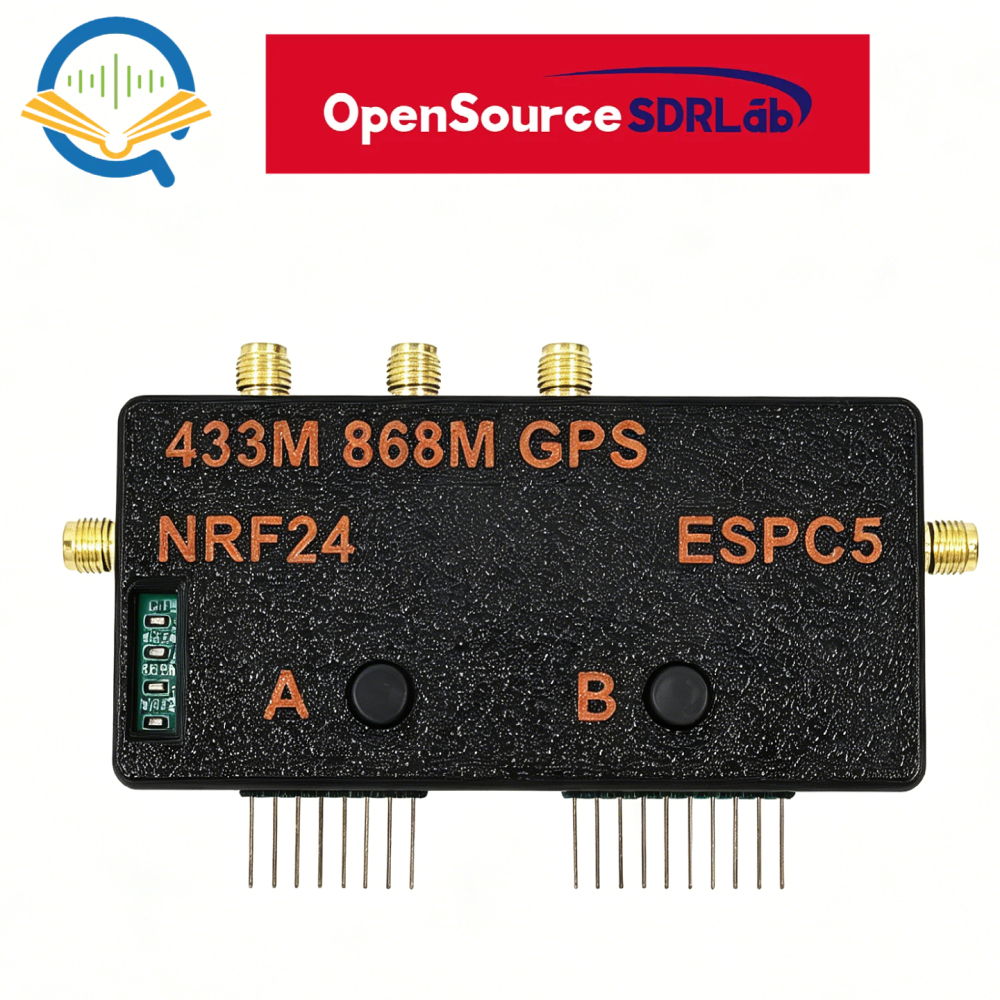

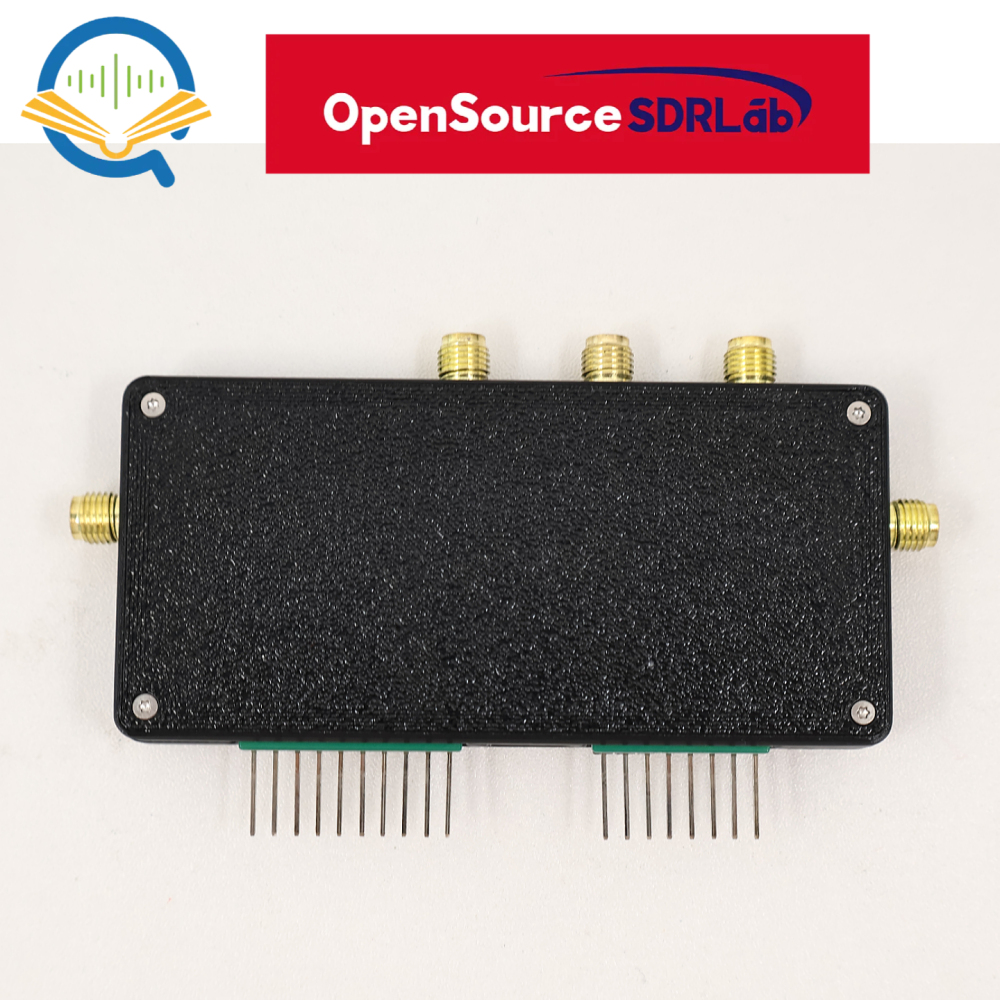

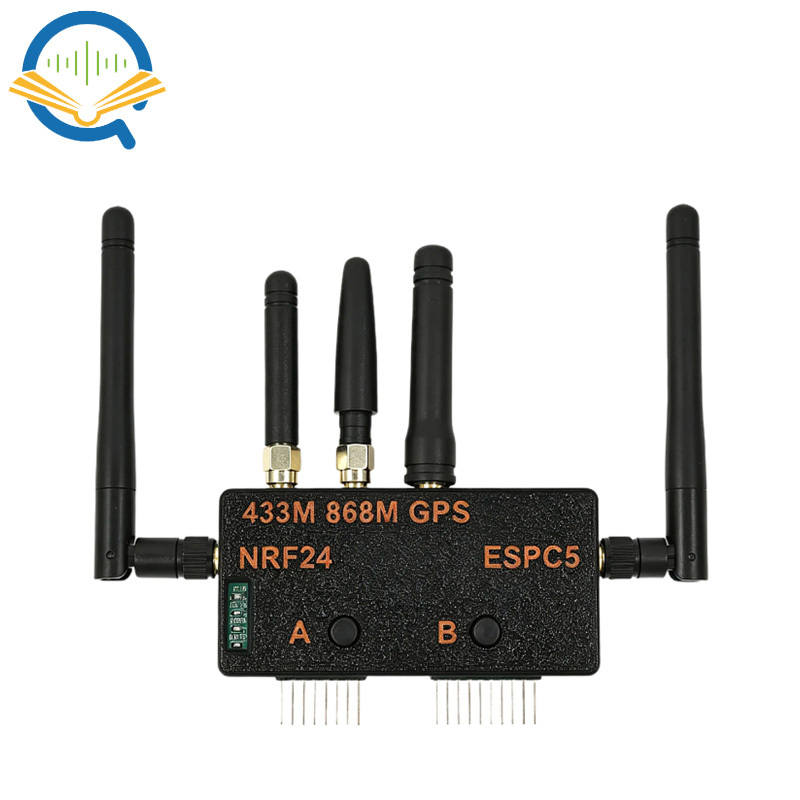

1. What is ESP32 Marauder 5G - Apex 5 Module?
Apex 5 Module is Our latest creation for Flipper Zero. The 5 is stand for 5 major functionality on board, vastly extend the capability of flipper Zero.
- ESP32-C5 running Marauder firmware, capable of handling 2.4GHz + 5GHz WiFi
- Dual Sub-GHz modules supporting 433MHz and 868MHz frequencies
- NRF24 Chipset capturing, analysing, and transmitting raw 2.4GHz packet data
- Built-in GPS.
2.Specification
Genius ESP32-C5 chipset featuring ESP32 Marauder firmware with 5 GHz WiFi support
- 8MB ram & 8MB flash version for longevity / Upgradability
- SDXC card slot for saving PCAP and log files from Marauder (optional storage)
- External antenna for improved signal performance
- PCAP and log files can also be saved directly to the Flipper SD card
- USB-C port and Boost Bottom for upgrading firmware purpose (right-side button “B”)
- Batch 1 of the APEX 5 module does not support Marauder WarDrive. If WarDrive is essential for your application, please wait for Batch 2.
Dual Sub-GHz chipset with individual LED indicators
- One Sub-GHz chipset dedicated to 433 MHz
- One Sub-GHz chipset dedicated to 868 MHz
- 1 bottom for switching between 433 and 868mhz Frequency (Left bottom / A)
- 2 LEDs to indicate which frequency is currently active
- Dual antennas for optimal signal performance
nRF24 chipset
nRF24 chipset
- Controlled via the Flipper Zero app (Channel Scan, MouseJacker, Scan, Sniffer, and other scripts)
- Led indicator
- External antenna
GPS module with external antenna
Fully assembled 3D-printed enclosure (pre-installed)
