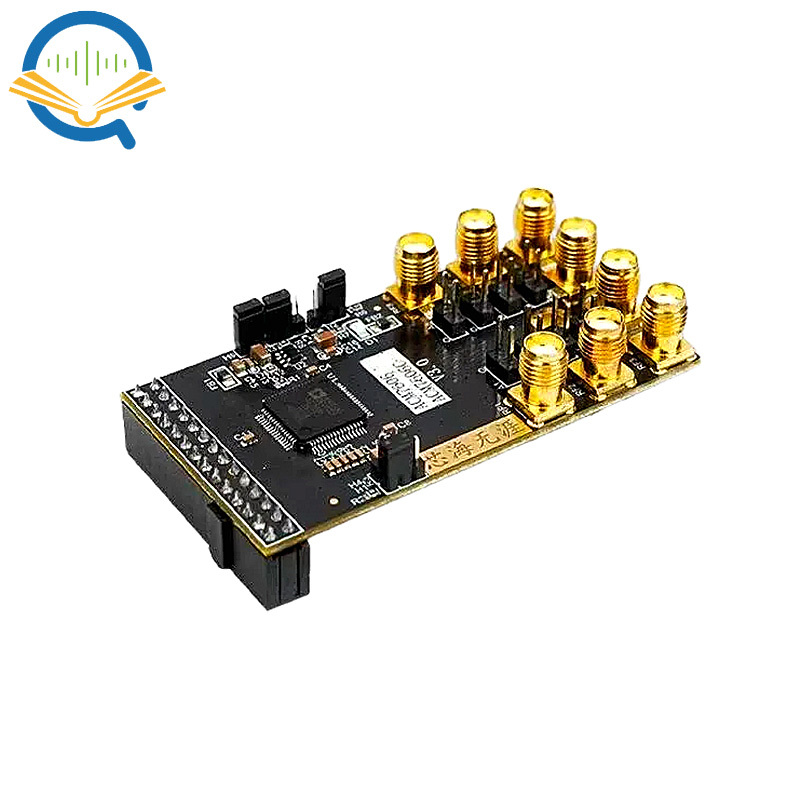

Feature Introduction
The module is designed to work with a single power supply of 5V, with an input voltage range of -5V~5V.

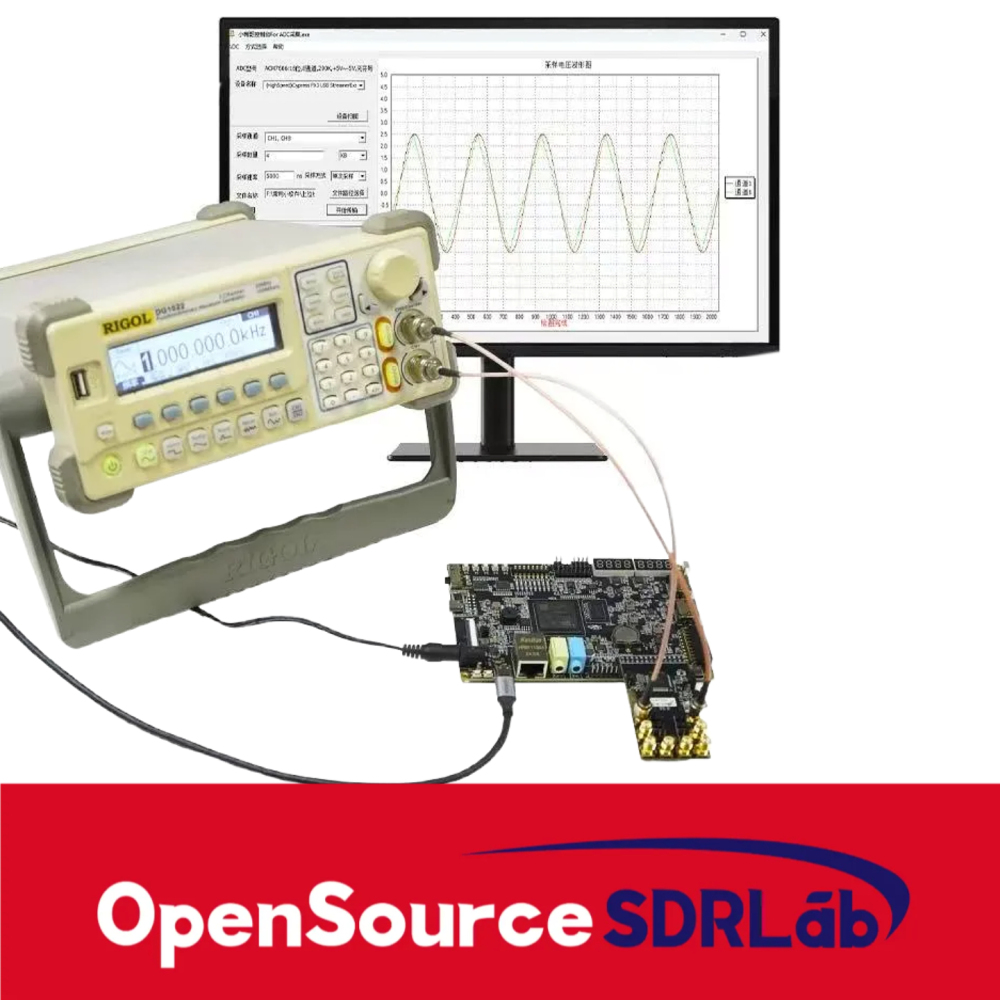

The module settings use the internal reference source of AD7606 chip as the working reference voltage of the chip, and reserve an external reference source interface. According to users who specialize in ADC performance testing, the error of thousands of sampling results in this module is less than 1mV, while the theoretical LSB of 5VRange is around 150uV. Therefore, the performance is extremely excellent.
Special statement:
In the parallel software mode of AD7606C, jumper H5 must be selected as non short circuited, and the convstA and convstB pins are controlled separately. In other modes, jumper H5 of AD7606C is selected as short circuited.
