1. Adopting 2RT and supporting MIMO;
2. Provide JTAG for more convenient and flexible development
3. The memory adopts DDR3 * 2, with a total of 1GByte of memory
4. Support the reference design porting of gigabit Ethernet ports and ZE+FMCOMS3
5.ZYNO-XC7Z020， Enhanced logical capacity, larger logical design
6. Supports higher precision clock, 0.5ppm TCXO
7. Support extended IO and enrich responsible custom applications

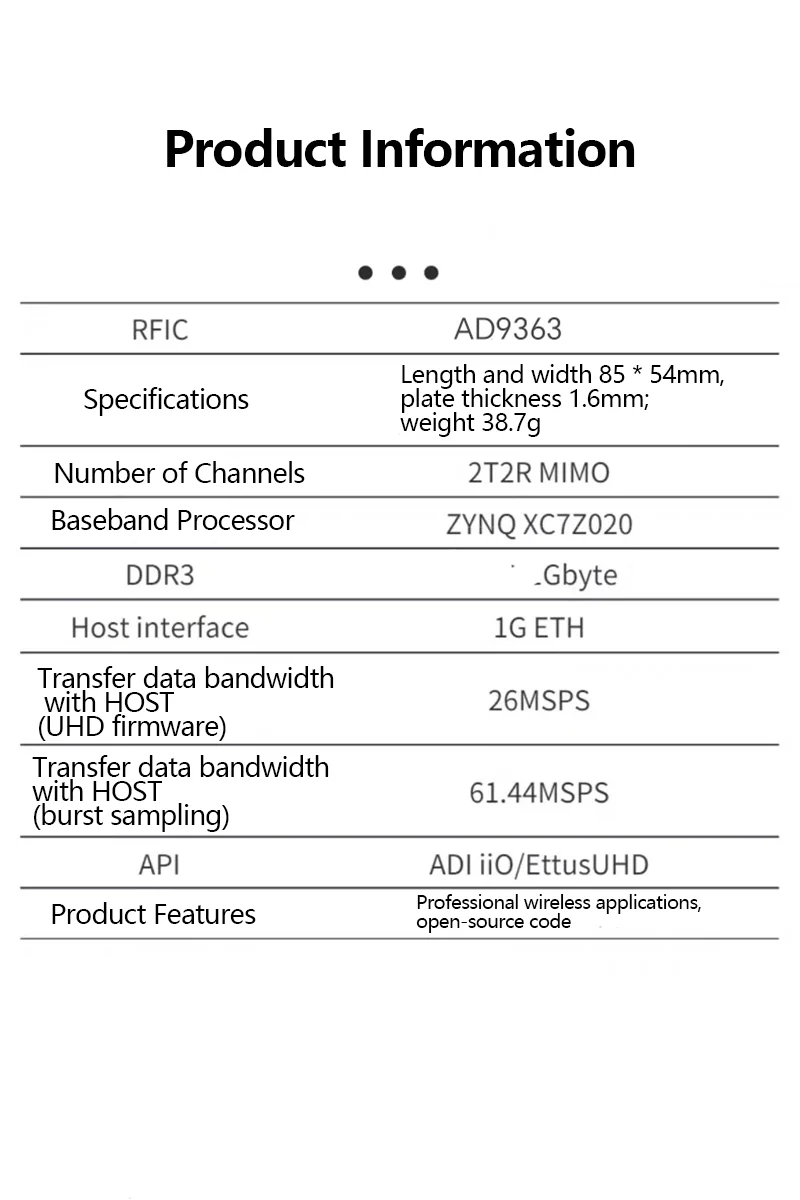

Product Parameters

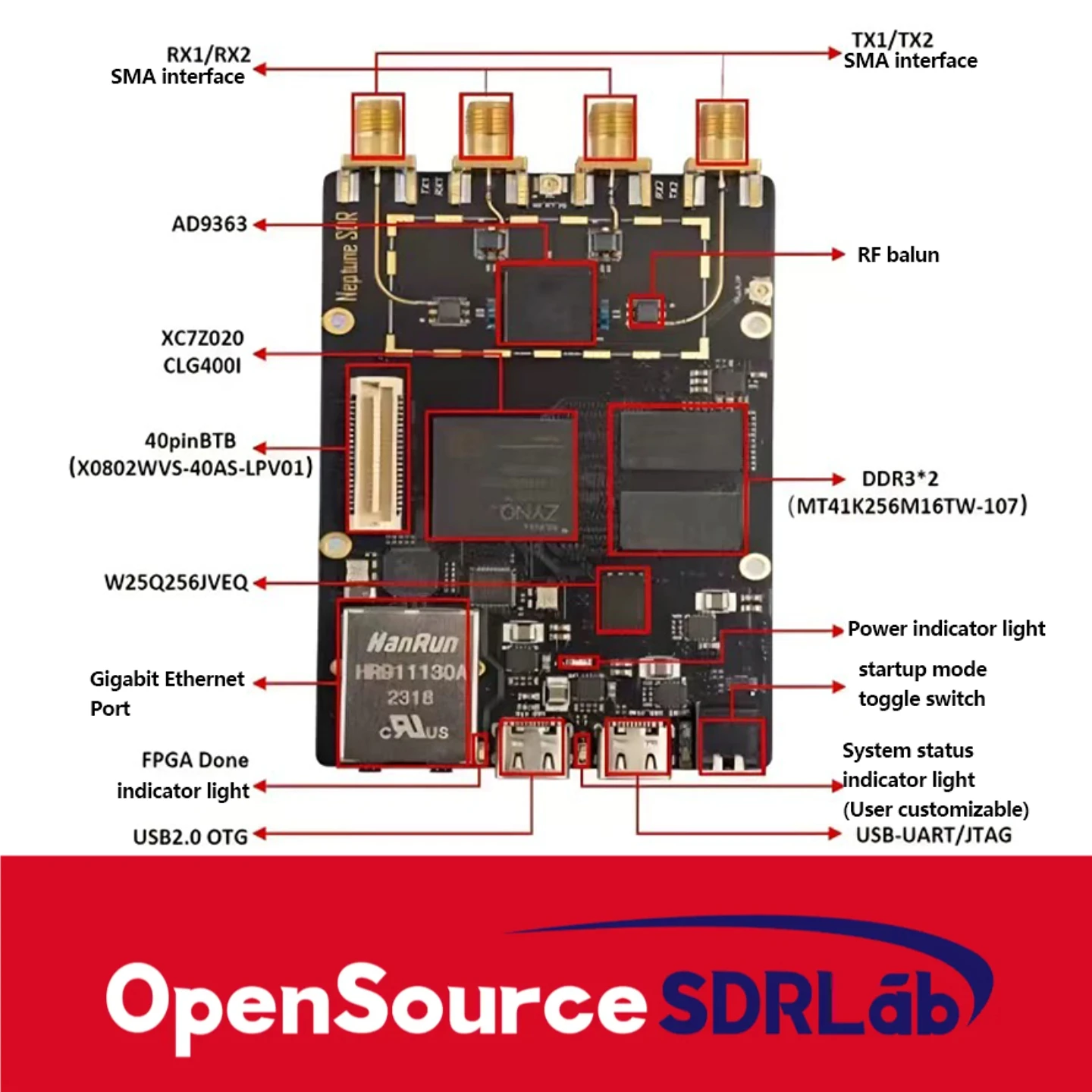

1.RF
RF IC:AD9363
Frequency range: 380MHz-3.8GHz (AD9363)
RF channel: 2RT, 2x2 MIMO
Signal bandwidth: 200KHz-20MHz (AD9363)

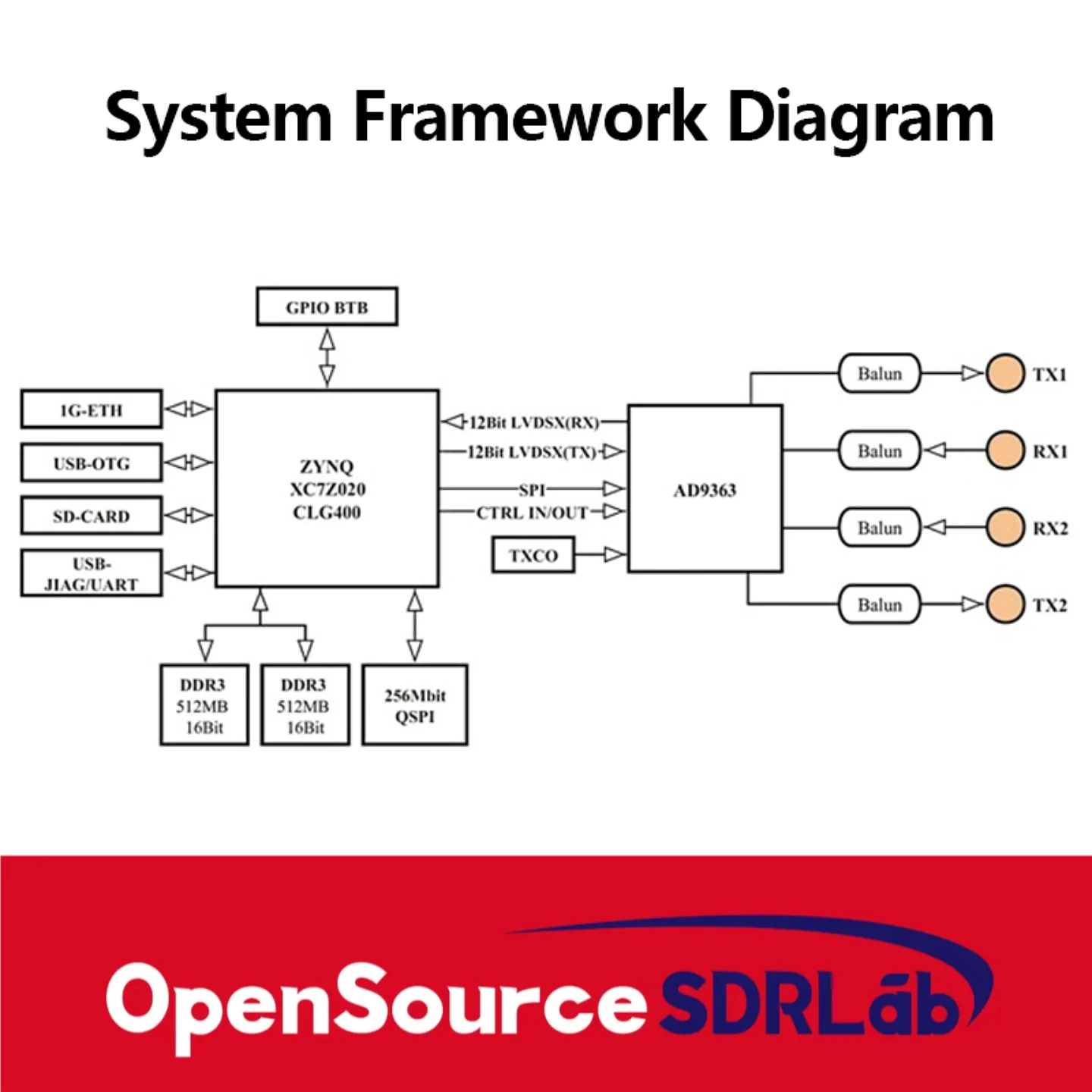

2.Data processing unit
Xilinx ZYNQ SoC: XC7Z020CLG400i
Dual core Cortex-A9
Main frequency 766MHz
85k logical unit
DDR3 RAM: 1GByet
QSPI flash: 32MB
3. Interface
Gigabit Ethernet
USB2.0 OTG
SD Card

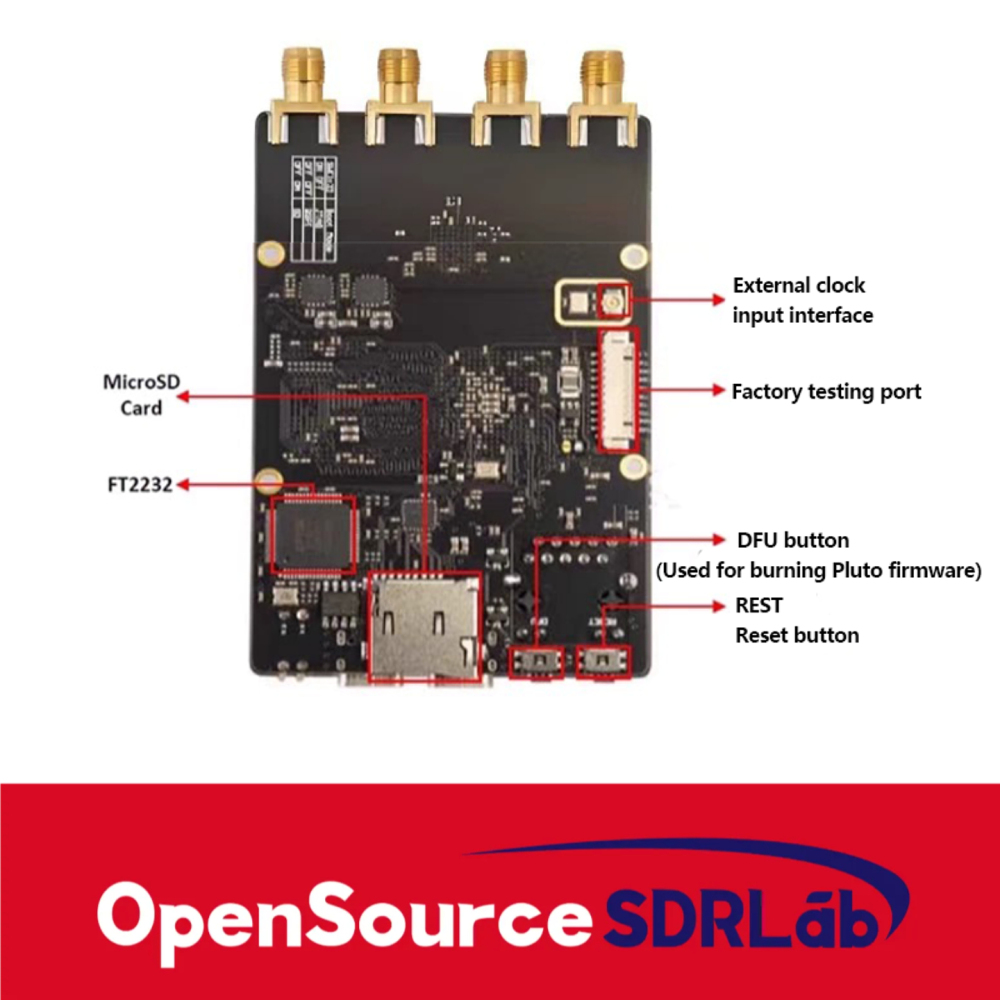

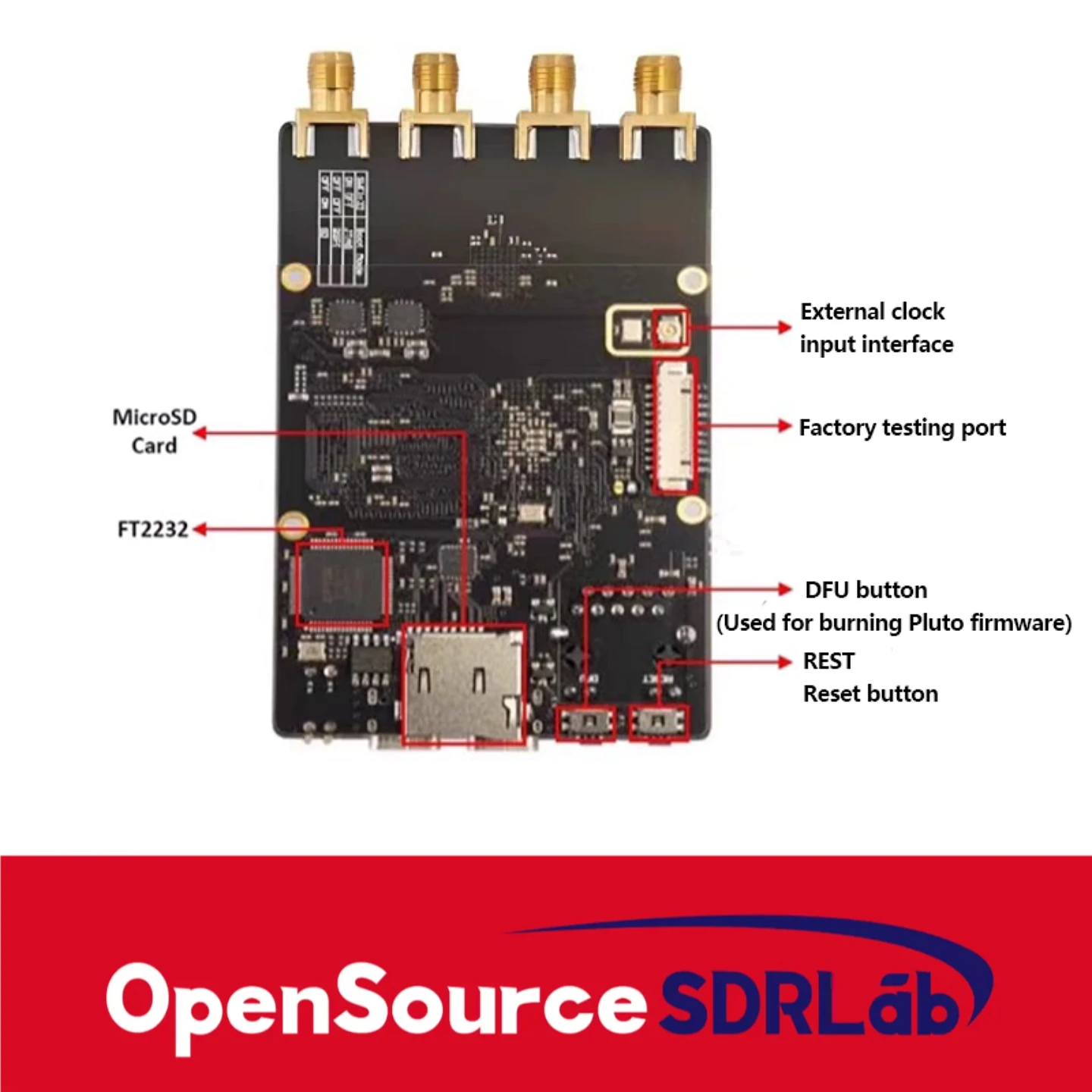

Integrated USB-JAG, USB-UART
Support for expansion ports
4. Clock & Size & power supply
TCXO:0.5ppm
Length and width 85 * 54mm, plate thickness 1.6mm, weight 38.7g
USB power supply
