Product Introduction
P200SDR is based on the GitHub open source project m2SDR, and has made slight adjustments to market chip supply and compatibility with other frameworks. The main clock has been changed to TCXO, the XC7A200T-3 level has been changed to XC7A200T-2 level, and the order of PCIe lanes has been adjusted. This SDR board is more suitable for professional developers
The firmware and software of LiteX_M2SDR are still under continuous development, and there are still many bugs. The manufacturer can guarantee that the hardware itself has no known defects and has conducted sufficient testing on all hardware functions.
Modifications have been made to the original project, and the configuration needs to be modified during the compilation of FPGA engineering

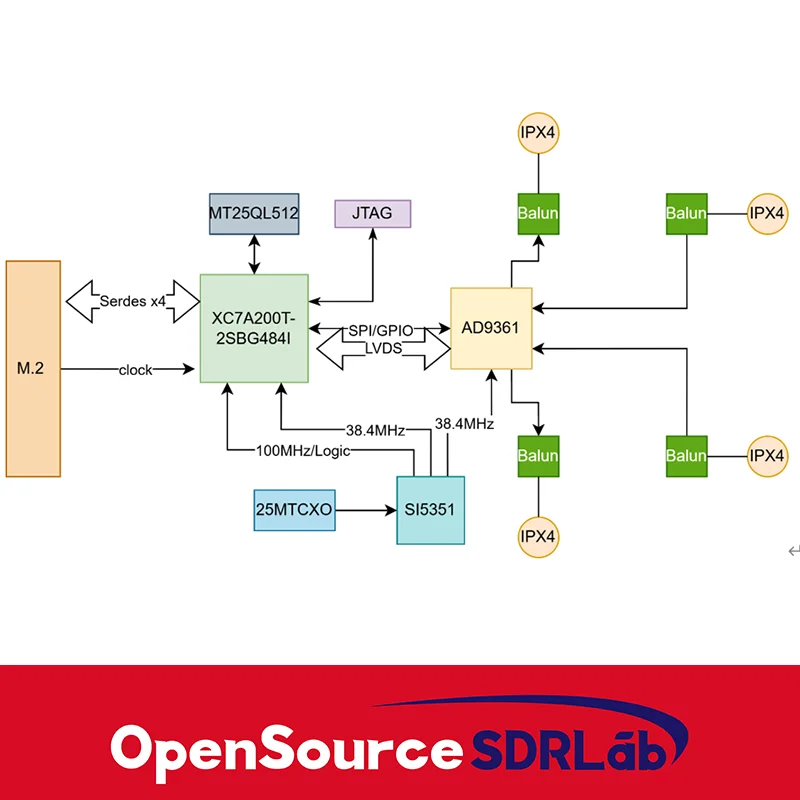

Board composition

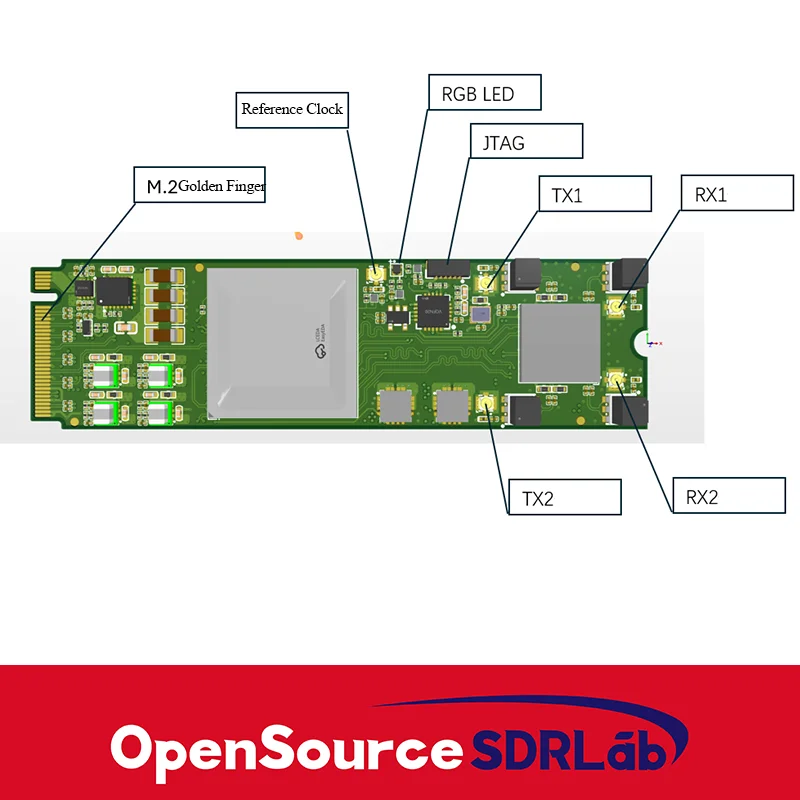

The board is of standard 2280 size, with a maximum interface size of PCIe 2.0x4lane. The clock, TX, and RX use IPX4 connectors. JTAG is a 0.6Pitch * 6 miniature connector, and a JTAG adapter cable is provided with the package.
Product Details Display
