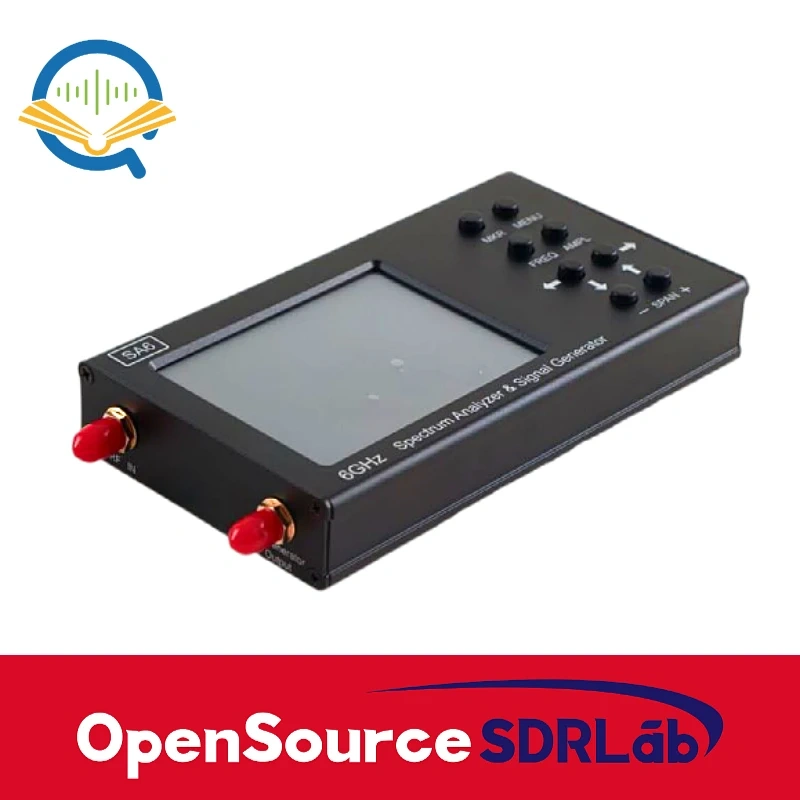

SA6 is a simple portable spectrum analyzer and signal range, designed to display the signal spectrum in the frequency range of 35 to 6200 MHz.
The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
Another important feature is the additional function of the tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.
SA6 is mainly used for on-site operation. The equipment is durable, light in weight and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work.
For example, you can use the device to do the following:

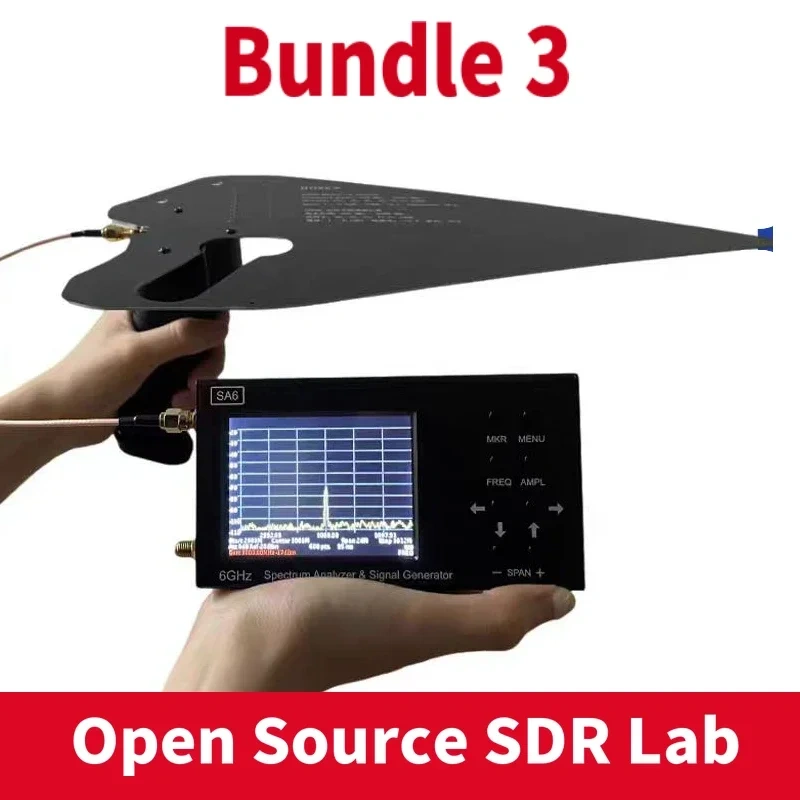

Place the external antenna on the base station
Quick analysis of the RF environment
Check the correct operation of the relay cell
Repair and adjustment of repeaters, generators, filters, etc.
Measure SWR when using an external directional coupler.
The device is controlled by one of the following two methods:
Through the buttons and touch screen on the device.

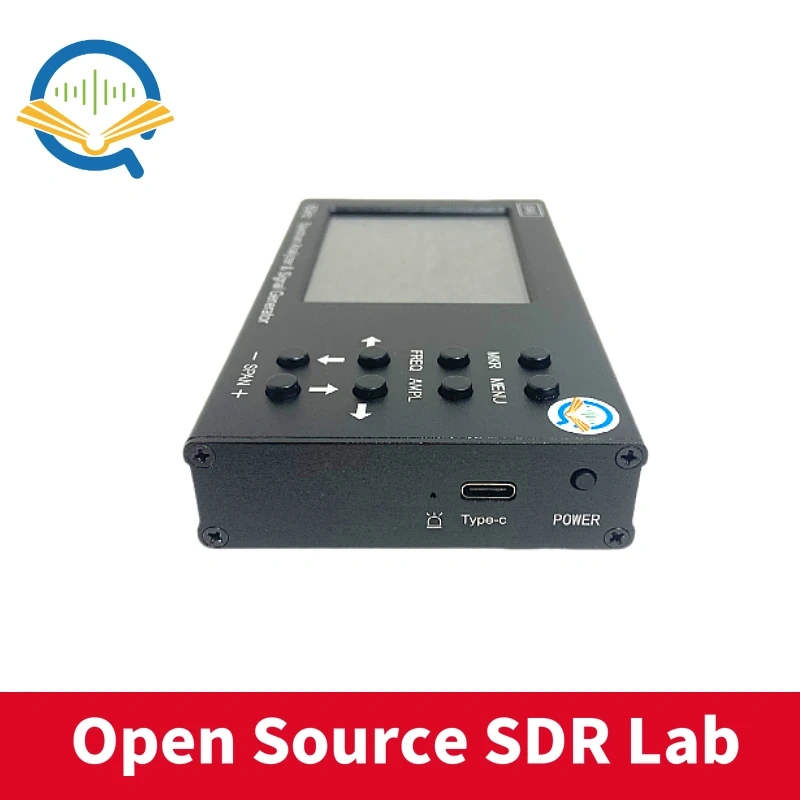

The data between the analyzer and the PC is transferred via or USB cable.

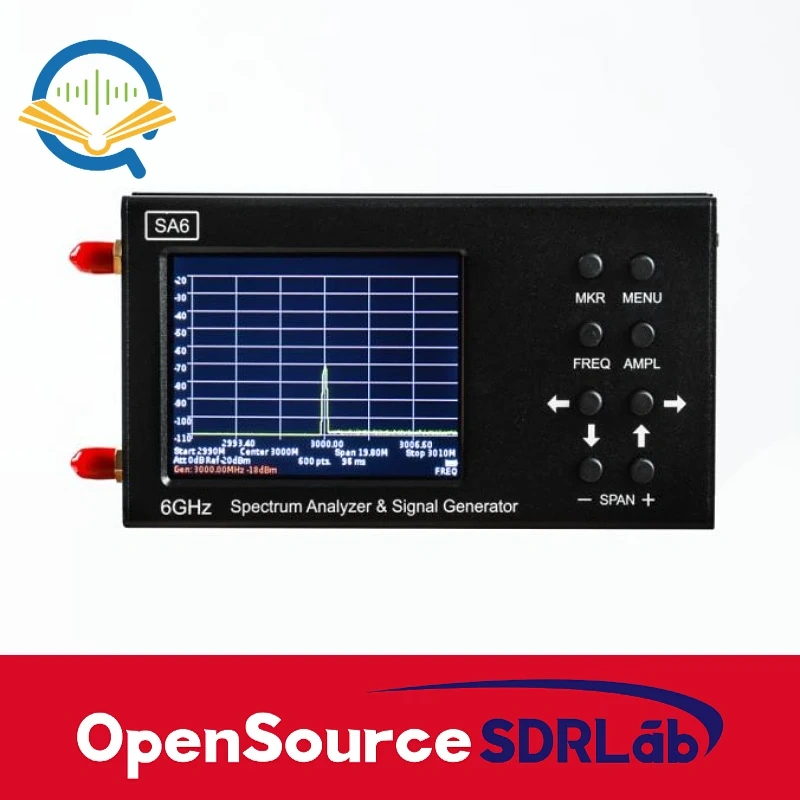

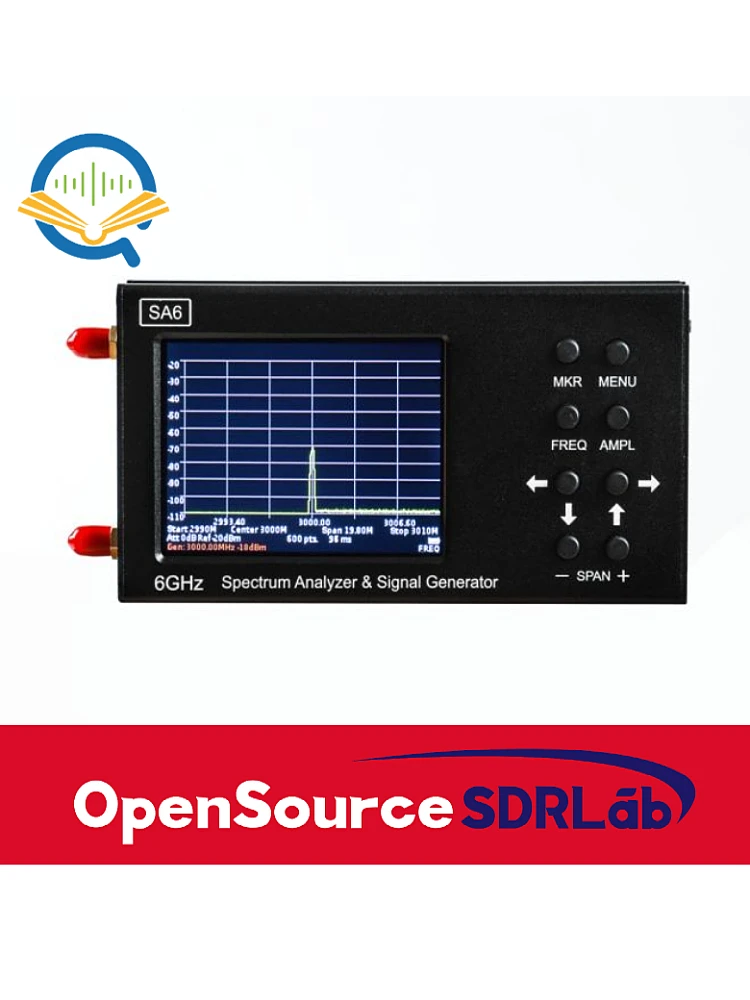

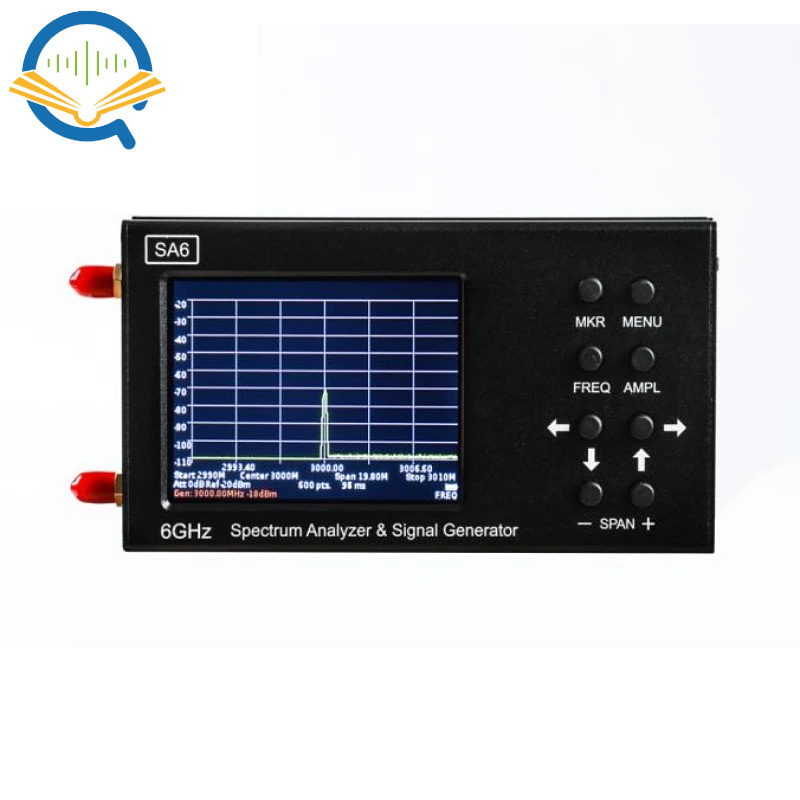

All measurement data are displayed on the screen of the device or PC in real time.
Material:Metal + plastic
colour:Black

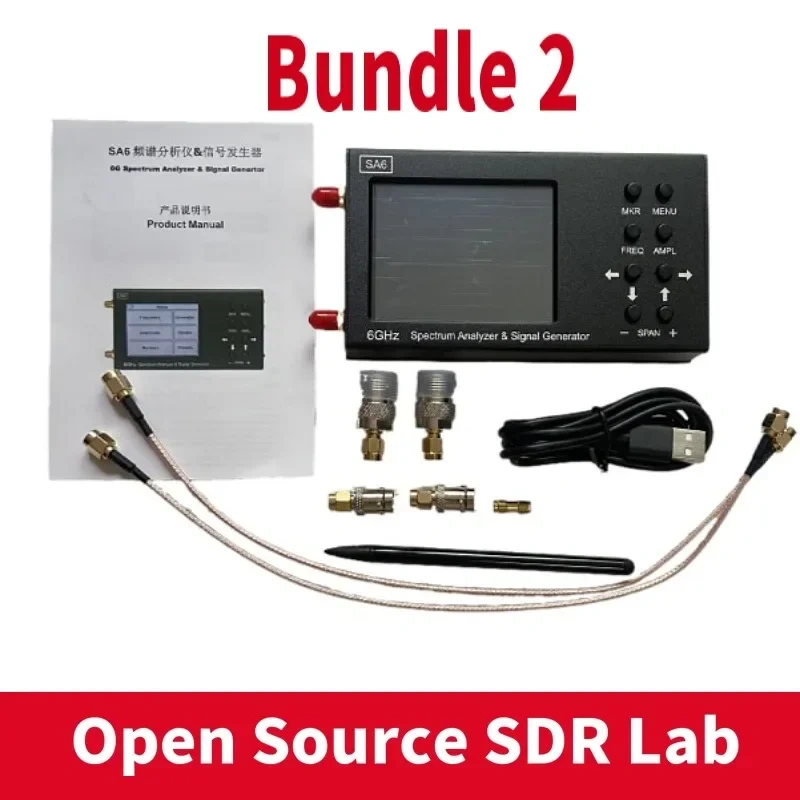

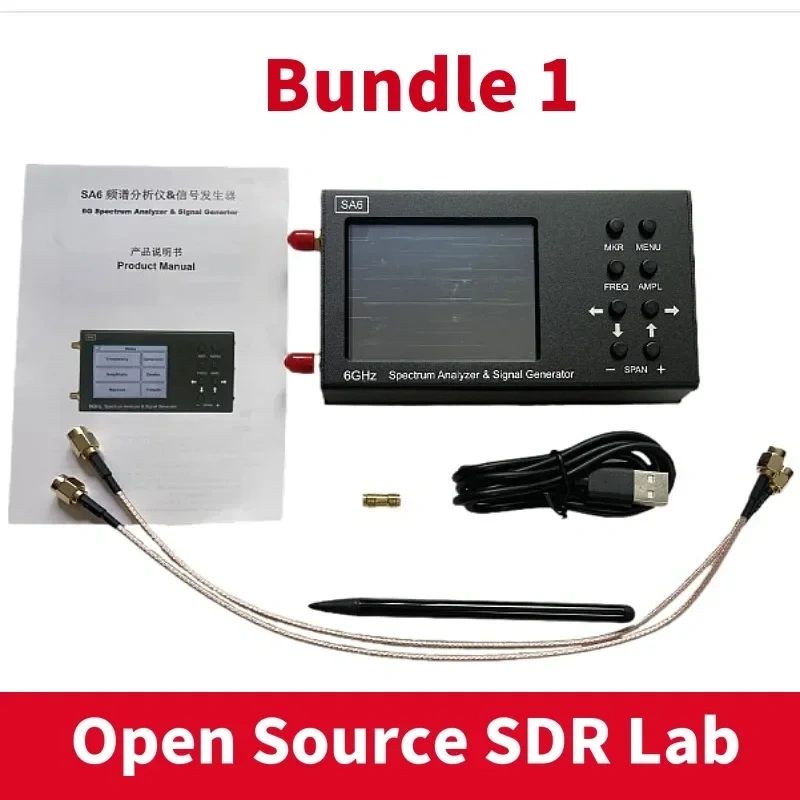

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
