- Can receive FM stereo, AM, long wave, short wave, shortwave single sideband (SSB) and aeronautical communication signal band signal, high sensitivity, good selectivity, beautiful sound, easy operation
- FM reception coverage 76-108MHz range, can receive Chinese, Western and Japanese FM radio frequencies, but also to listen to some of the domestic campus radio and TV audio
- Shortwave single sideband (SSB) divided upper sideband (USB) and lower sideband (LSB), independent reception
- Ability AM synchronous detection is applied, the second inverter technology, which greatly improve the reception sensitivity, selectivity and anti-mirror, adjacent channel interference
- Features FM / SW external antenna jack, and high / medium / low sensitivity control switch 3 files, facilitates remote receiver (DX)
- Six tuning modes: manual search radio frequency (VF), direct digital frequency input, manual search stored radio (VM), direct digital input stored radio address, the browser automatically search for radio frequency and radio frequency stored
- Can be manual, semi-automatic (ATS) to store up to 2000 search for radio frequencies. Of which 800 are stored by the band (FM / AM / long wave / Air Band each store 100, HF / SSB each deposit 200), and the remaining 1200 frequencies can be arbitrarily categorized under 12 pages (12 x 100 )
- High sensitivity and high quality speakers, sound good; with high / bass control switch, listen to different programs to meet the needs of timbre; audible FM stereo radio with headphones
- Friendly interface, easy to operate, with a very useful multi-function digital adjustment knob, can be used to set the time, adjust the frequency, select the memory page and address
- Dual regular boot function, the boot can listen to the stored radio frequency
- Intelligent switch: You can set the power to 120 minutes after the automatic shutdown can also cancel the automatic shutdown
- Use Section 4 R6 (on the 5th) battery-powered; the machine is with intelligent charging function

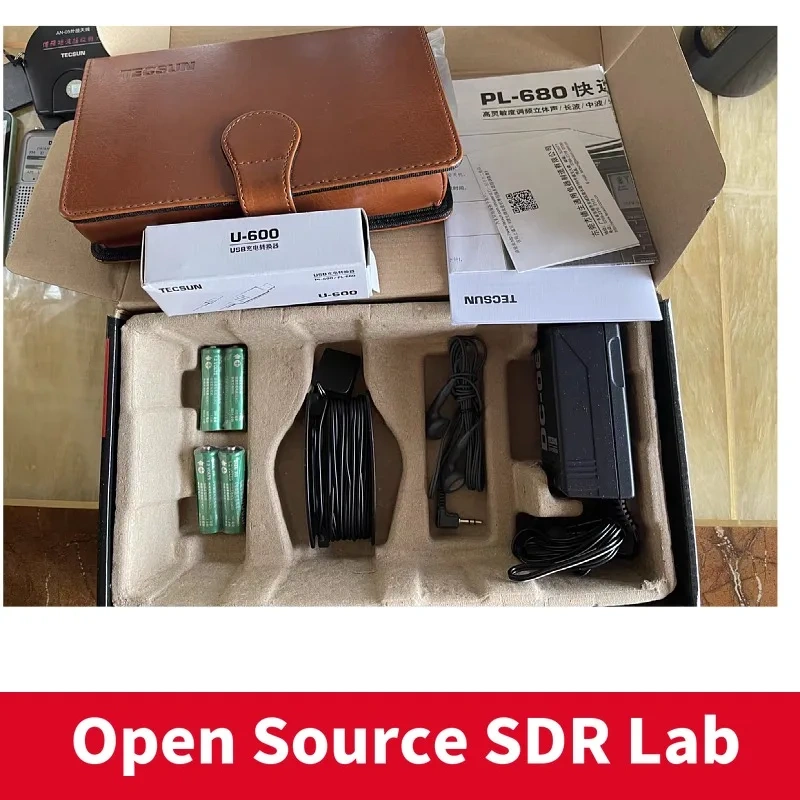

- Comes with dedicated power adapter, external antenna, nickel metal hydride rechargeable battery, stereo headset, protective sleeve
Specifications:
-----------------------------------------------------------------------
- Frequency Modulation (FM):76-108MHz; smart step 0.01MHz/0.1MHz
- frequency coverage:
- Standard :87-108MHz (for the exception of Japan, all countries other than Russia)
- Germany :87.5-108MHz (German FTZ standards, set to display 88-108MHz)
- Japan :76-108MHz (including the domestic part of the campus radio and TV audio channels 4-5)
AM (MW):
*522-1620kHz; smart step 1kHz/9kHz (for Asia, Africa and Europe)
*520-1710kHz; smart step 1kHz/10kHz (for North America)
*Longwave (LW):100-519kHz; smart step 1kHz/9kHz
*Shortwave (SW):1711-29999kHz; smart step 1kHz/5kHz

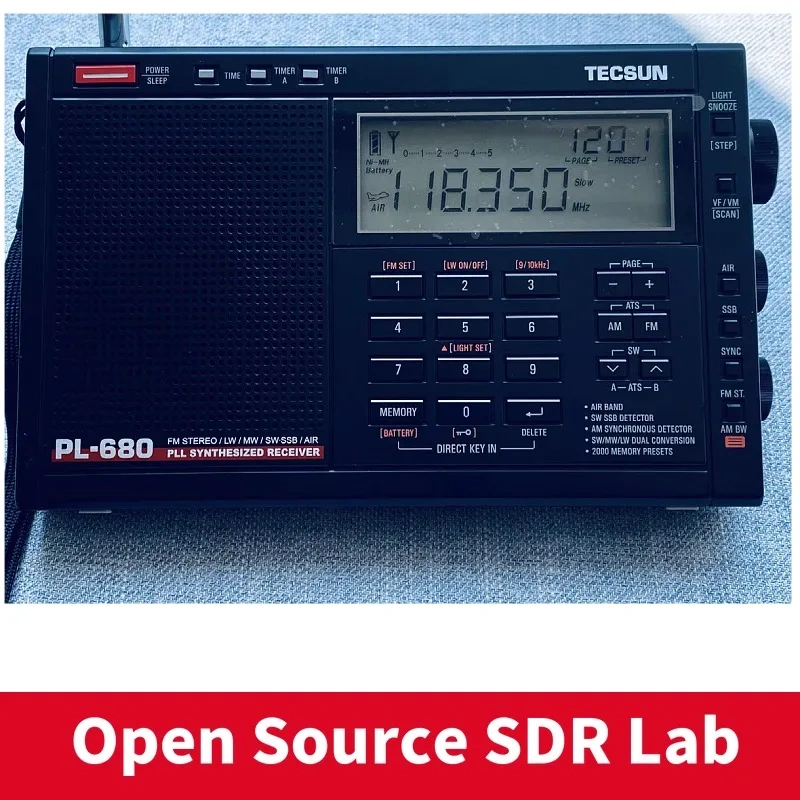

*Air Band (AIR):118-137MHz; smart step 1kHz/25kHz
The noise limit of sensitivity:
*Frequency Modulation (FM) (S / N = 30dB) better than 3uV
*AM (MW) (S / N = 26dB) better than 1mV / m
*Longwave (LW) (S / N = 26dB) better than 5mV / m
*Shortwave (SW) (S / N = 26dB) better than 20uV
*Single sideband (SSB) (S / N = 10dB) better than 1uV
*Air Band (AIR) (S / N = 10dB) better than 5uV
SNR:
*Frequency Modulation (FM): better than 60dB
*The long-wave (MW / LW): better than 45dB
*Shortwave (SW): better than 50dB
*FM stereo separation: better than 20dB
*The output power (10% distortion)
*Speaker: ≥ 450mW
*Headset: ≥ 10mW
*Headphone:
Diameter 3.5mm/32Ω stereo headphones
Store channels ---2000
FM---100
MW---100
LW---100
SW----200
SSB----200
AIR----100
Others:12pages ,each page 100,Total is 1200.
Package included:
-------------------------------------------------------------------------------
