Firmware and Quick start manual:

https://drive.google.com/file/d/1_PL2uzQUZsRnVVM2YfEZz9fLbAYRF3bT/view?usp=sharing

Introduction Video:
https://m.youtube.com/watch?v=teks8v3u8F0

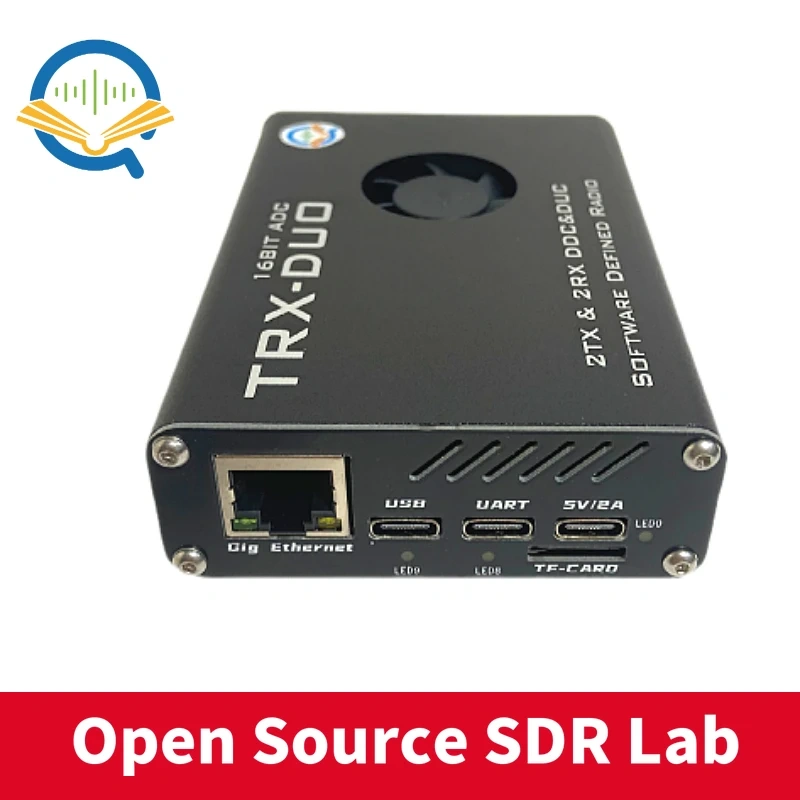

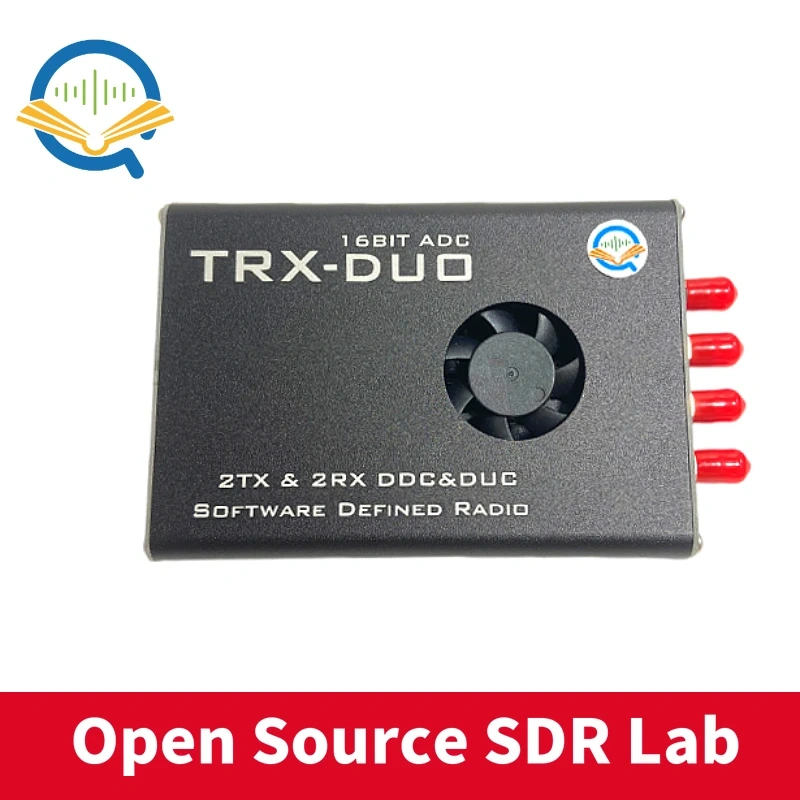

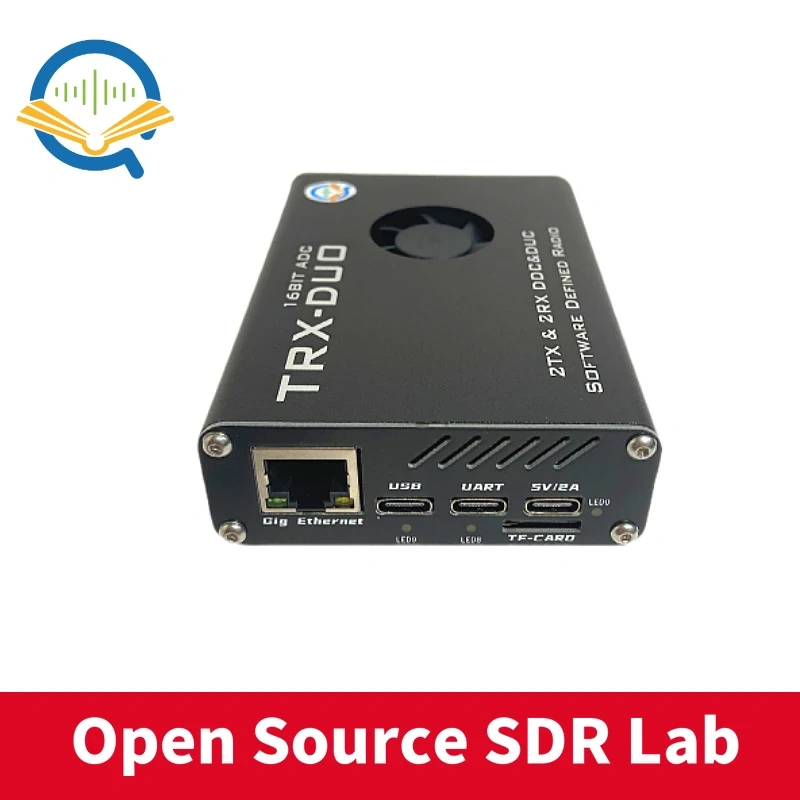

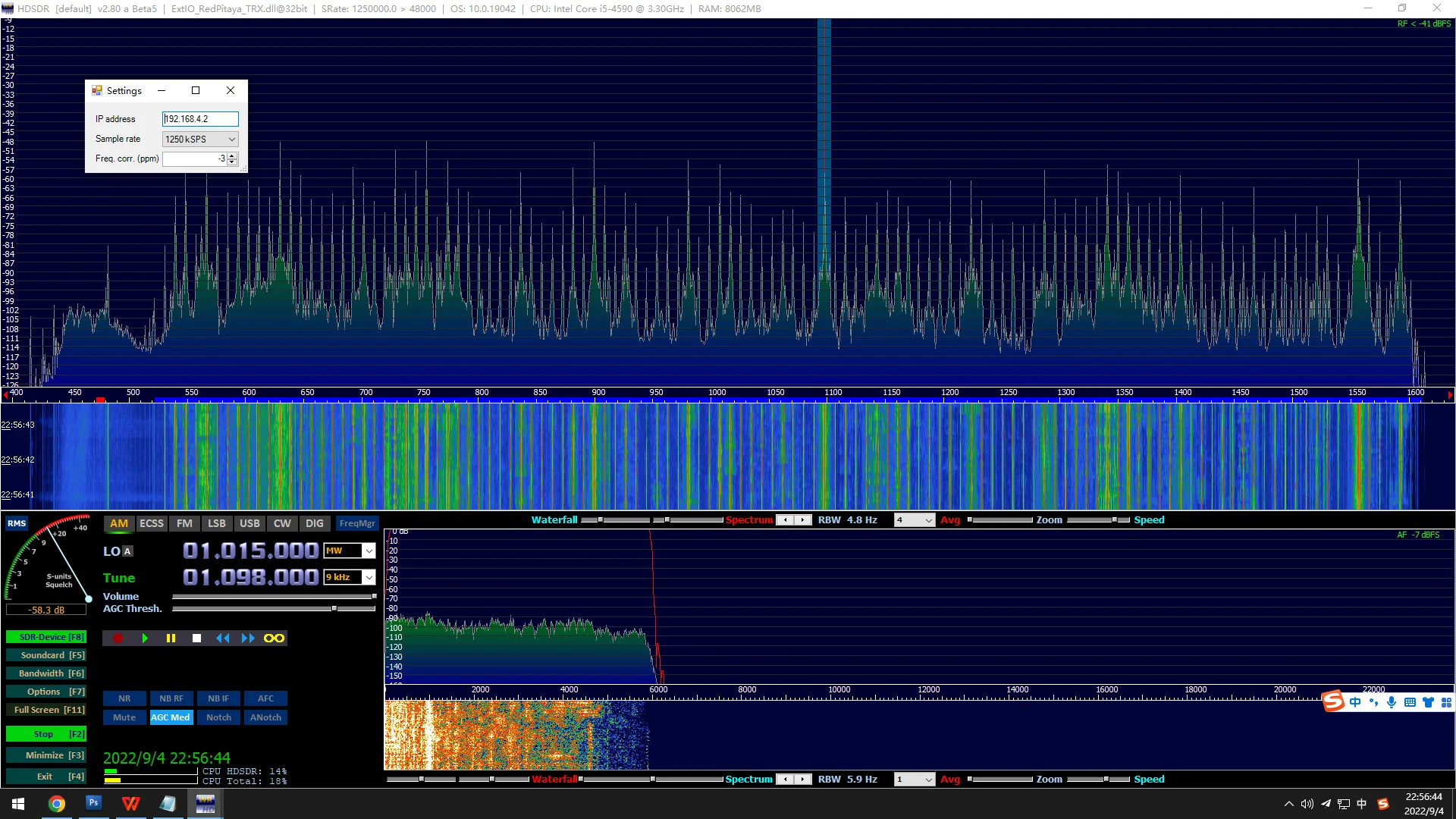

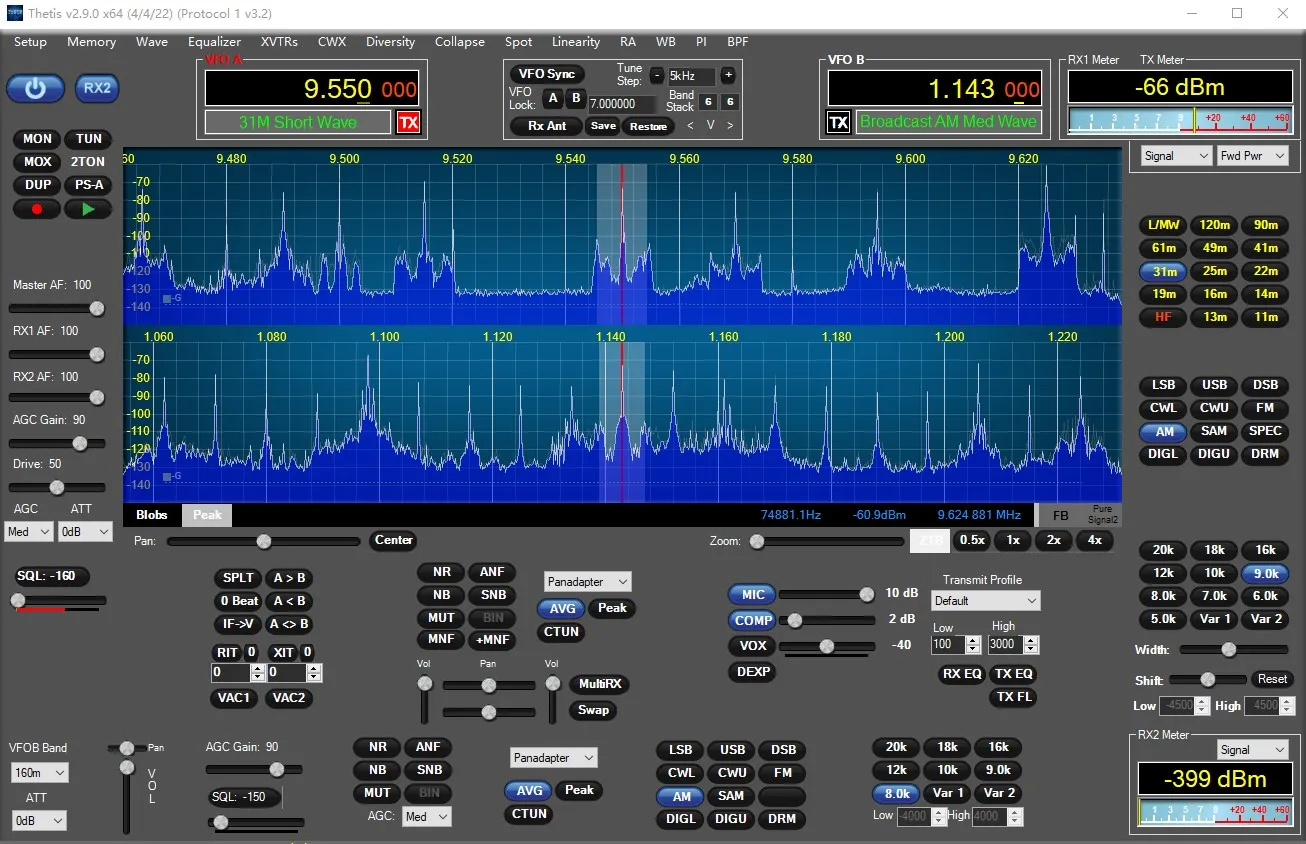

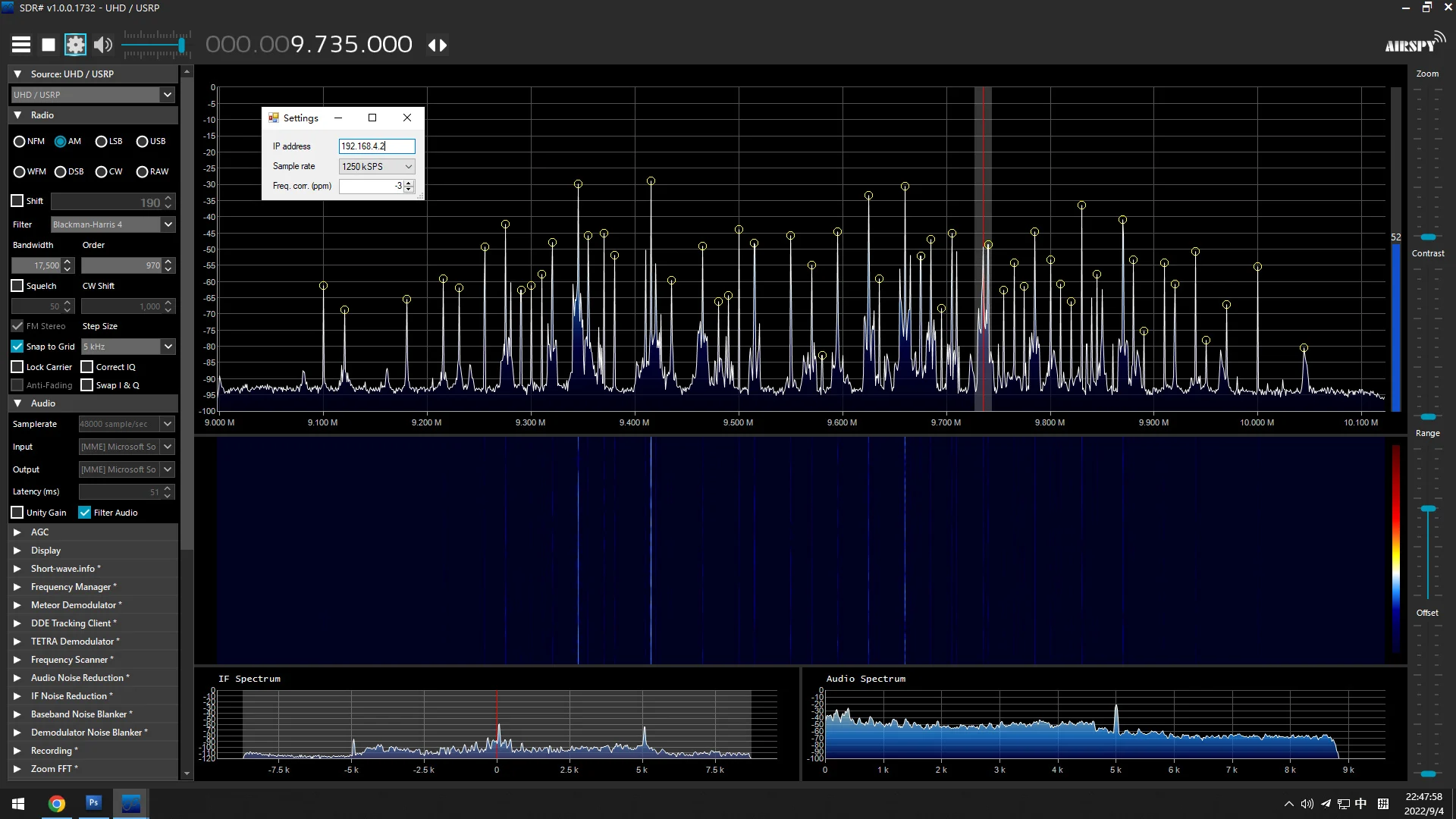

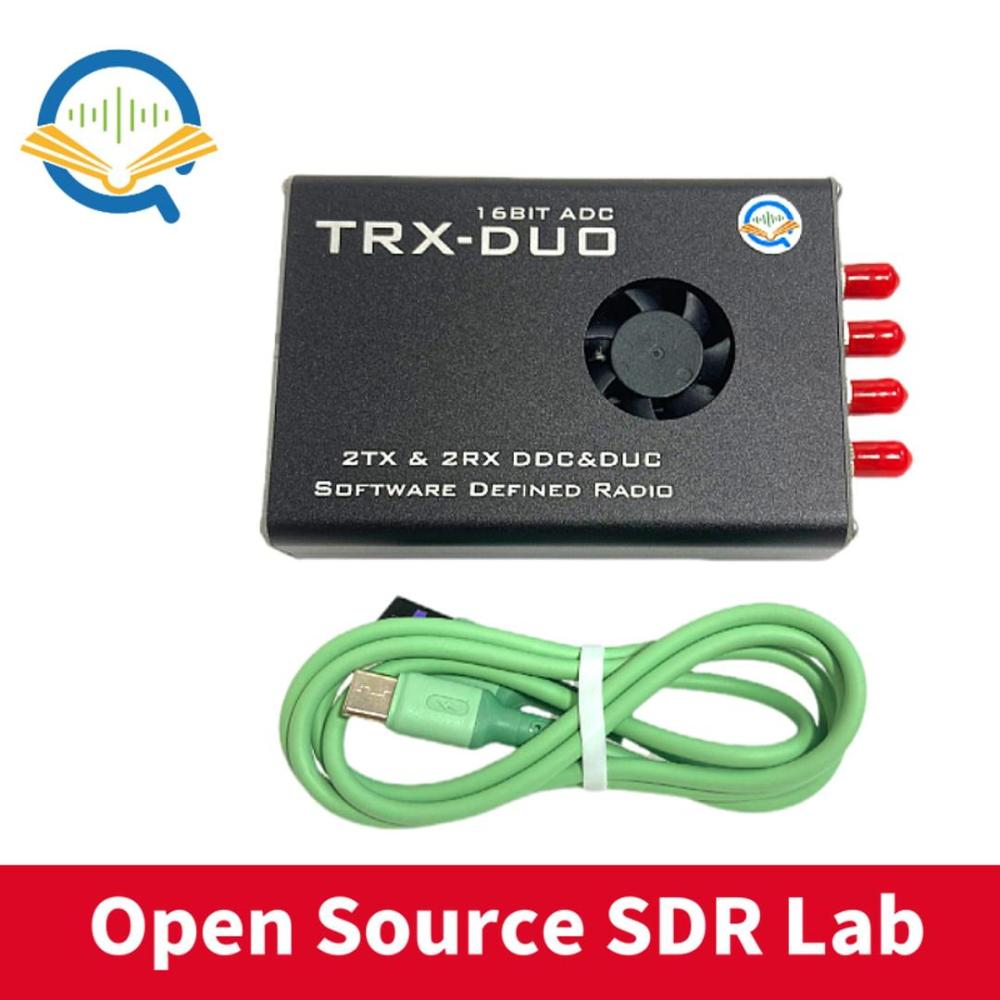

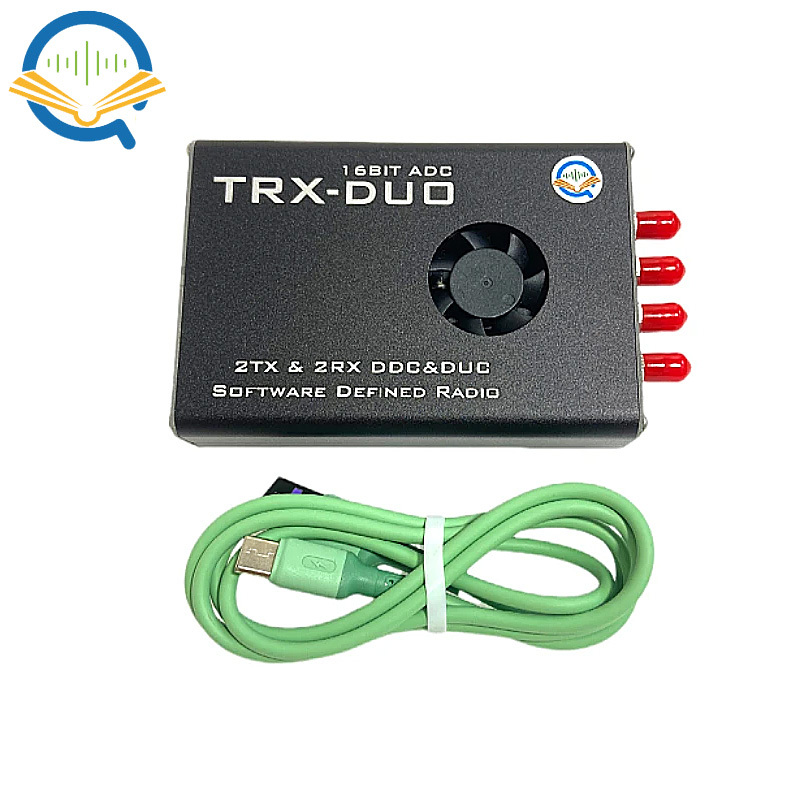

TRX-duo is an SDR device that supports dual-channel physical reception and transmission. It uses 2x16bit ADC LTC2208 to realize direct sampling reception of 10KHz-60MHz. It has the advantages of high dynamic range, high sensitivity, and convenient remote deployment. Using 14bit DAC to achieve dual transmission. The software can be compatible with the famous Red Pitaya SDR, and can be easily used with HDSDR SDR# PowerSDR SDRConsole (V3) and other software
SPECIFICATIONS:

BASIC

• Processor Dual Core Arm Cortex A9

• FPGA Xilinx Zynq 7010 SoC

• RAM 512MB

CONNECTIVITY

• Ethernet 1Gbit

• TYPE-C USB 2.0

• Wi-Fi requires Wi-Fi dongle (not included)

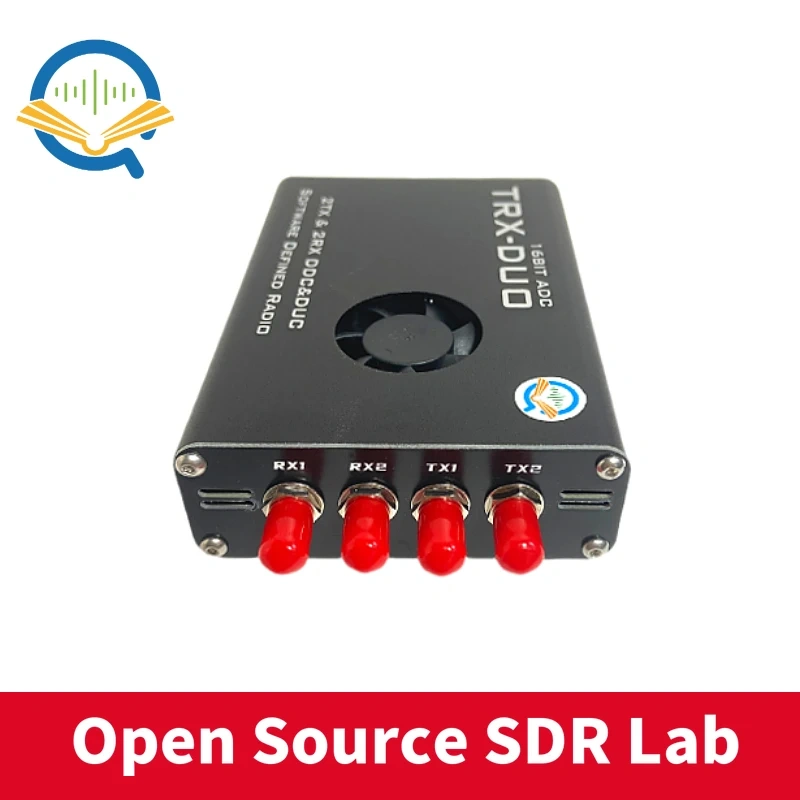

RF INPUTS

• Channels 2, SMA connectors

• Sample rate 125MS/s

• ADC resolution 16-bit

• Full-scale voltage range 0.5Vpp /-2dBm

• Absolute Max. Input voltage range DC max 50V (AC-coupled), 1Vpp for RF

• Input protection RF transformer & AC-coupled

RF OUTPUTS

• Channels 2

• Sample rate 125MS/s

• DAC resolution 14 bit

• Voltage range 1Vpp / +4dBm

• Load Impedance 50ohm


EXTENSION CONNECTOR

• Digital l/O pins 16
  Analog inputs 4

• Analog inputs voltage range 0-3.3V

• Sample rate 100kS/s


• Resolution 12-bit

• Analog outputs 4

• Analog outputs voltage range 0 -1.8V

• Communication interfaces I 2 C, UART, SPI

• Available voltages+ 3,3V
