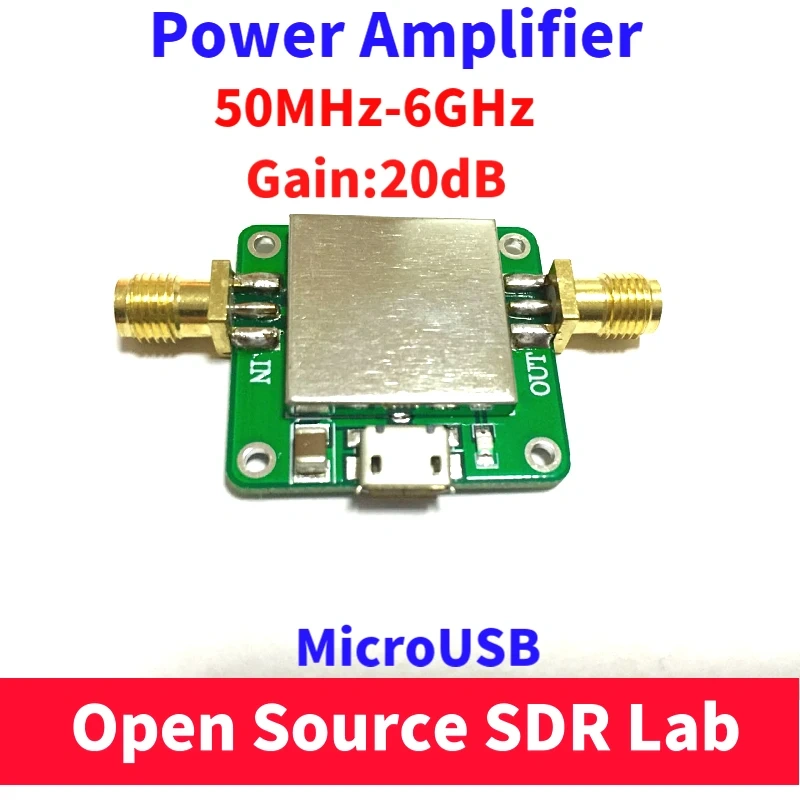

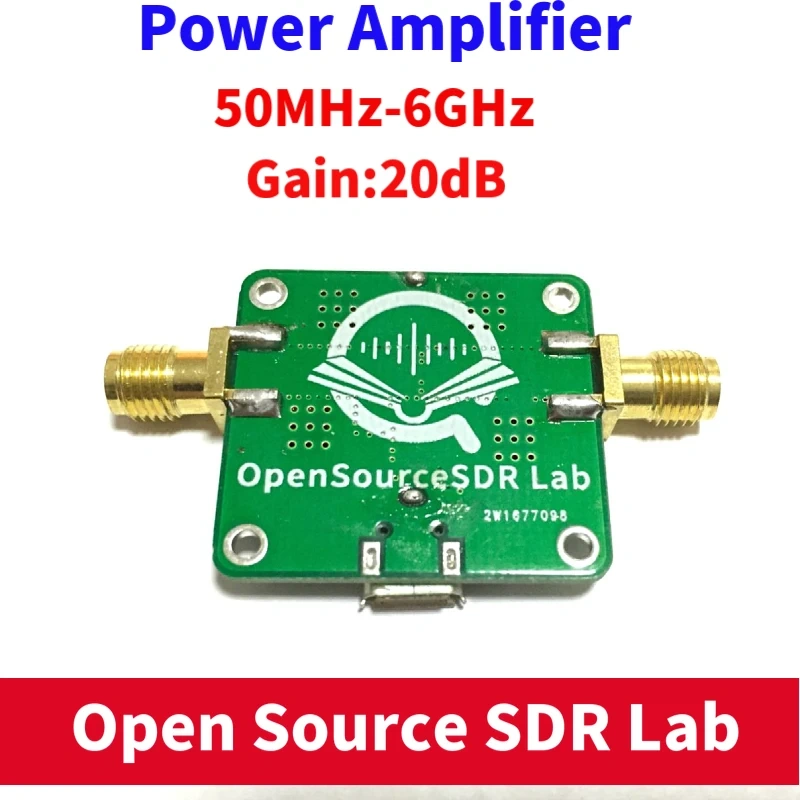

50M-6GHz Low Noise RF Amplifier Ultra Wideband Gain 20dB Medium Power Amplifier Board

Features:

• 50M-6GHz RF signal power amplifier with 20dB gain

• Large dynamic range and wide operating frequency range

• Suitable for all types of fixed gain amplification of RF signal

• Wide frequency range, stable gain, small noise figure and large dynamic range (+ 20dBm @ 1dBP)

• Suitable for all kinds of RF transmitting circuits to extend communications distance

• Perfect for FM broadcast, remote control receivers, cable TV signal amplifiers

• GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF end and other RF amplification

• A shielded enclosure with anti-reverse protection diodes

Technical Parameters:

• Operating Frequency: 50M-6GHz (50-6000MHz)
  - Amplifier Gain: 20dB

• Max. Output Power: +21dBm(100mW)@1dB compression point

• Working Current: 85mA (5V)

• Power Supply Voltage: 5VDC【MicroUSB Power Supply】

• System Impedance: 50Ω

• Weight: 5g

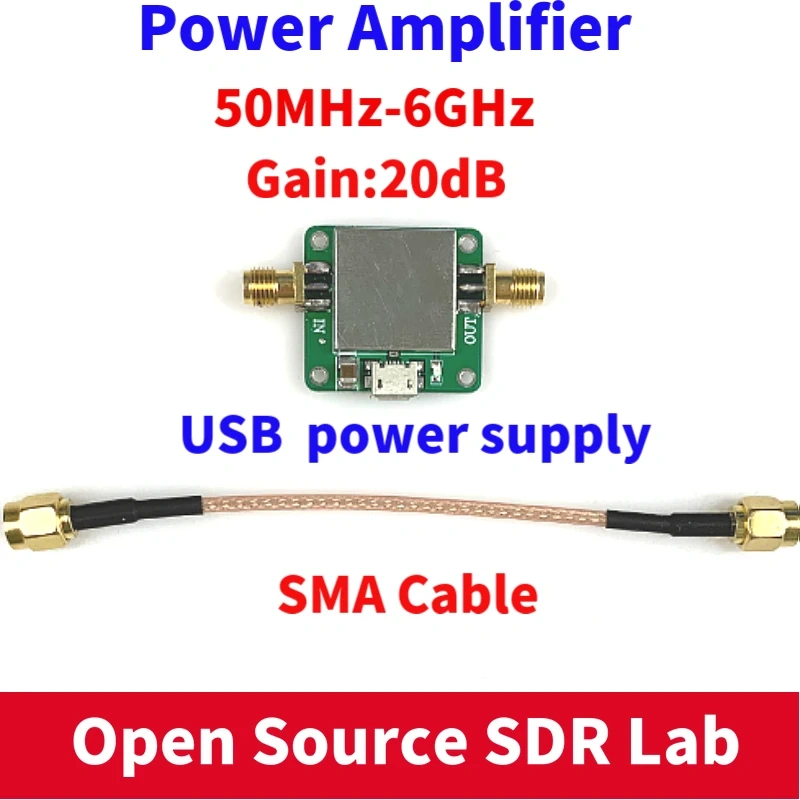

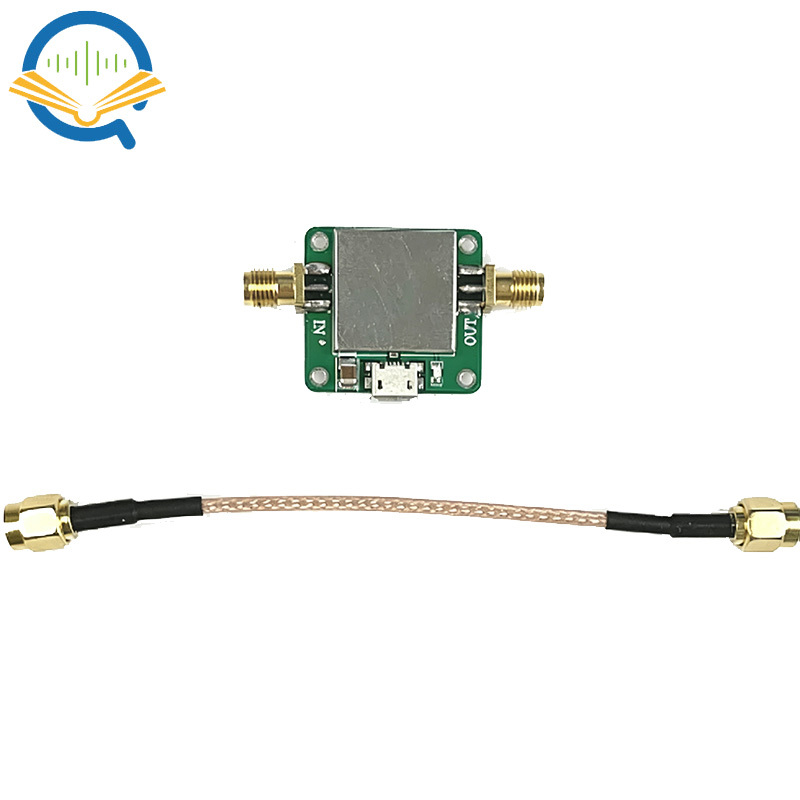

Product List:

• 50M-6GHz Power Amplifier Board * 1

• SMA connector cable *1
