OpenSourceSDRLab GNSS signal amplifier gain 45dBm navigation satellite signal repeater navigation full frequency band coverage

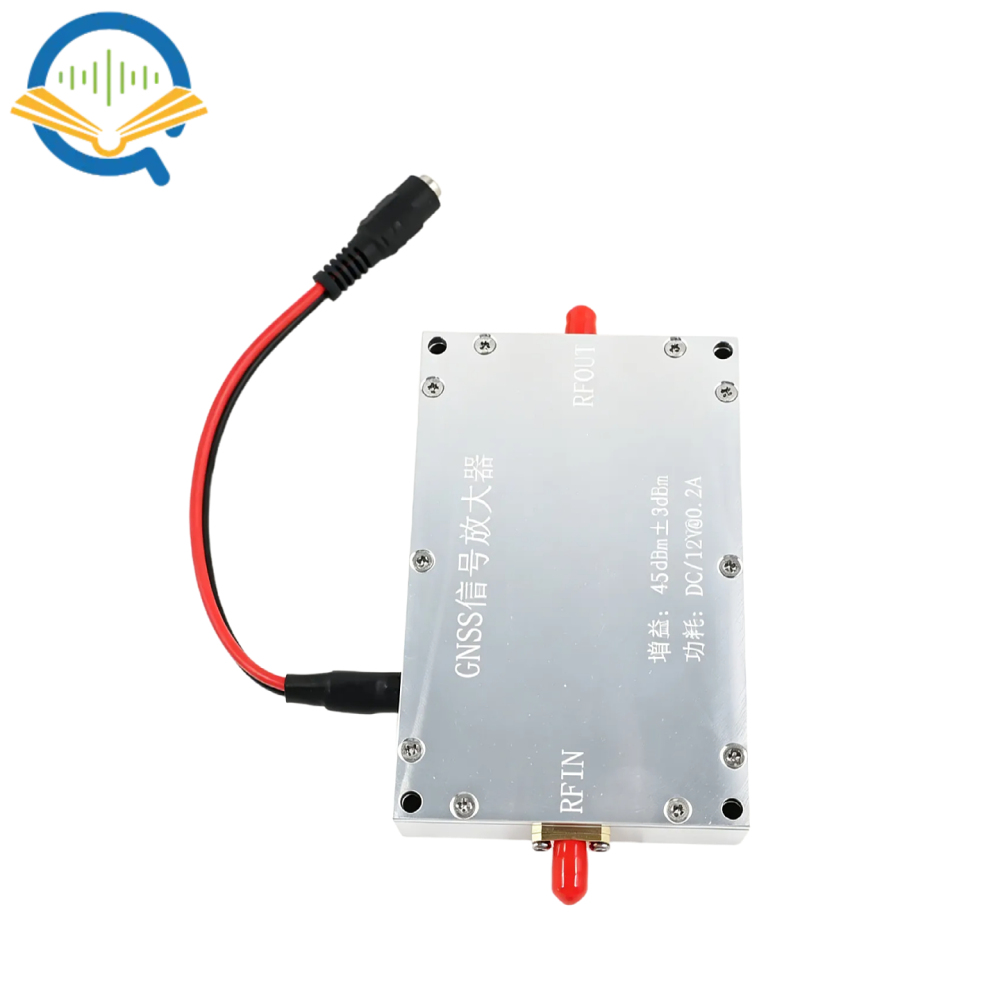

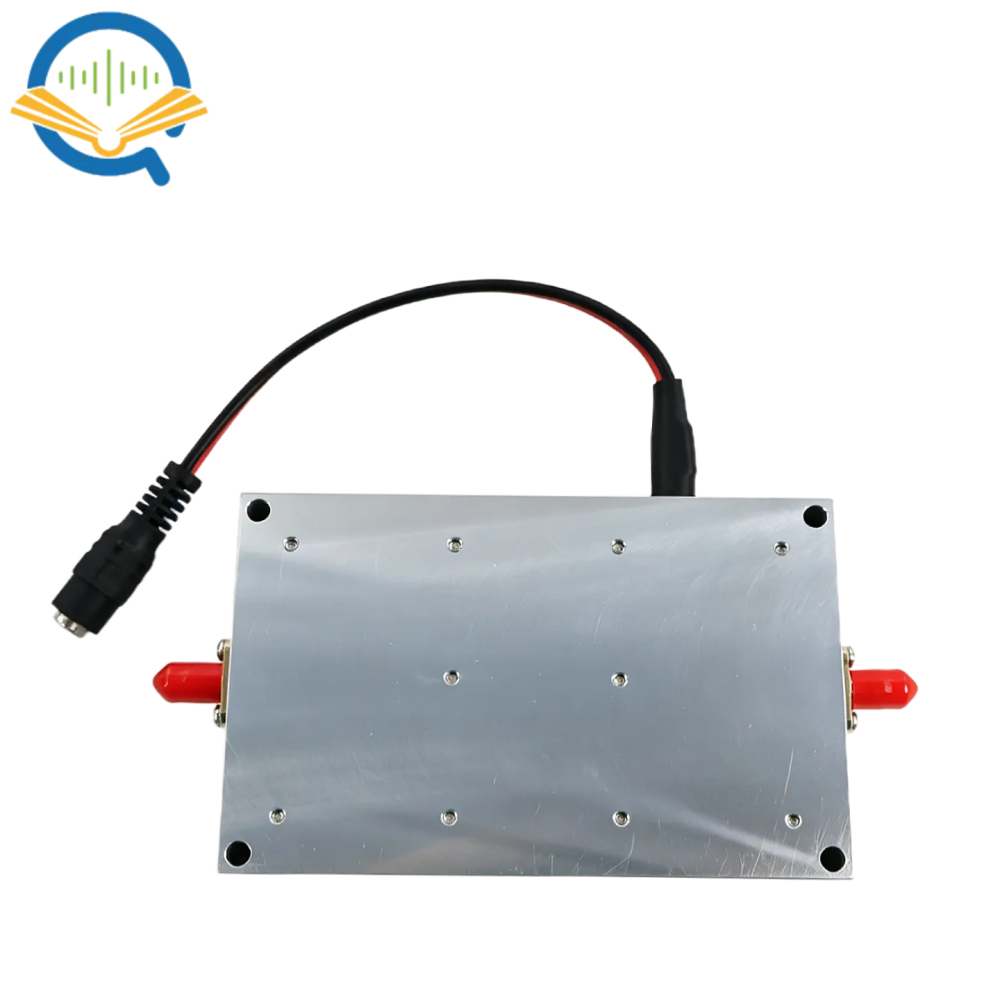

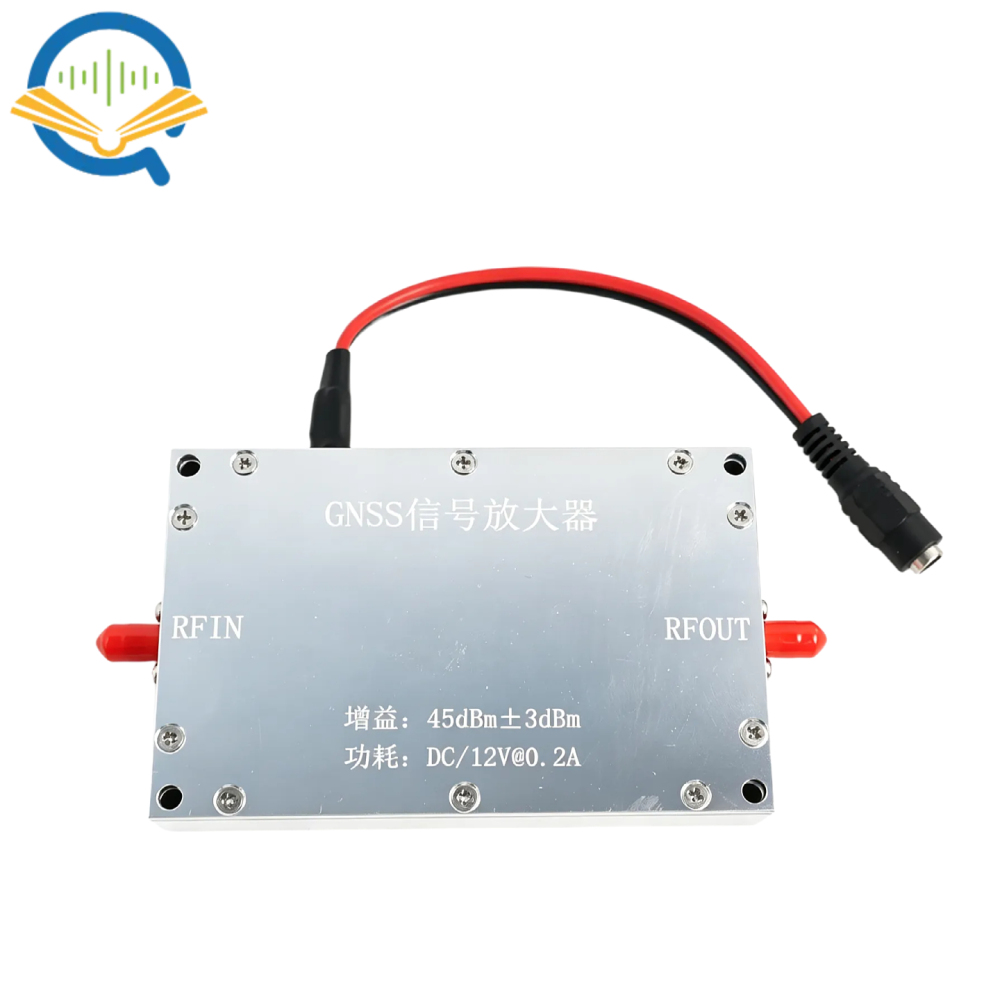

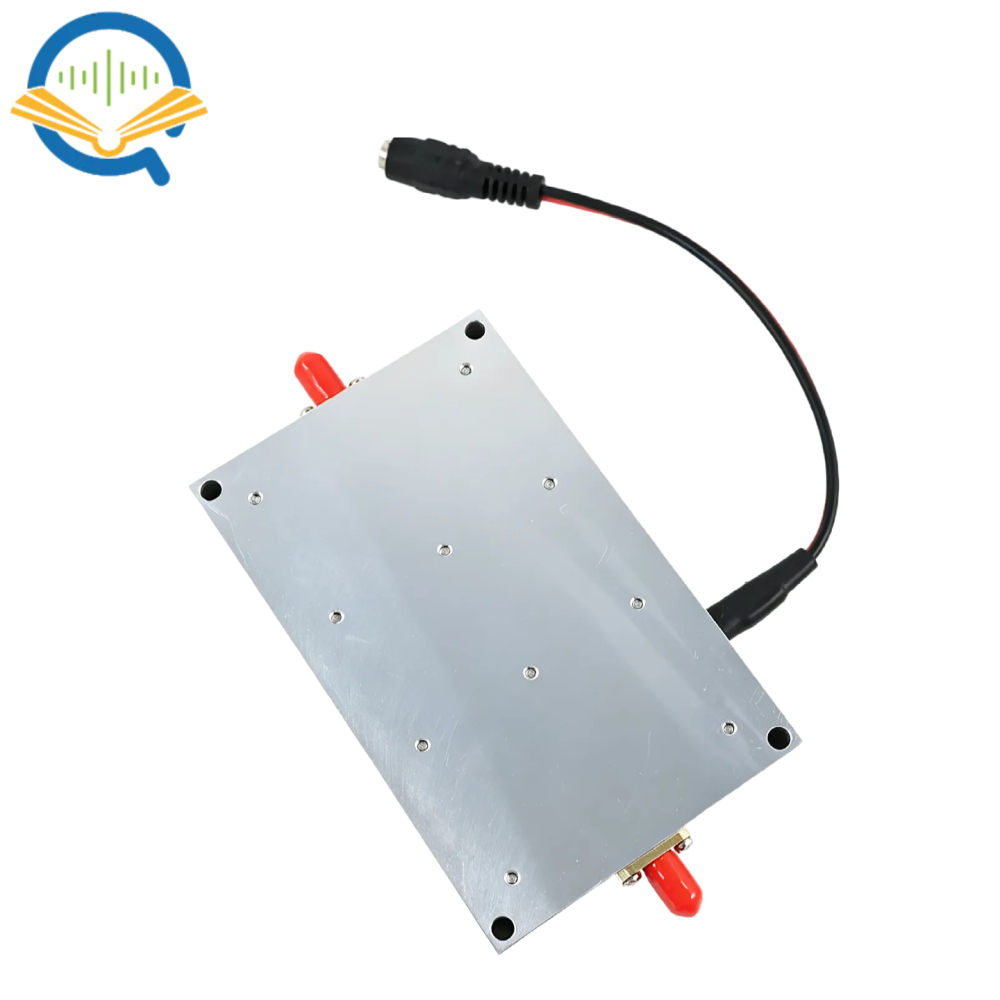

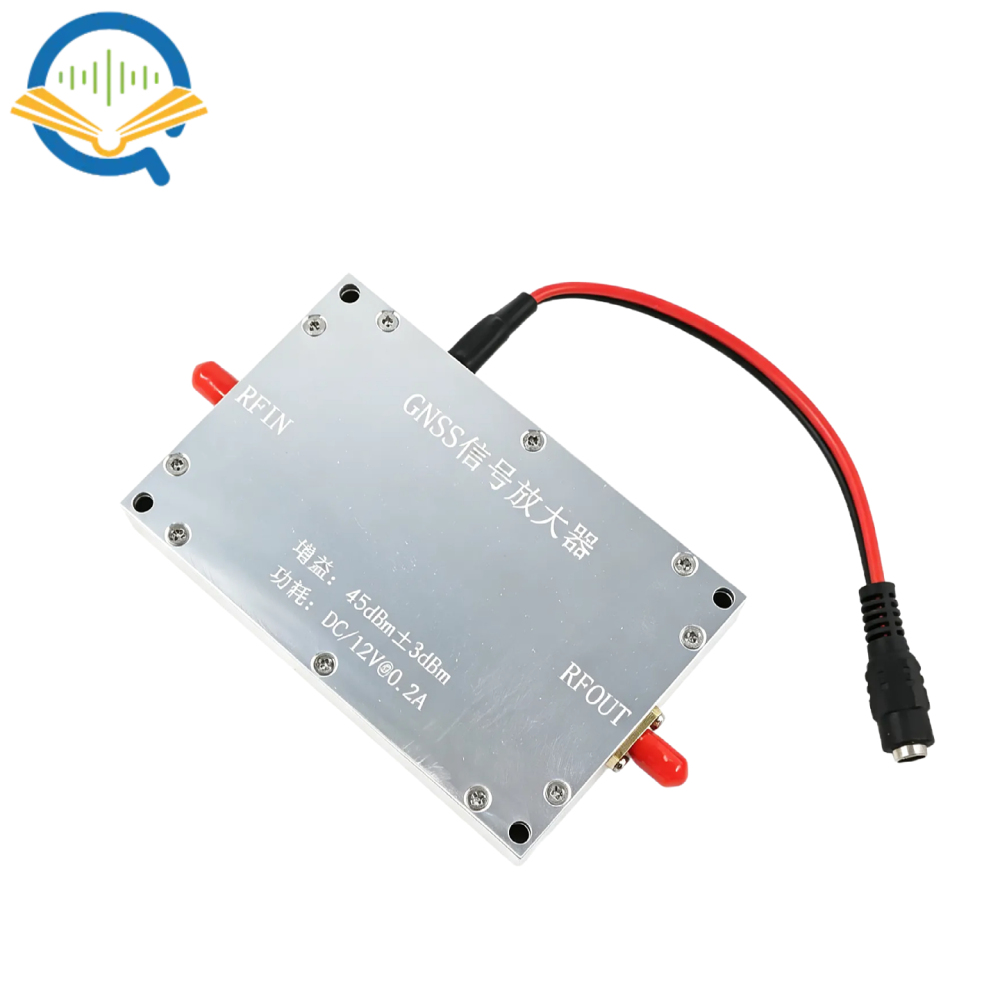

Product Introduction:

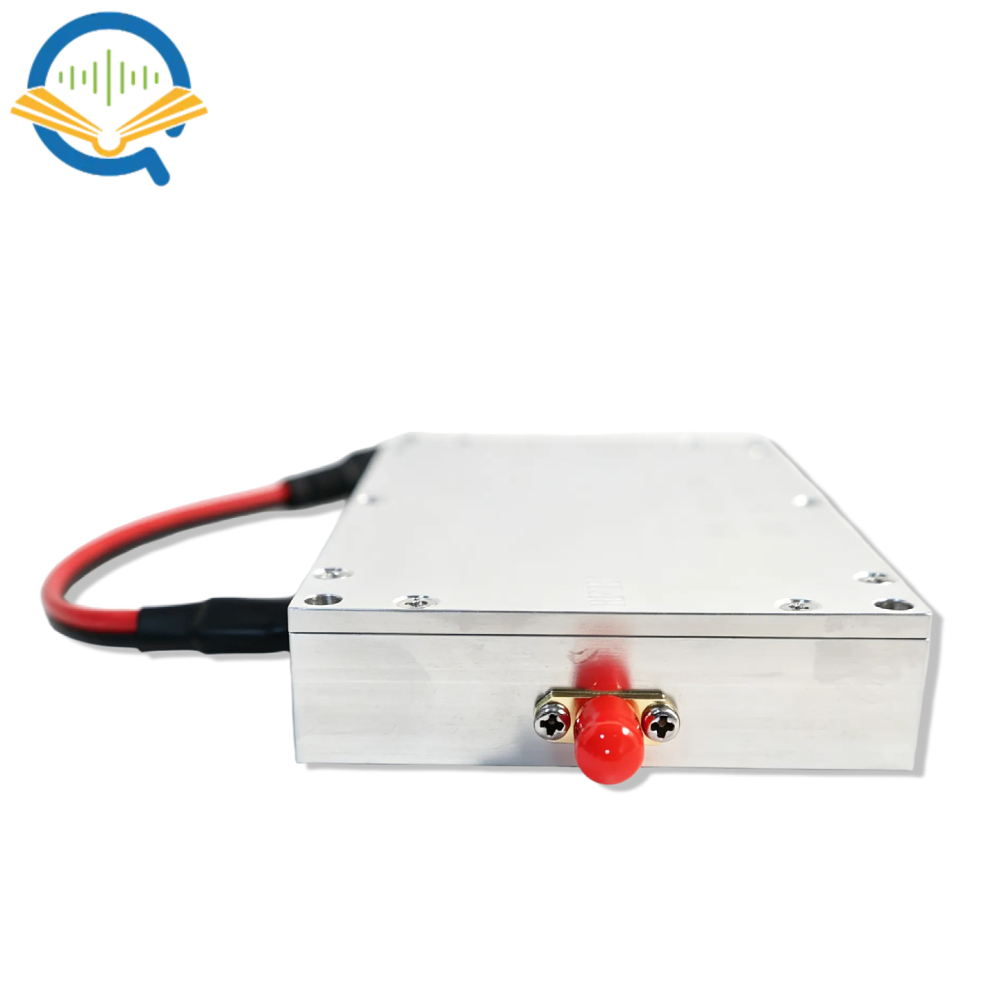

GNSS signal amplifier, capable of amplifying satellite signals in all navigation frequency bands, with a CNC shielded aluminum shell and a wall thickness of up to 4mm. The power supply part uses a through-hole capacitor, and the RF port uses a standard SMA external thread internal hole connector. The overall power consumption of the module is about 2.4W, and the shell is loose
Thermal effect, can work continuously for 24 hours without interruption.
Frequency range:
The module adopts a dual channel design, so it is divided into 2 segments in total, with specific frequency bands as follows:
Frequency range: 1170MHz to 1268MHz;
Second frequency range: 1560MHz to 1620MHz;
Power consumption and gain:

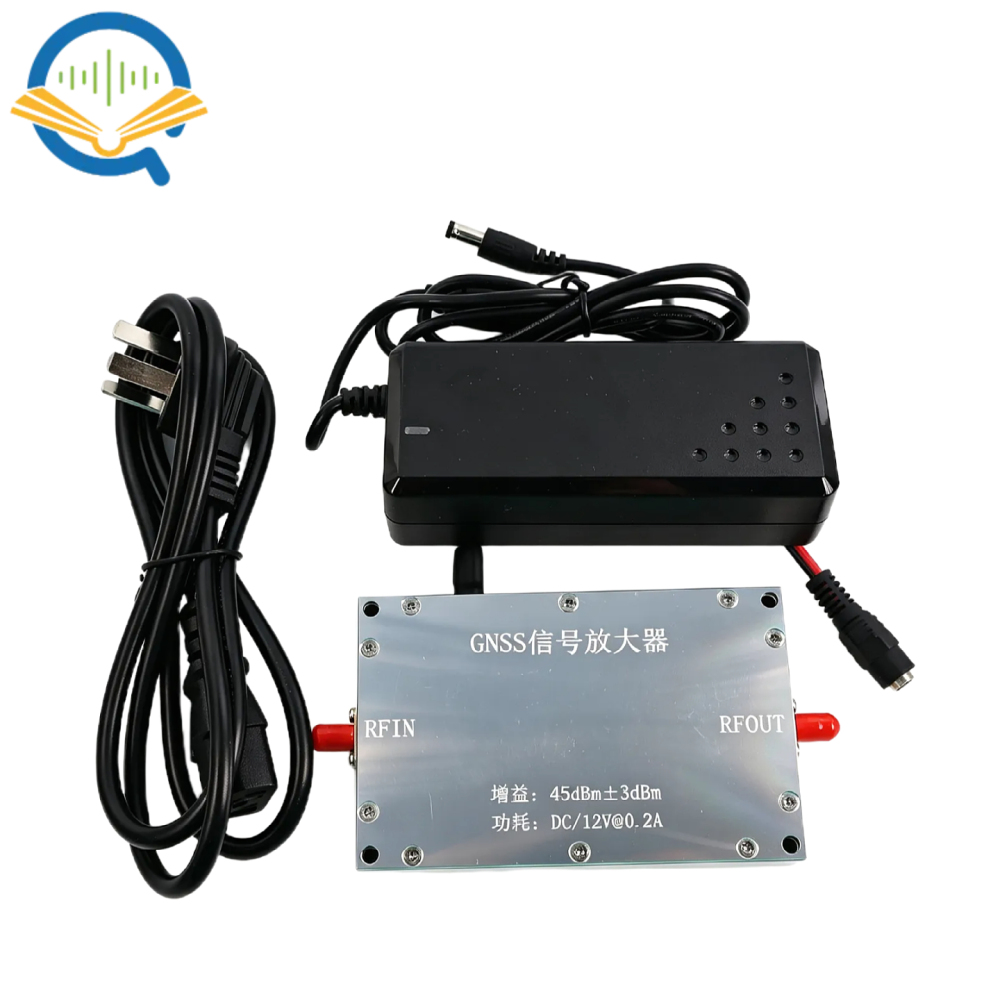

The module is powered by DC/12V, with a system operating current of 0.25A (Max) and a system gain of approximately 45dBm.
External dimensions:
The module size is 110mm * 70mm * 19mm (excluding SMA and through-hole capacitor sizes)
Popular science knowledge: (The module has amplification and forwarding functions for the following frequency points)
GPS, L1 frequency point: 1575.42 ± 1.023MHz (equipped)
GPS, L2 frequency 1227.6 ± 1.023MHz (equipped)
GPS, L5 frequency point: 1176
. 45 ± 1.023MHz (equipped)
BD2 generation, B1 frequency point: 1561.098 ± 2.046MHz (equipped)
BD2 generation, B2 frequency point: 1207.52 ± 2.046MHz (equipped)
BD2 generation, B3 frequency point: 1268.52 ± 1023MHz (equipped)
GLONASS, L1 frequency point: 1602.5625 ± 4MHz (equipped)
GLONASS, L2 frequency point: 1246.4375 ± 4MHz (equipped)
Galileo, L1 frequency point: 1575.42 ± 1.023MHz (equipped)
Galileo, E5B frequency point: 1207.14 ± 1.023MHz (equipped)
Galileo, E5B frequency point:
1176.45 ± 1.023MHz (equipped)
