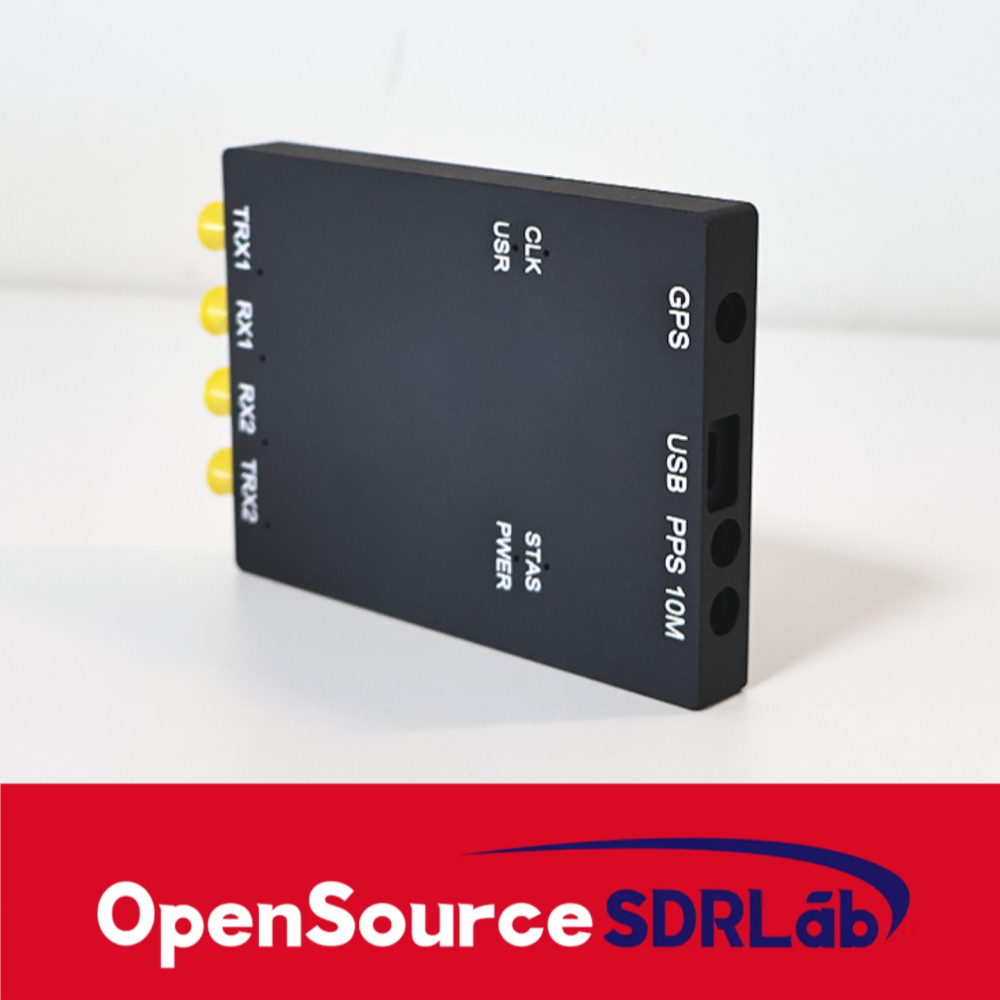

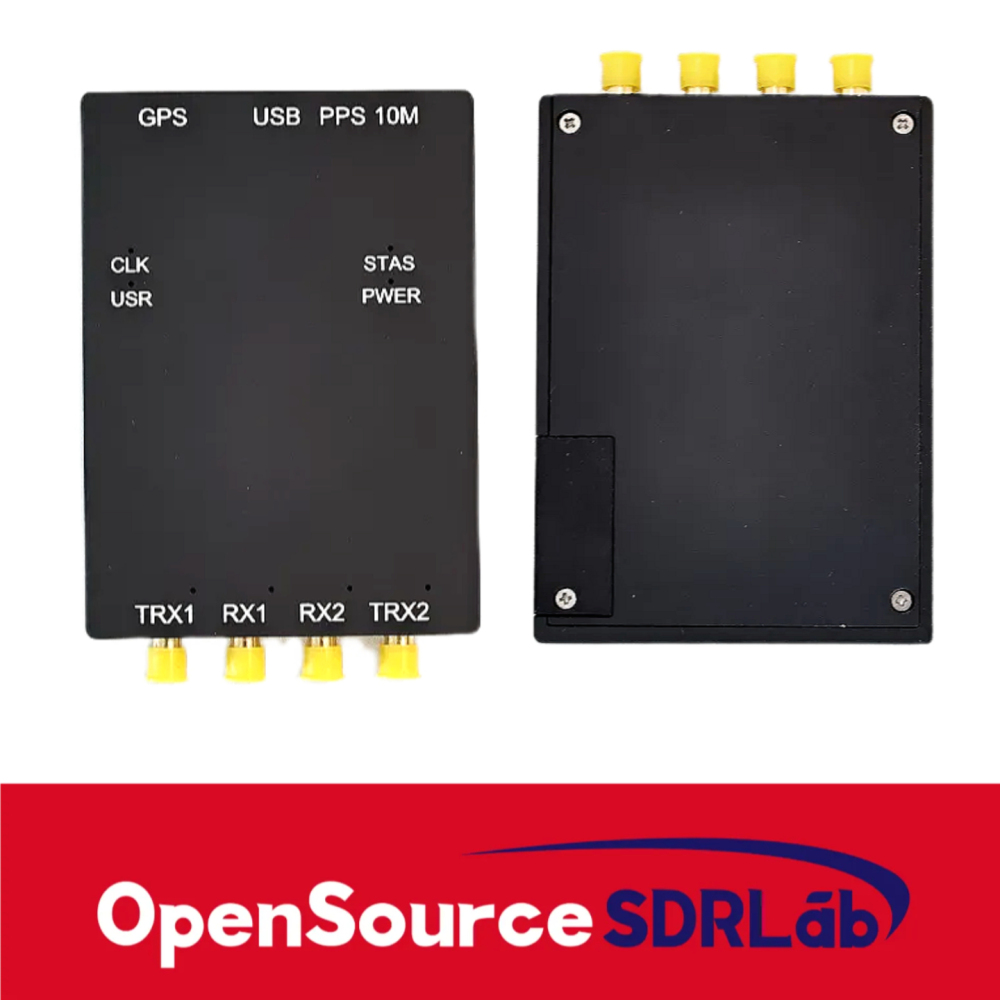

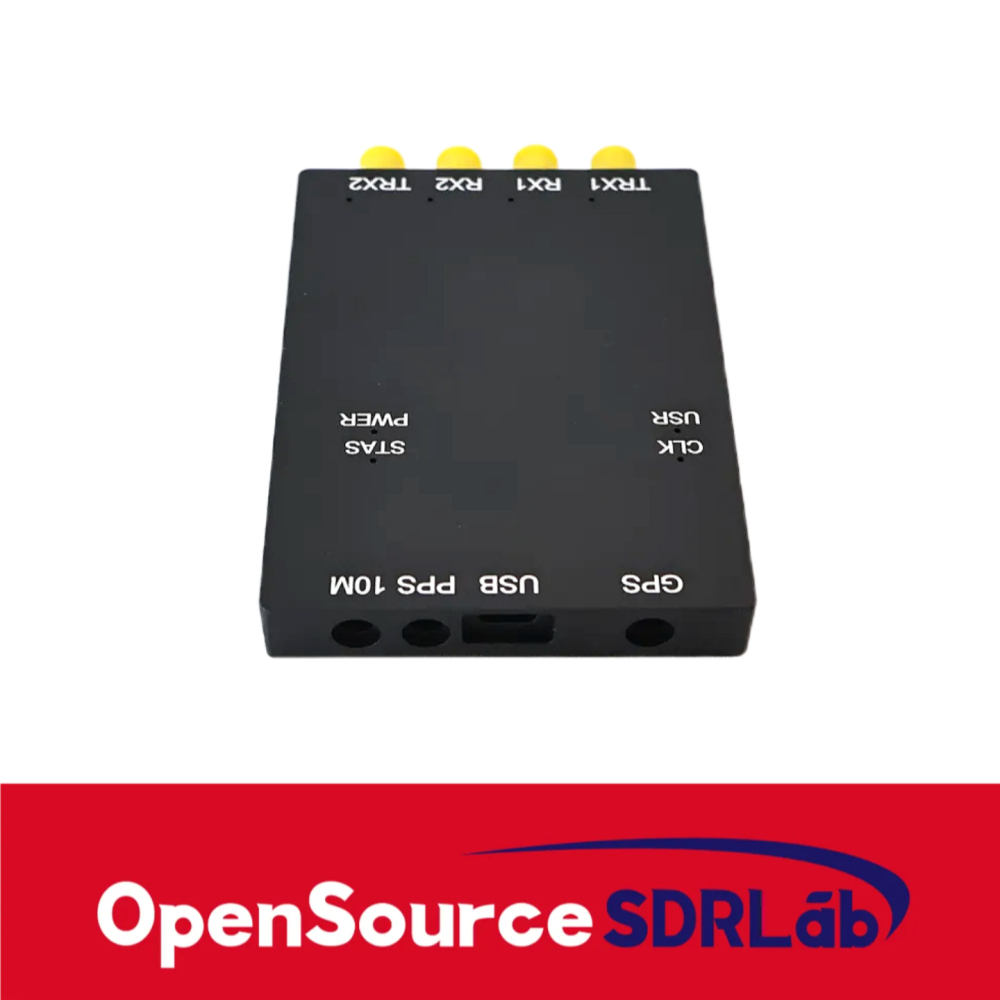

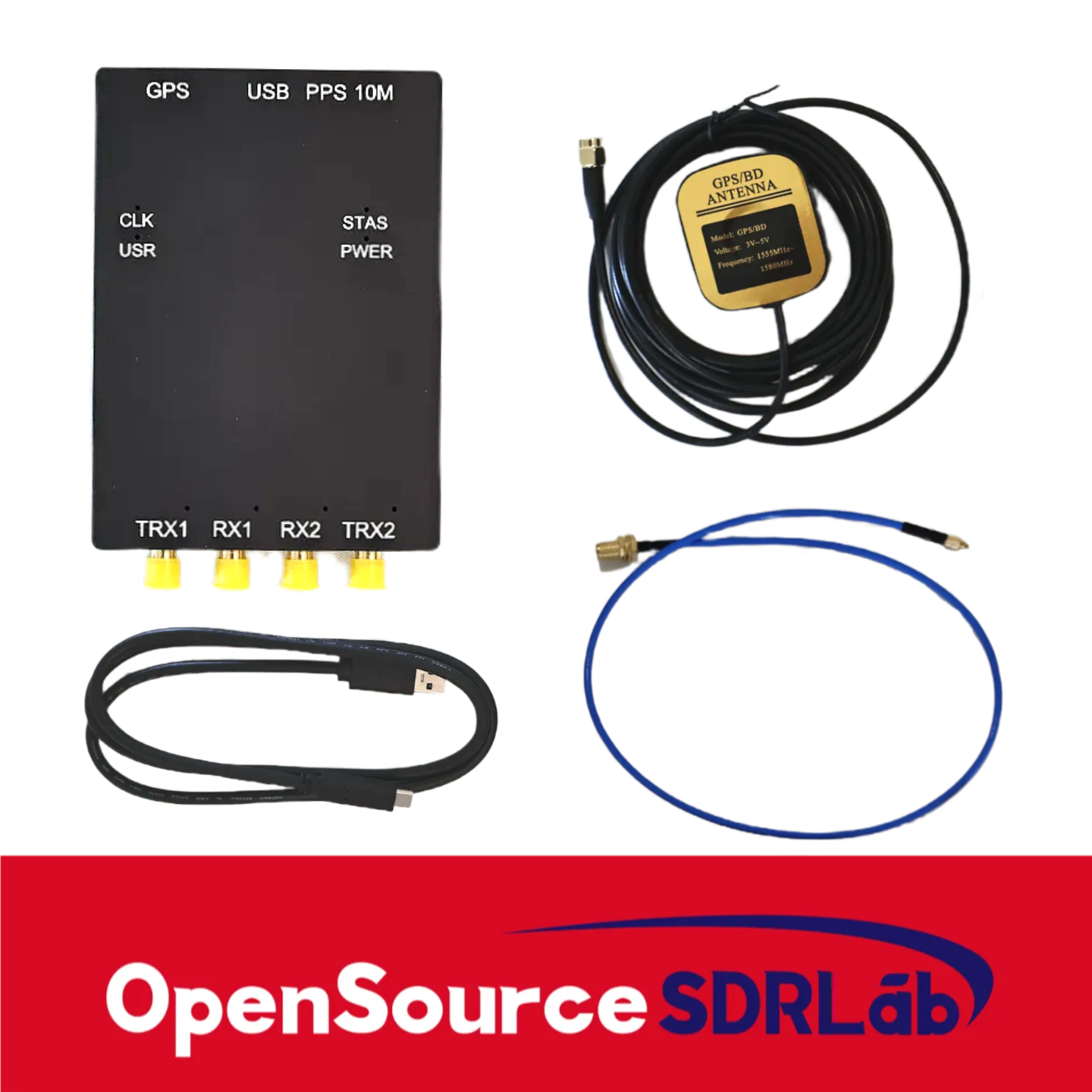

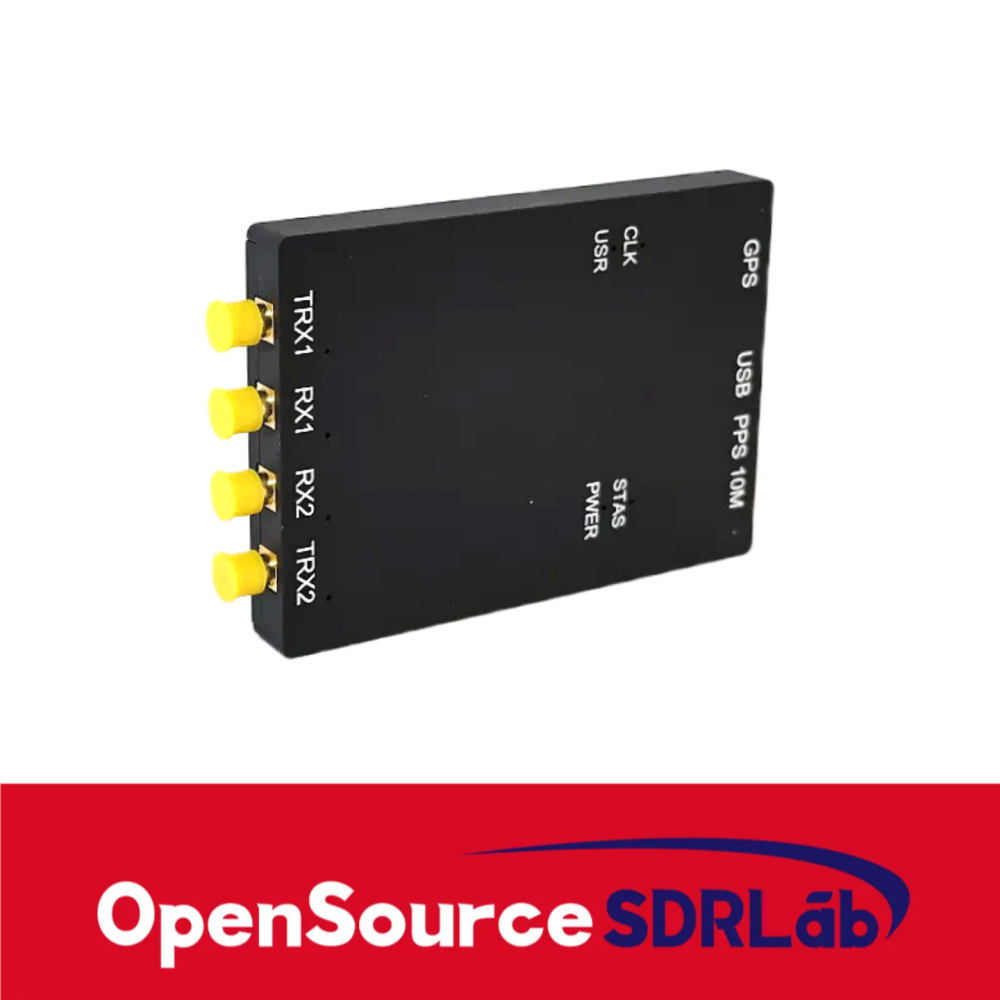

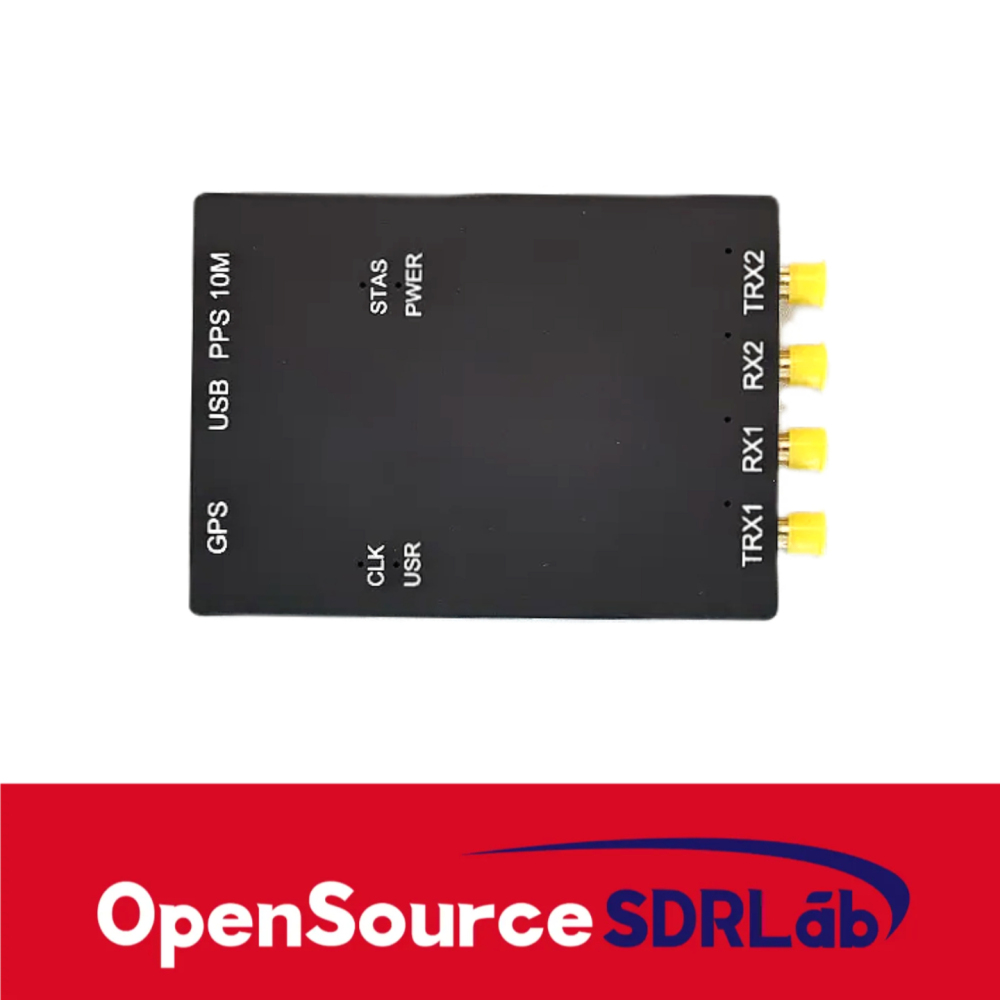

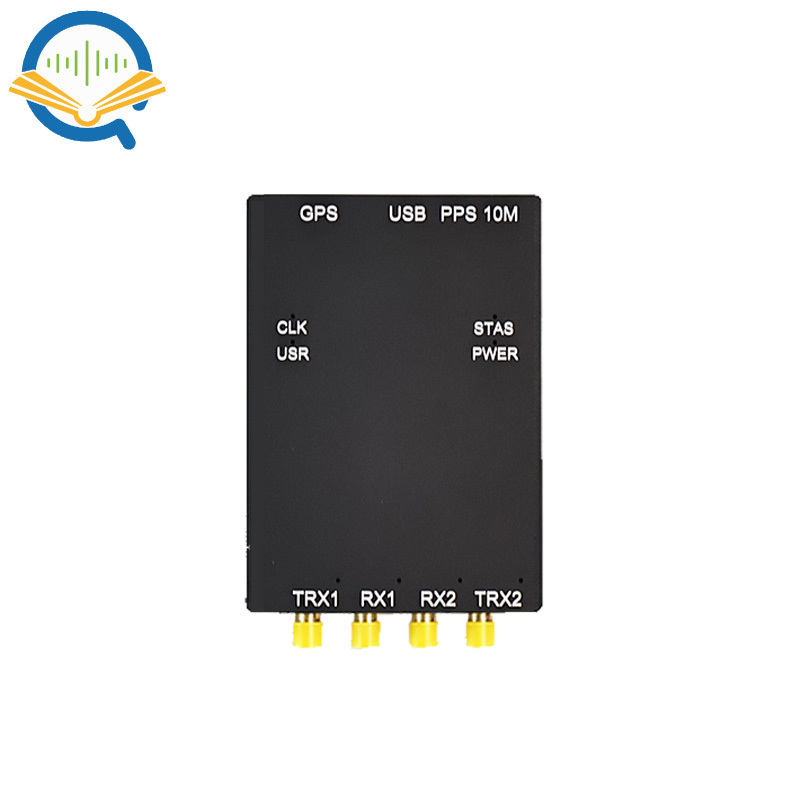

Production Description:

This device is based on the original USRP B210 and make some optimization and improvement, using the newer Xilinx Kintex-7 series instead of the original Xilinx Spartan-6 series, supporting developed by Vivado, compatible with original features.
The main similarities and differences with the original version are as follows:

• Adopting USB 3.0 Type-C interface, the maximum real-time transmission bandwidth can reach 56MHz;
• The RF front-end is consistent with the original version, adopting a frequency division design, and the RF circuit has been optimized through simulation;
• Support PPS and 10MHz input, add onboard GPS module, can replace PPS input;
• Remove the GPSDO slot, reduce the size of the board, and make the overall volume 70 * 97 * 11.5mm

Connector Description:
