Function Description:
This USRP B210 is optimized and improved based on the original version, using the newer K7 series instead of the S6 series. It supports for Vivado development and is compatible with the original features. The main similarities and differences with the original version are as follows:
1. Adopting USB 3.0 Type-C interface, the maximum real-time transmission bandwidth can reach 56MHz.
2. The RF front-end is consistent with the original version, adopting a frequency division design, and the RF circuit has been optimized through simulation.
3. Support PPS, 10MHz input, add onboard GPS module, can replace PPS input.
4. Remove the GPSDO slot, reduce the size of the board, and make the overall volume 70 x 97 x 11.5mm
Using Instructions:
Differences in usage from the original version:
1. Before use, the usrp_b210_fpga.bin file in the computer needs to be replaced.
2. Cannot access GPSDO module.
3. The PPS priority of the GPS module is higher than that of the external PPS. When the GPS module is locked, the external PPS input is unavailable.

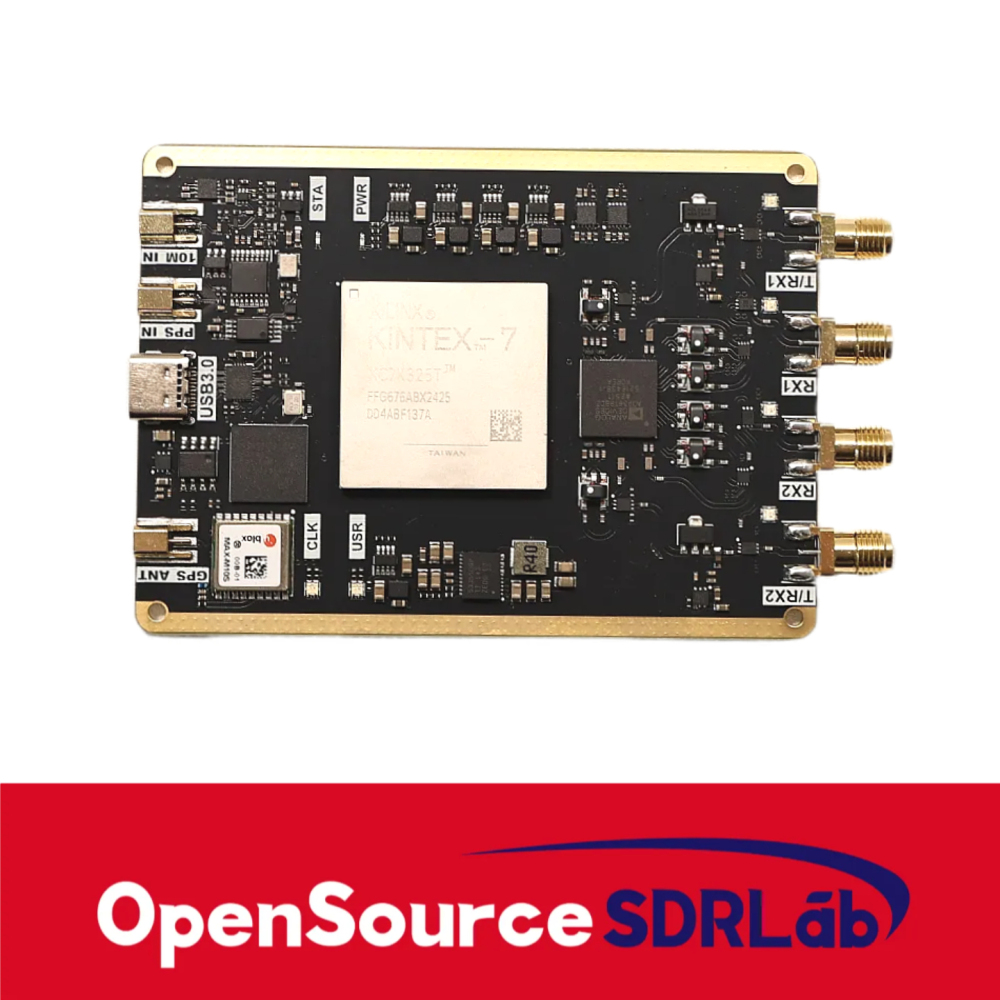

Interface Description:
GPS: antenna input of GPS module, MMCX interface
USB: USB3.0 and host data communication, Type-C interface
PPS: external PPS input, MMCX interface
10M: 10M reference input, MMCX interface
TRX1: transmitting or receiving port 1, SMA interface
RX1: receiving port 1, SMA interface
RX2: receiving port 2, SMA interface
TRX2: transmitting or receiving port 2, SMA interface
FPC connector: JTAG debugging port and external expansion GPIO
PWER LED: power indication LED, red after power-on
STAS LED: status indication LED, blue after loading firmware
CLK LED: PPS indication LED, flashing red and synchronized with the currently selected PPS pulse
USR LED: no function available, customizable
TRX1 LED: transmitting and receiving indicator LED, red when transmitting and blue when receiving
RX1 LED: receiving indicator LED, blue when receiving
RX2 LED: receiving indicator LED, blue when receiving
TRX2 LED: transmitting and receiving indicator LED, red when transmitting and blue when receiving

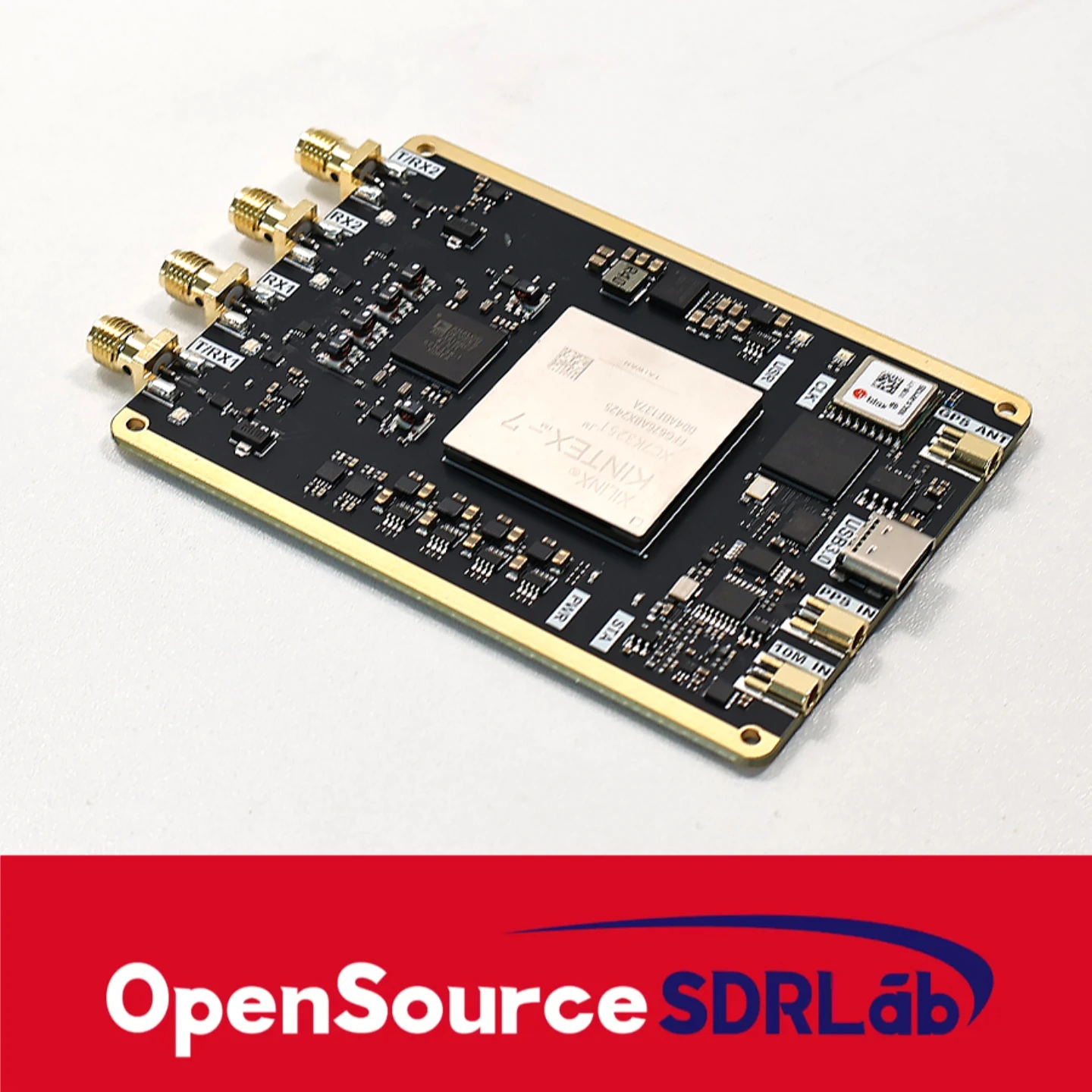

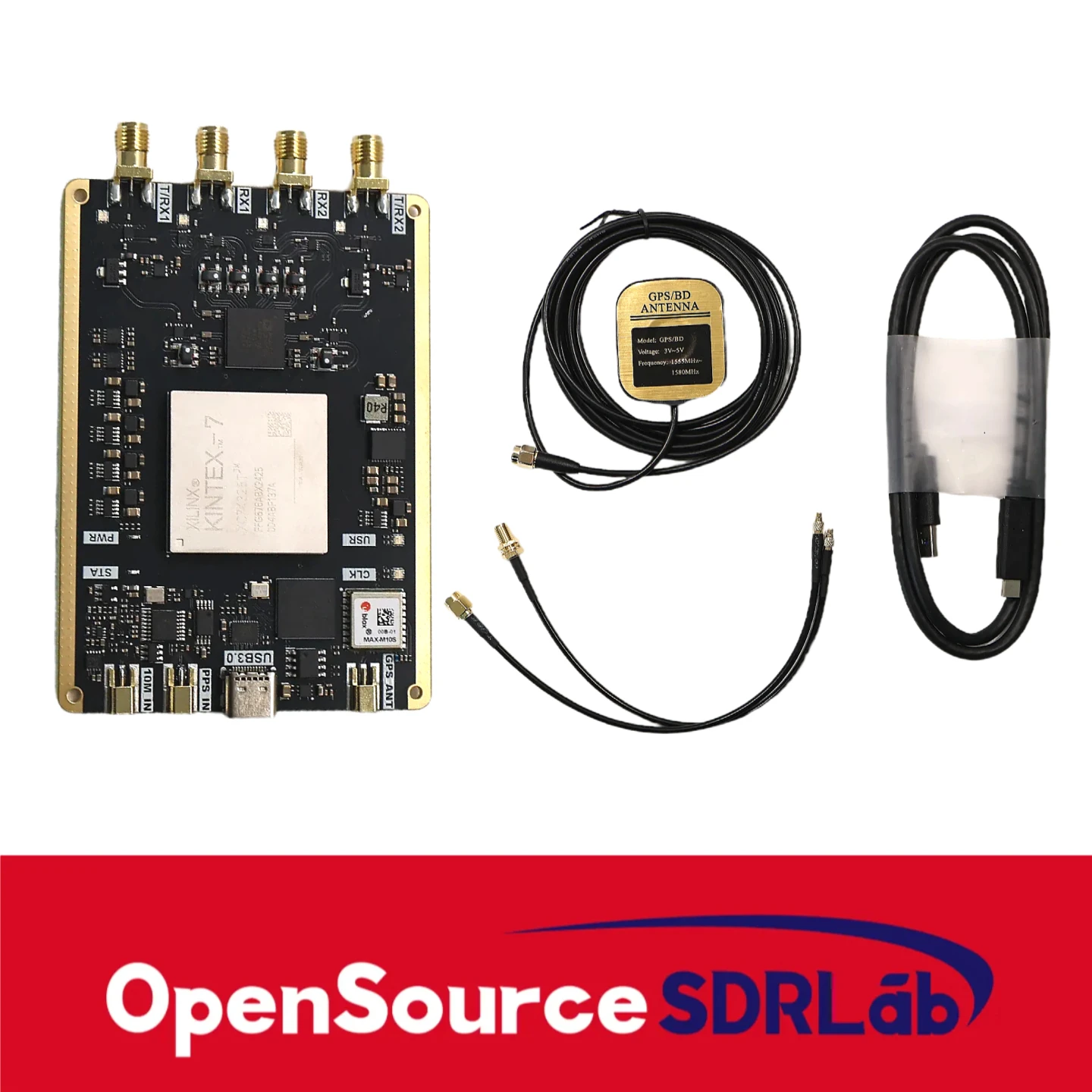

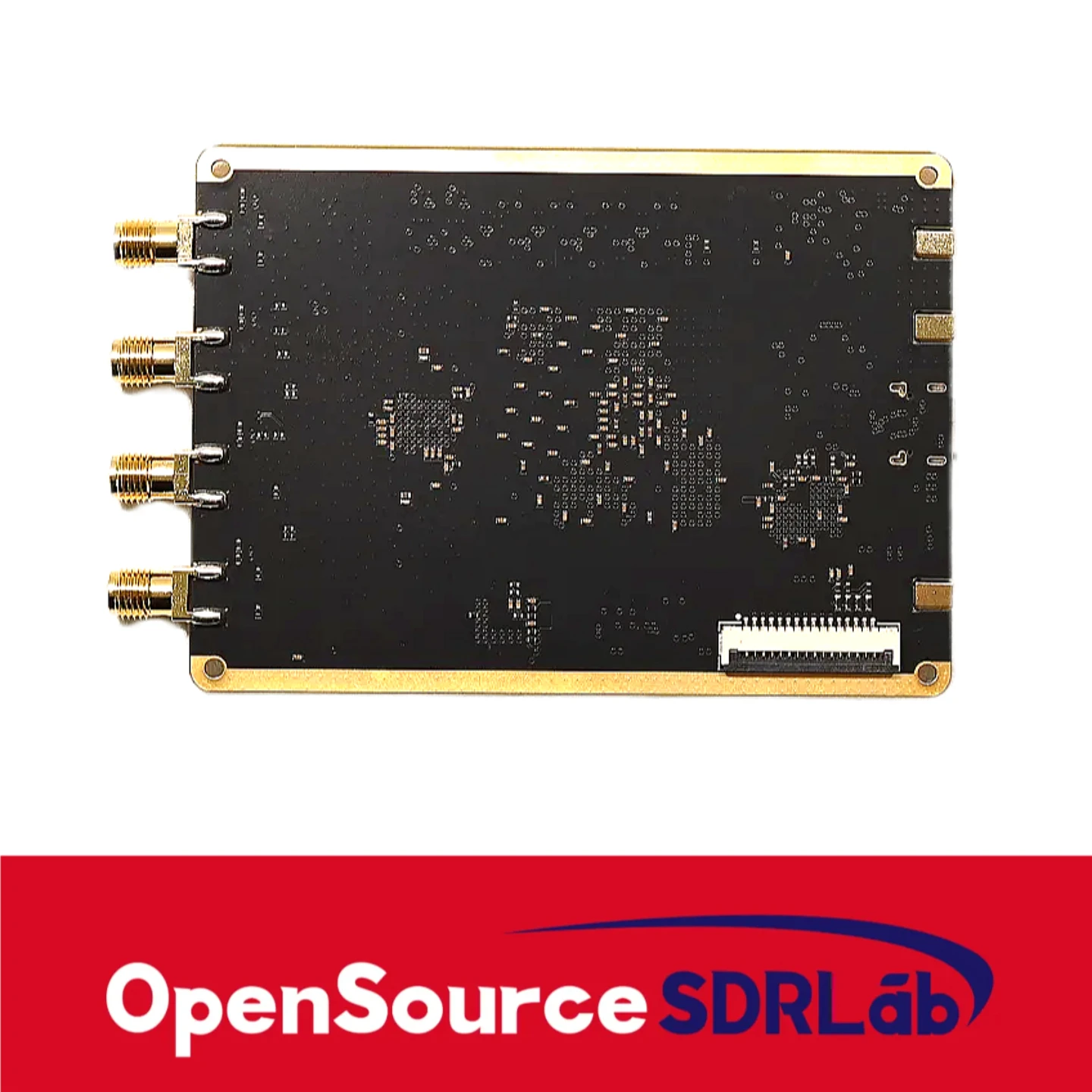

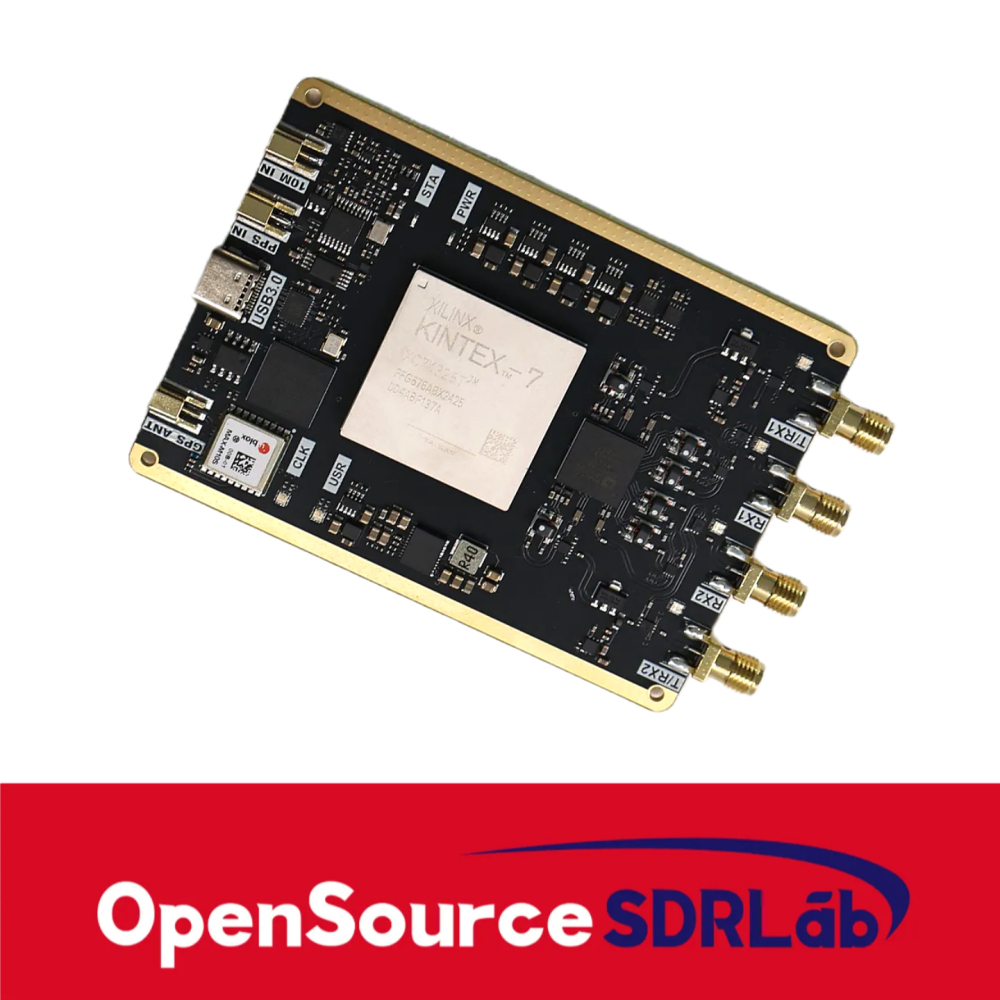

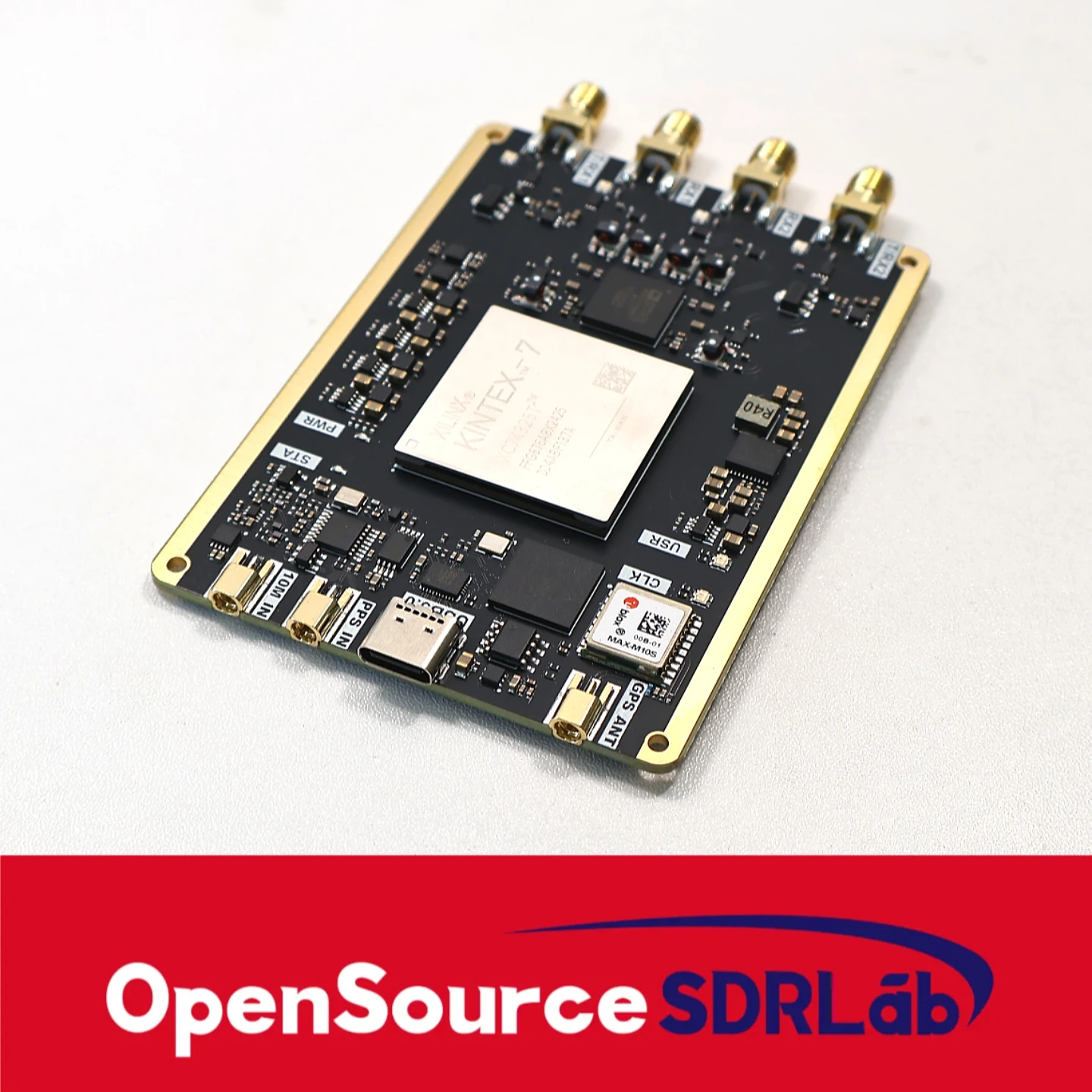

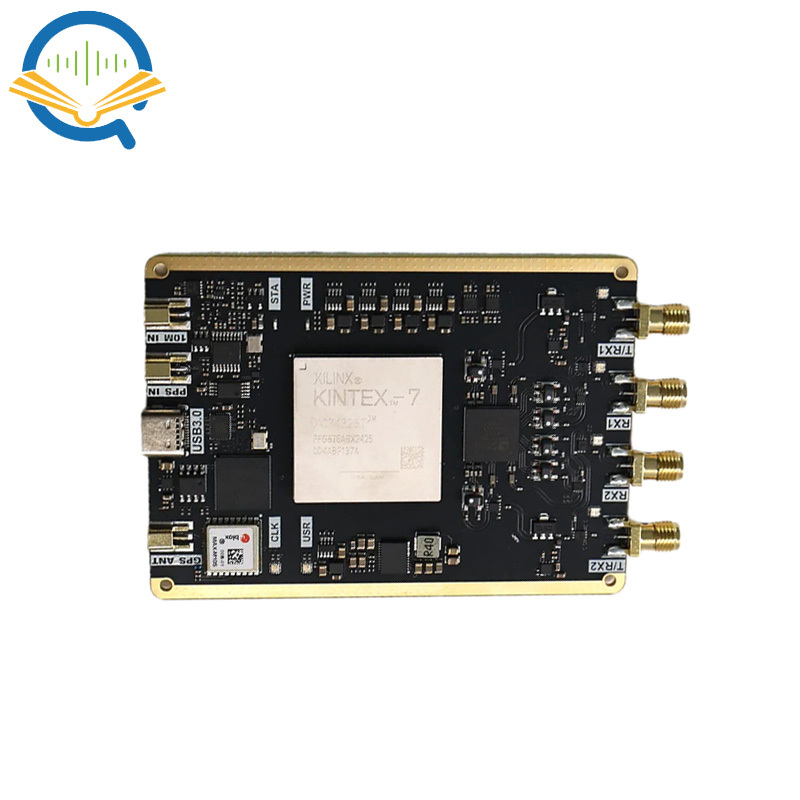

Product Details Display
