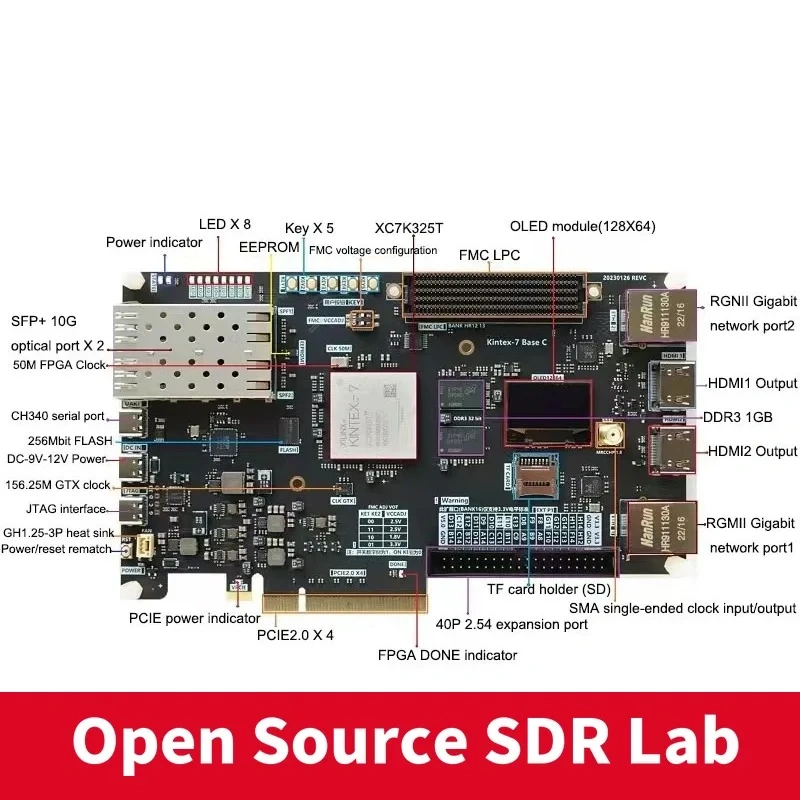

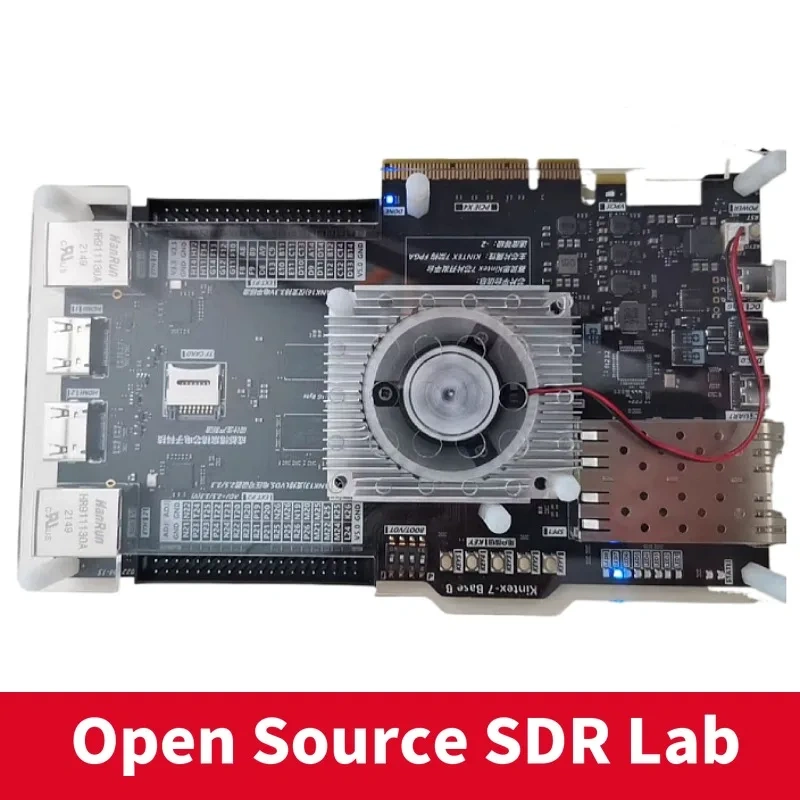

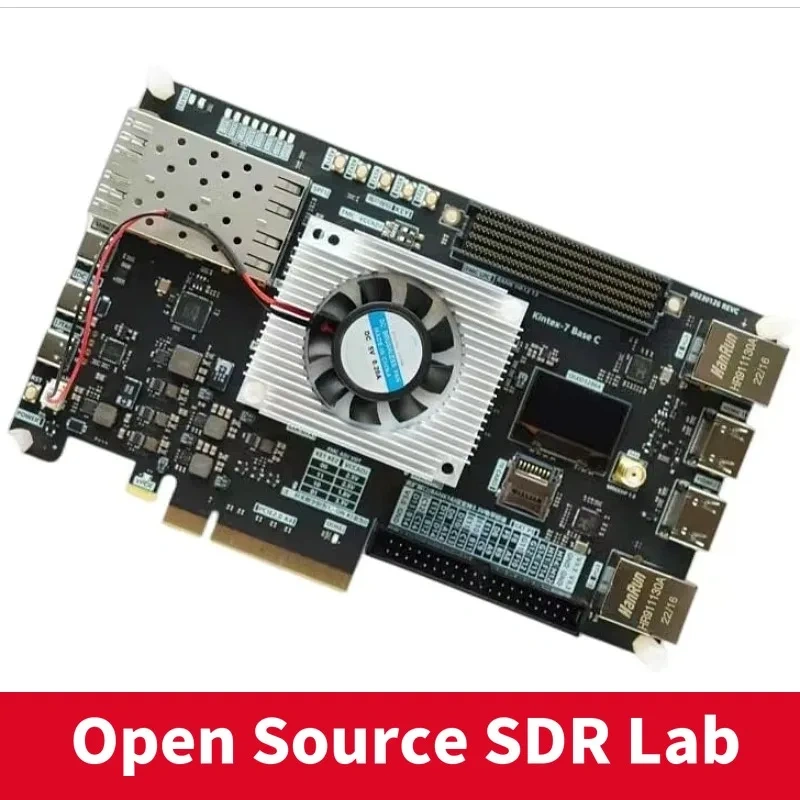

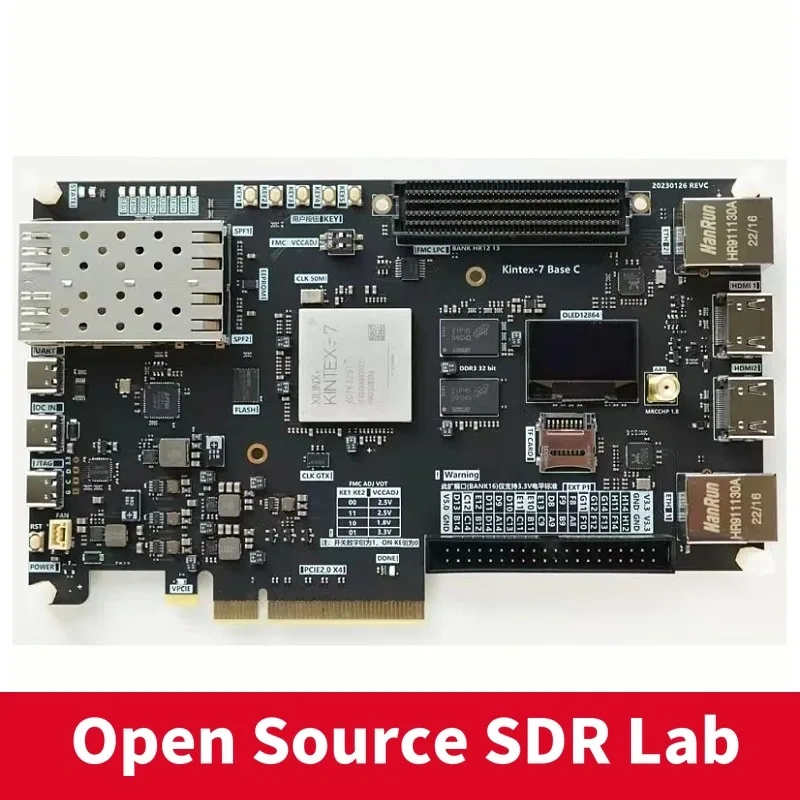

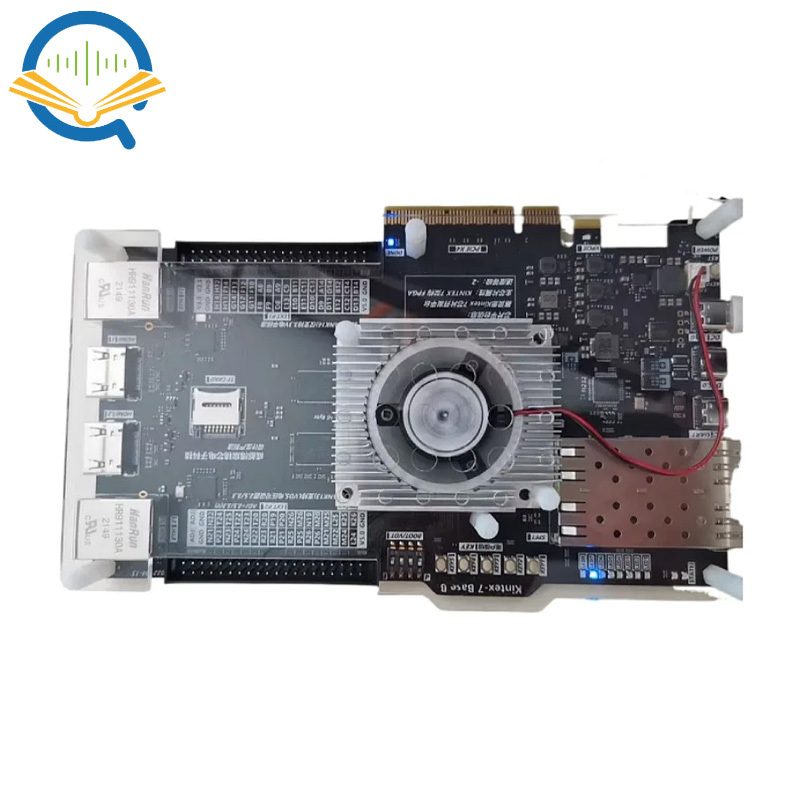

FPGA Xilinx Kintex-7 XC7K325T PCIE Development Board with Dual Gigabit Ethernet Ports Dual 10-Gigabit SFP+Optical Communication Ports HDMI-compatible Input and Output





The parameters of the main chip:

1) Main chip model: XC7K325T-2FFG676I

2) Chip grade: industrial grade

3) Recommended maximum speed of clock PLL: 709M

4) DDR3 model: dual-chip MT41J256M, 1GByte

5) Logic Unit (LC): 326080

6) Slices: 50950

7) DSP unit multiplier: 840

8) Trigger: 407600

9) RAM: 16020Kbit

10) Speed grade: -2

11) Number of GTX (12.5Gb/s): 8




Parameters of the development board:

1) Power supply voltage: 5V, current 2~5A.

2) Power supply mode: All TYPE-C ports can supply power, and the main power supply port is DC-M port.

3) PCIE power supply: The computer slot can power the development board, providing 12V to 5V/3.5A continuous current.

4) Clock resources: 50M single-ended crystal oscillator, 156.25M differential crystal oscillator (GTX).

5) Ethernet: Gigabit RTL8211E, dual network ports.

6) User buttons: 5 user buttons, 1 power-on/reset button.

7) Debugger: Onboard SMT2 download debugger, use a type-C cable to debug the download program.

8) Serial port and power port: one TYPE-C CH340 serial port, and an independent TYPE-C for power only.

9) SD card: a TF card socket, support SPI interface.

10) HDMI interface: two outputs, maximum support 1080@60HZ (default 30HZ), HDMI1 supports 720P input.

11) LED: 1 power dual-color LED, 4 FPGA dual-color LEDs, one DONE, one PCIE power supply.

12) Setting switch: a BOOT+BANK13 voltage setting dip switch used to start the setting.

13) FLASH of onboard FPGA: MT25QL256, 32M bytes.

14) EEPROM: AT24C02

15) PCIE interface: PCIE X 4, gen2, width is X8.

16) Expansion IO port: BANK16 (34 pins) 3.3V. BANK13 (34 pins) differential, supports 3.3 and 2.5. BANK16 only supports single-ended. BANK13 supports LVDS.

17) Optical communication interface: 2-channels SFP+, supporting up to 10G optical communication.


The Shipping list:

  • 1 X XC7K325T FPGA development board

  • 2 X TYPE-C data cable

  • 1 X TYPE-C power cable

  • 1 X heat sink

  • We provide schematic diagrams and sample programs, share them using Onedrive link.
