OpenSourceSDRLab FMC Expansion Board 40 Pin Expansion Port Module FMC to GPIO FMC Daughter Board LPC FL1010

Special attention: When using other manufacturers' 40PIN matching modules, please pay attention to the IO level standards. For example, when using a 40PIN seven inch LCD screen module, the IO level of the module is generally 3V3, while the FMC IO level is generally 1V8 or 2V5. The voltage of the FMC LA BANK on the development board needs to be adjusted to match the module, otherwise irreversible damage may occur.

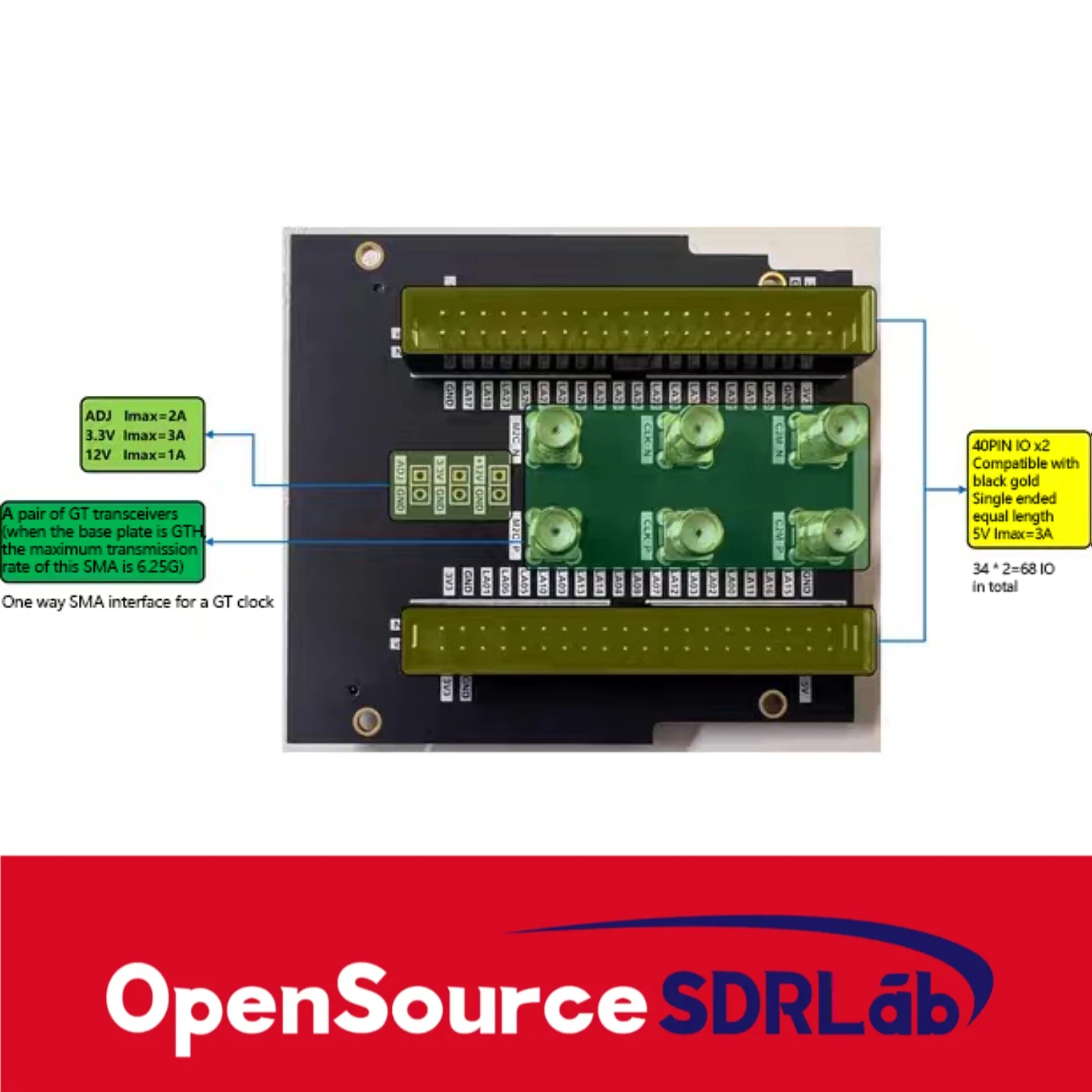

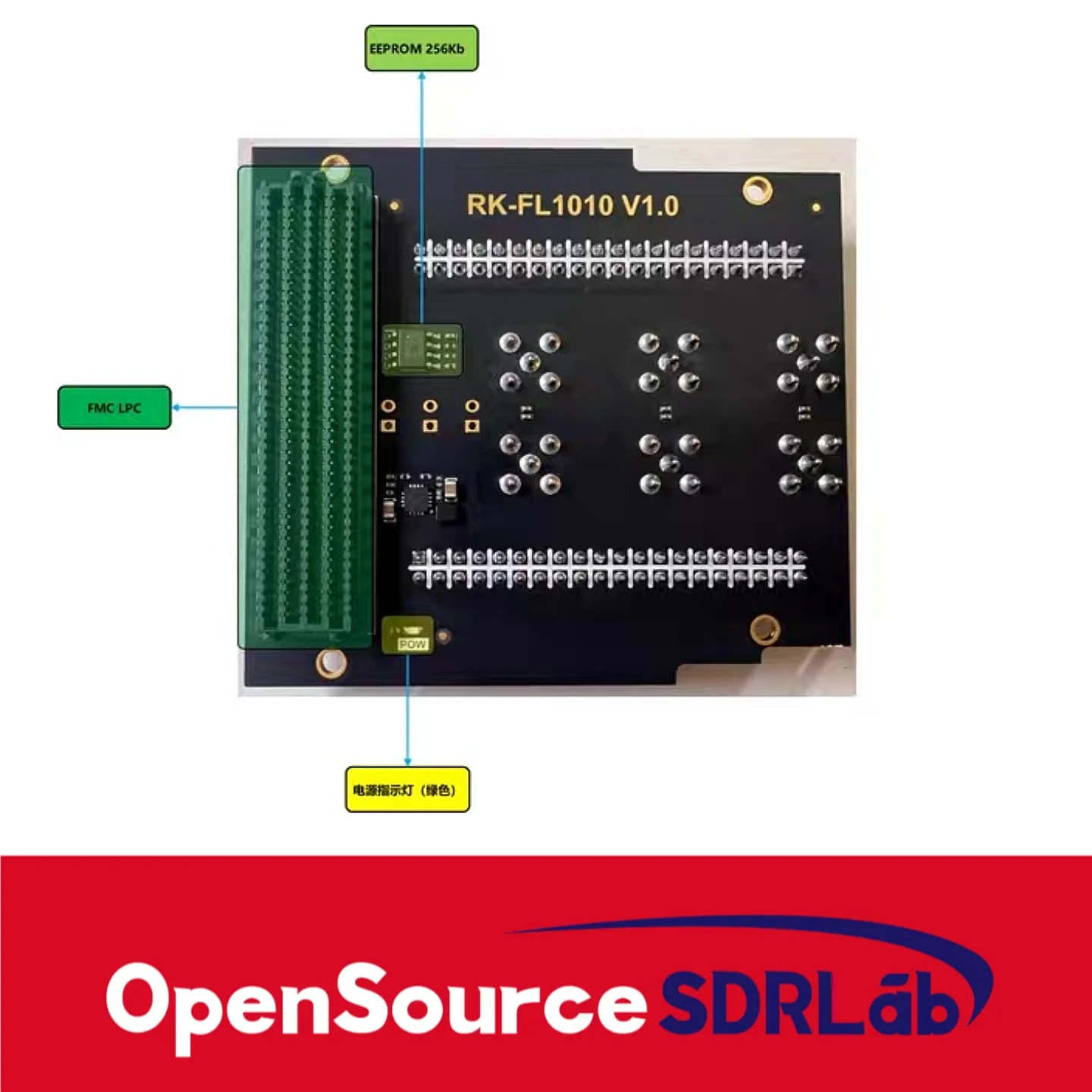

The interface of this daughter card is standard FMC LPC

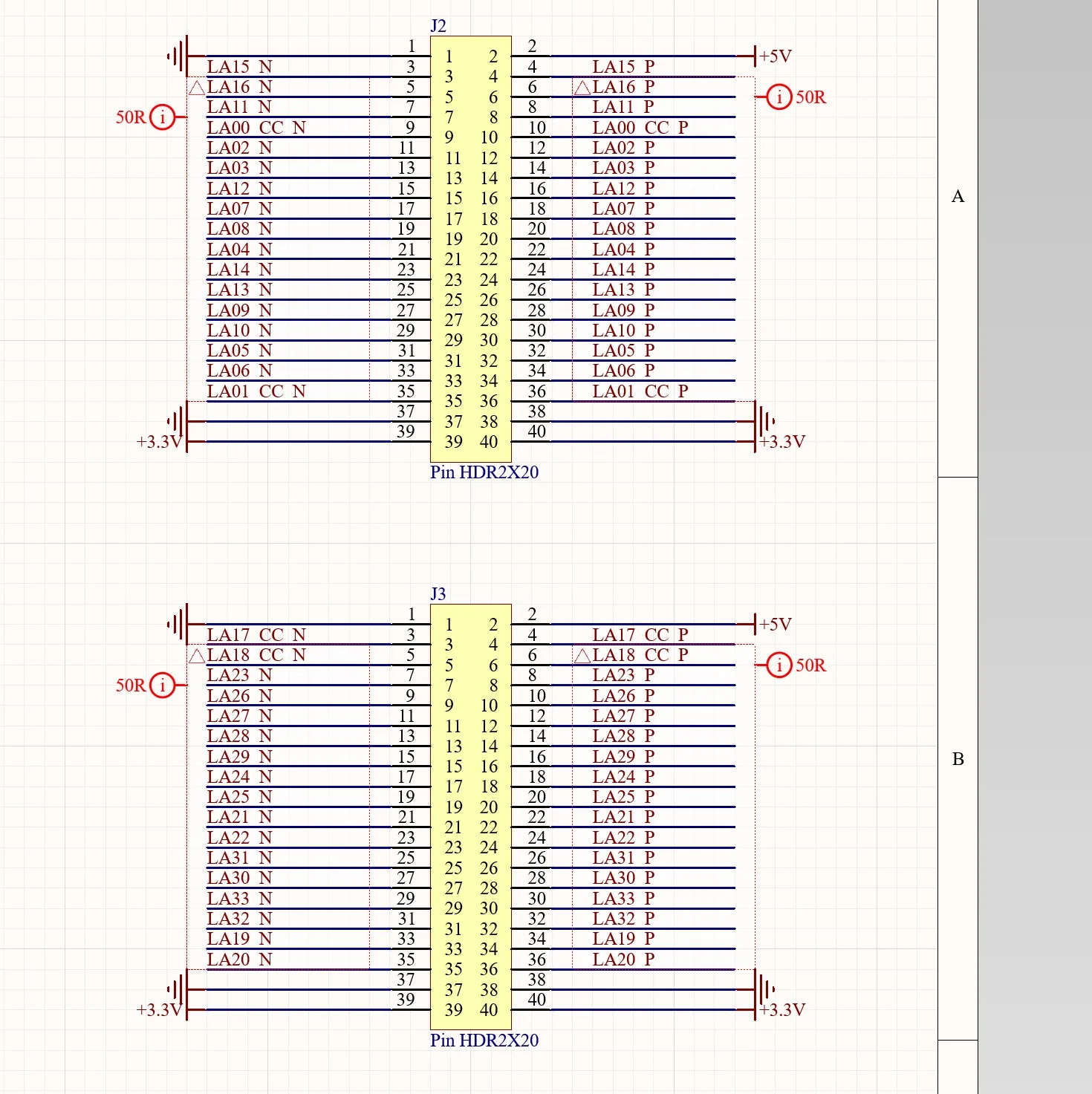

40PIN pin series compatible with ALINX (not applicable to other brands)
