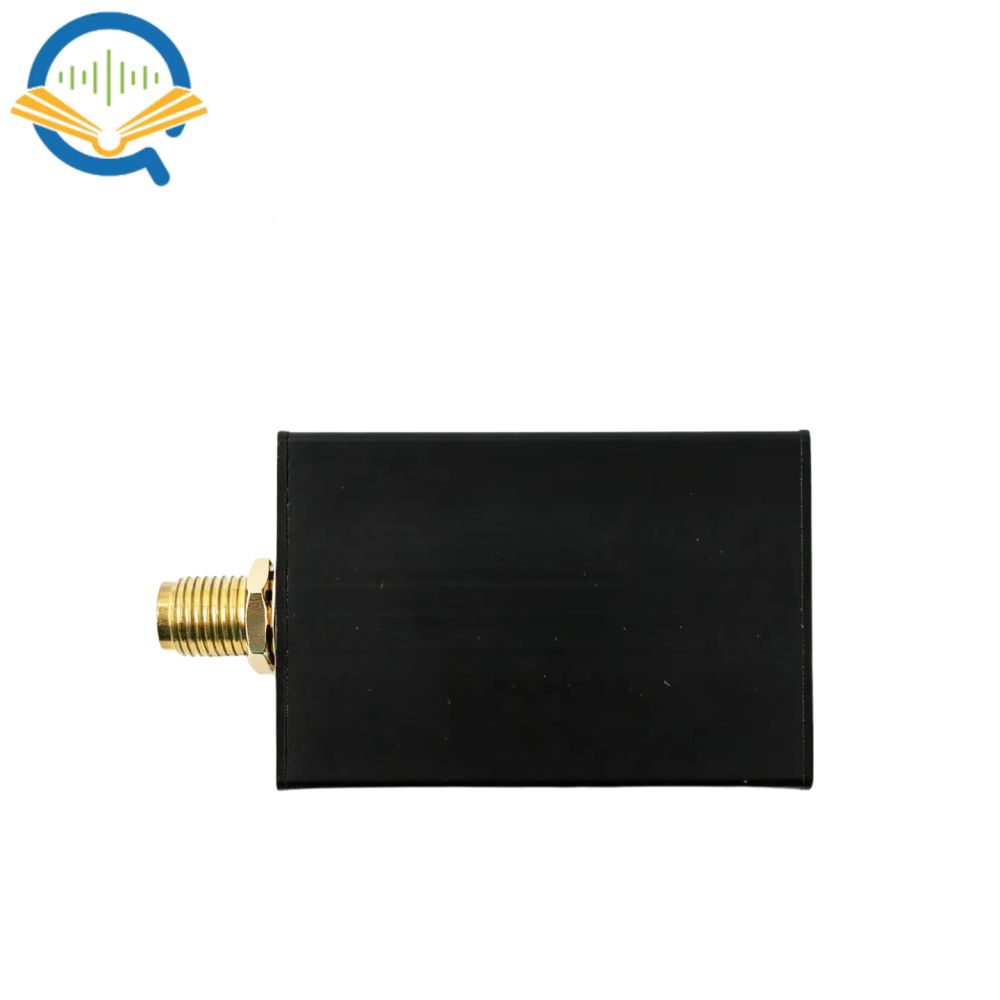

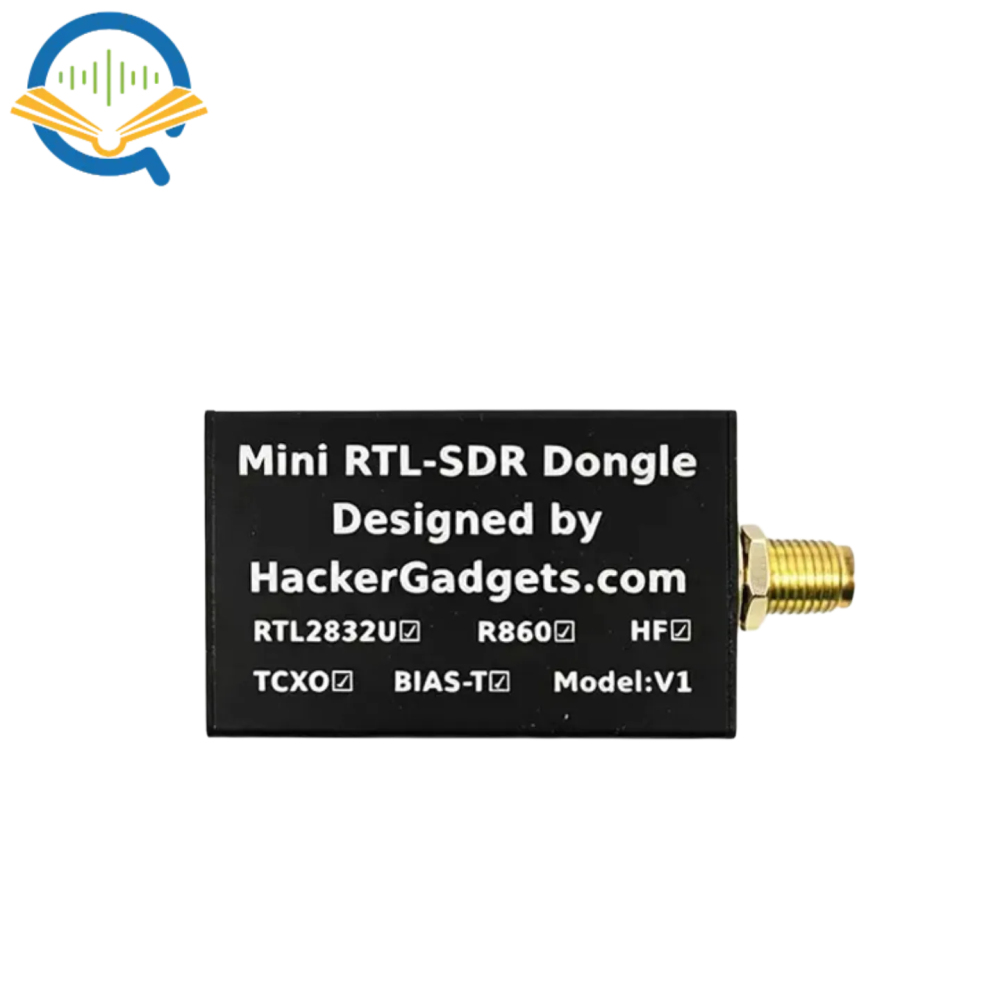

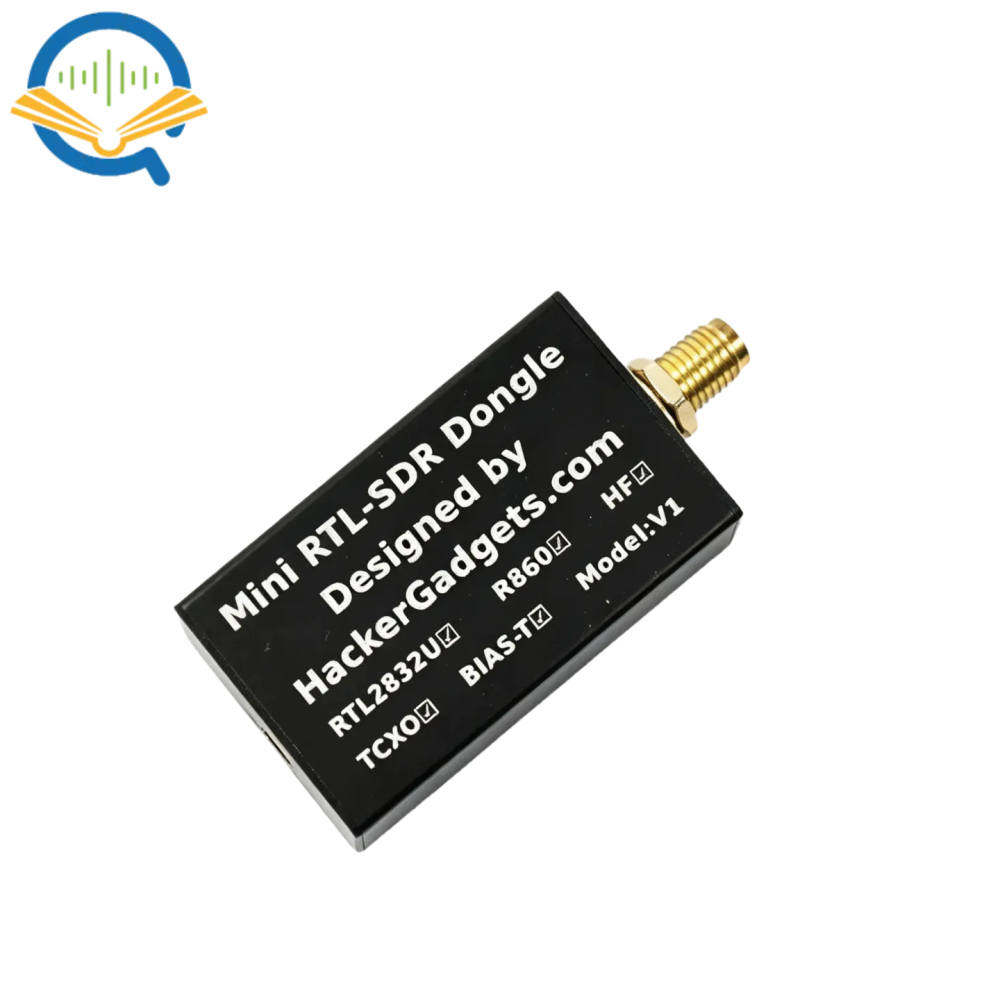

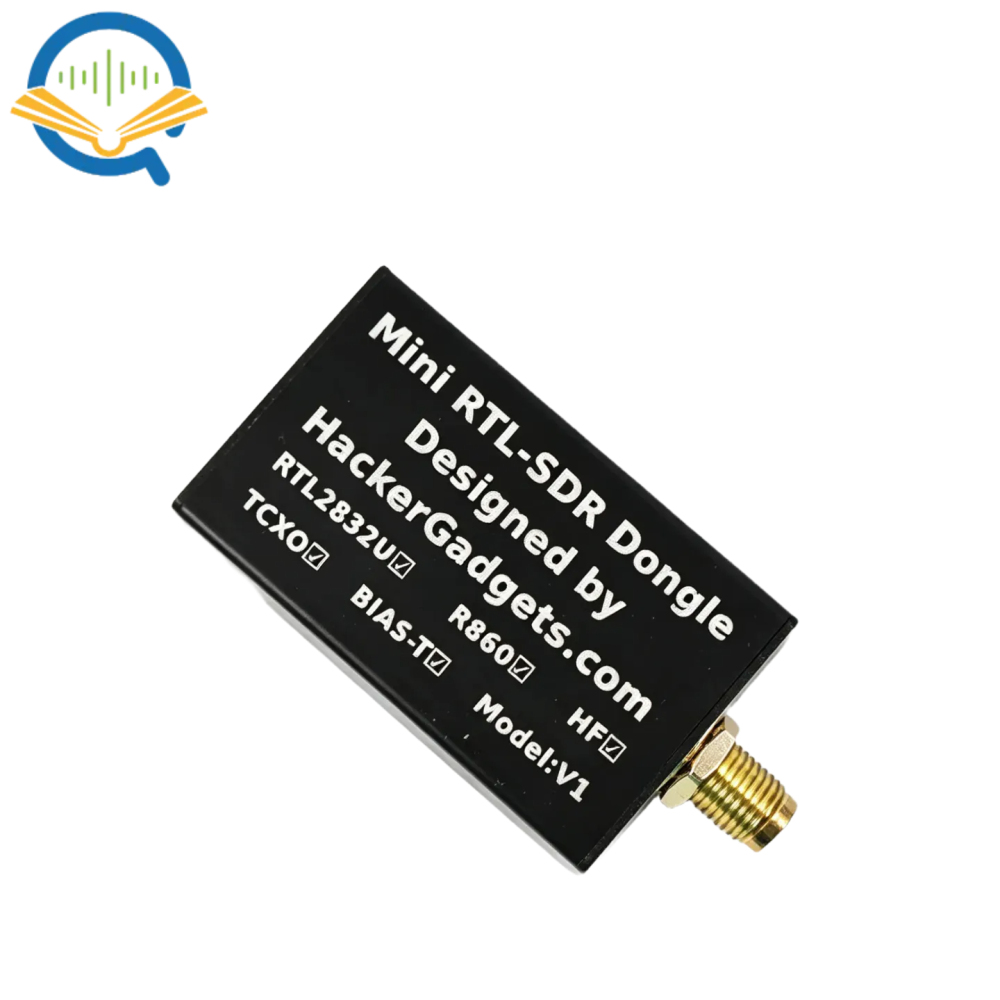

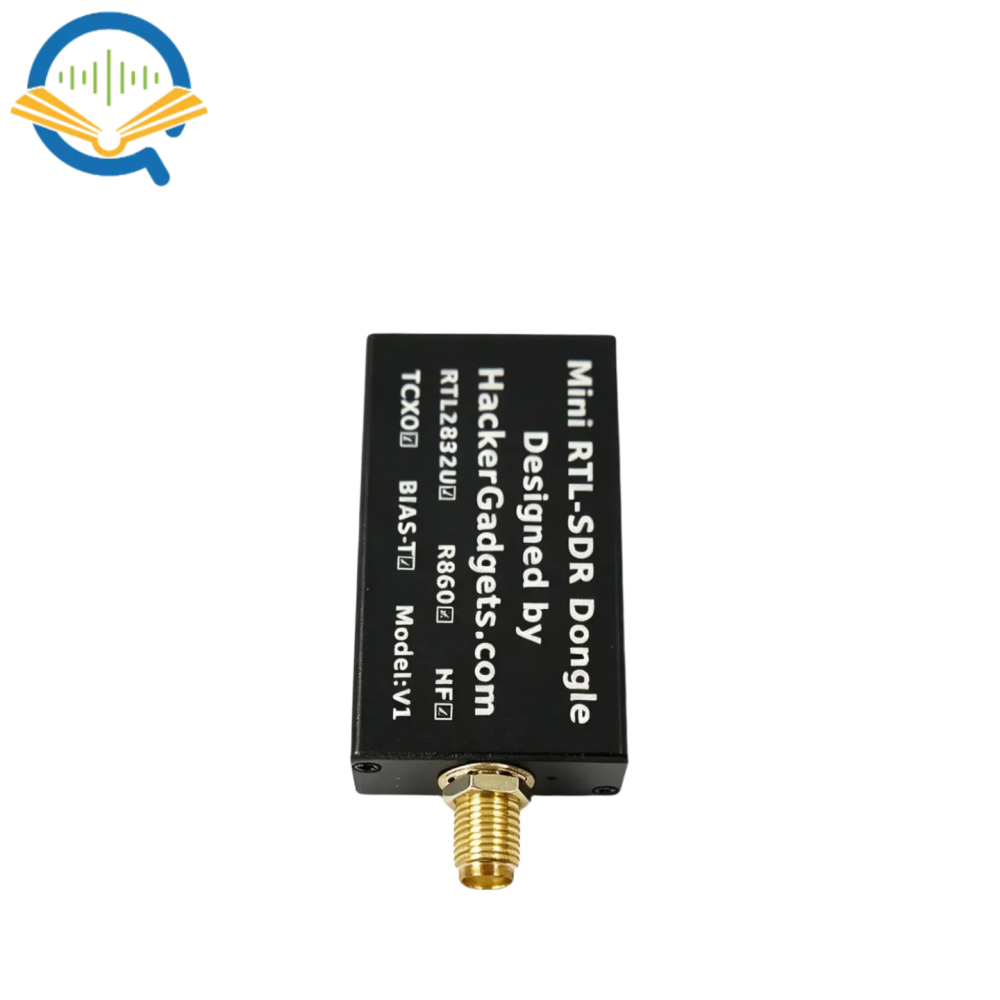

The Mini RTL-SDR Dongle is a compact, pocket-sized software-defined radio receiver housed in a premium CNC-machined aluminum alloy enclosure. Measuring just 54 × 26 × 10 mm, it packs the full RTL-SDR feature set — wide frequency coverage, TCXO precision, 5V bias tee, and HF direct sampling — into a USB-C form factor built for portability and durability.
Whether you're scanning radio frequencies, decoding aircraft transponders, analyzing spectrum, or receiving GPS signals, this dongle delivers professional-grade SDR performance in your pocket.
FREQUENCY COVERAGE
100 KHzHF · VHF · UHF · L-band1.74 GHz
Key Features
RTL2832U + R860 Tuner
100 KHz – 1.74 GHz
RTL2832U demodulator chipset
R860 wideband tuner
Covers HF, VHF, UHF and L-band
Ideal for ADS-B, NOAA, FM, ATC, and more
100 KHz – 1.74 GHz
TCXO Oscillator
Near-zero temperature drift
Temperature-compensated crystal oscillator
1 PPM max. initial offset, 0.5–1 PPM temperature drift
Accurate tuning across operating temperatures
Significantly reduces frequency drift vs standard XO
Essential for stable decoding and narrow-band reception
Precision · Stable · Low drift
5V Bias Tee
Power LNAs via coax
5V bias tee injected through the coax cable
Powers LNA4ALL, HABAMP, ADS-B LNA and more
Powers active antennas without a separate supply
Software-controllable on/off
LED status indicator on the side
5V · Software control · LED status
HF Direct Sampling
100 KHz – 28.8 MHz
Receive HF bands without an upconverter
Covers 100 kHz – 28.8 MHz in direct sampling mode
SW, MW, LW, amateur HF bands and more
Enable via software (e.g. SDR#, GQRX, SDR++)
100 kHz – 28.8 MHz · No upconverter
Aluminium Alloy Housing
CNC machined · 54 × 26 × 10 mm
Full CNC-machined aluminium alloy enclosure
Excellent RF shielding, reduces interference
Passive heat dissipation for sustained operation
Compact 54 × 26 × 10 mm — pocket-sized
Robust construction for field use
Aluminium · RF shielded · Compact

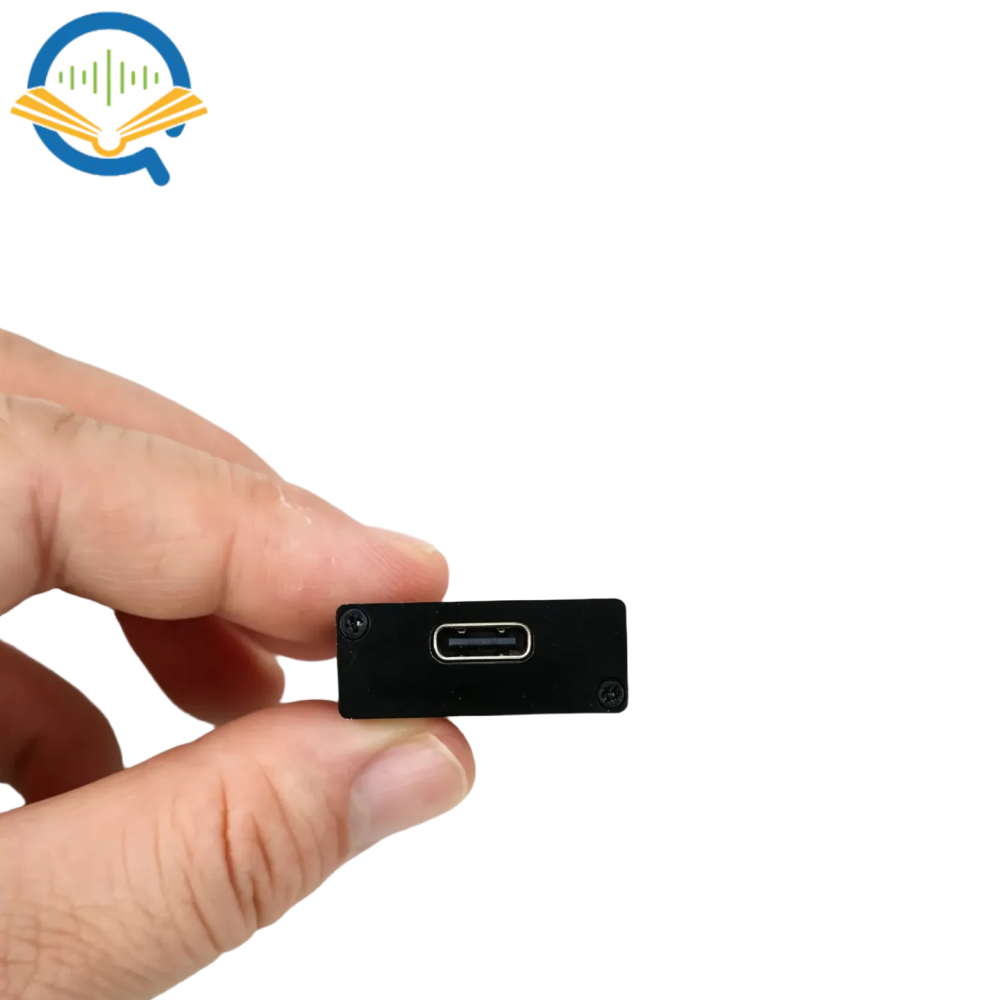

USB-C Interface
Modern reversible connector
USB-C connector — no more wrong-way plugging
Compatible with modern laptops, tablets, and SBCs
Works with USB-C to USB-A adapters
Plug-and-play on Linux, Windows, and macOS
USB-C · Reversible · Plug & play
Applications
Aviation & Marine
ADS-B, ATC, AIS tracking
ADS-B aircraft tracking (1090 MHz)
Air traffic control voice (118–137 MHz)
AIS marine vessel tracking (162 MHz)
ADS-B · ATC · AIS
Weather & Satellites
NOAA, GOES, Meteor-M
NOAA weather satellite imagery (137 MHz)
Meteor-M2 LRPT weather images
GOES geostationary satellite data
NOAA · Meteor-M · GOES
Signal Intelligence
Spectrum analysis & decoding
Trunked radio system monitoring
ISM band & IoT signal analysis
Pager decoding (POCSAG, FLEX)
RF spectrum scanning & recording
Spectrum · Decode · Monitor
⚡ Bias Tee: The 5V bias tee is disabled by default and must be enabled in software (SDR#, GQRX, SDR++, rtl_biast). The LED on the side indicates when bias tee power is active. Use with compatible LNAs and active antennas only — do not enable when connected to passive antennas without a DC block.
The Mini RTL-SDR Dongle combines proven RTL2832U + R860 performance with a precision TCXO, software-controlled 5V bias tee, and HF direct sampling — all inside a CNC aluminum shell that fits in your shirt pocket. The USB-C interface makes it universally compatible with any modern device. Whether you're a beginner tuning into FM radio or an advanced user decoding satellite signals, this dongle is the definitive compact SDR tool.
