New upgrade Xilinx Development Board ZYNQ7000 XC7Z010 XC7Z020 with Xilinx Programmer USB HDMI-compatible Gigabit Ethernet PYNQ

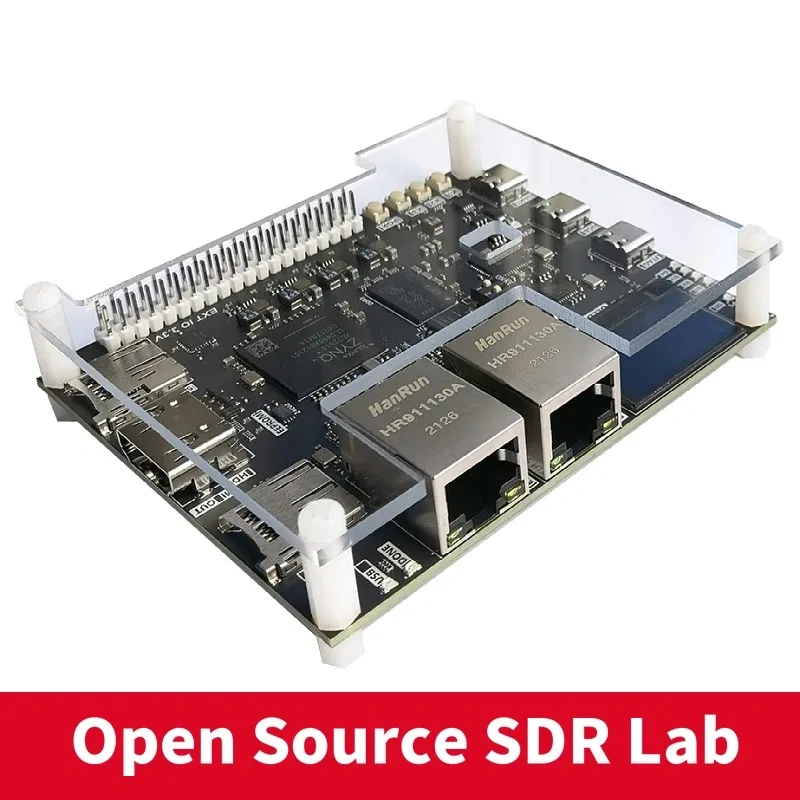

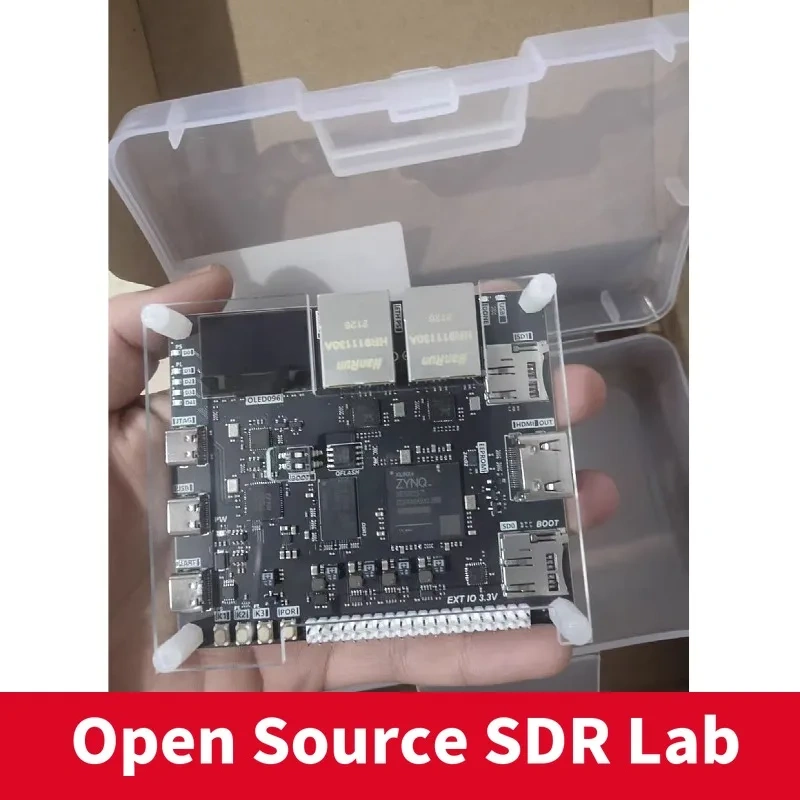

The latest upgraded version of the development board is compatible with all the functions of the old version.

The old version:

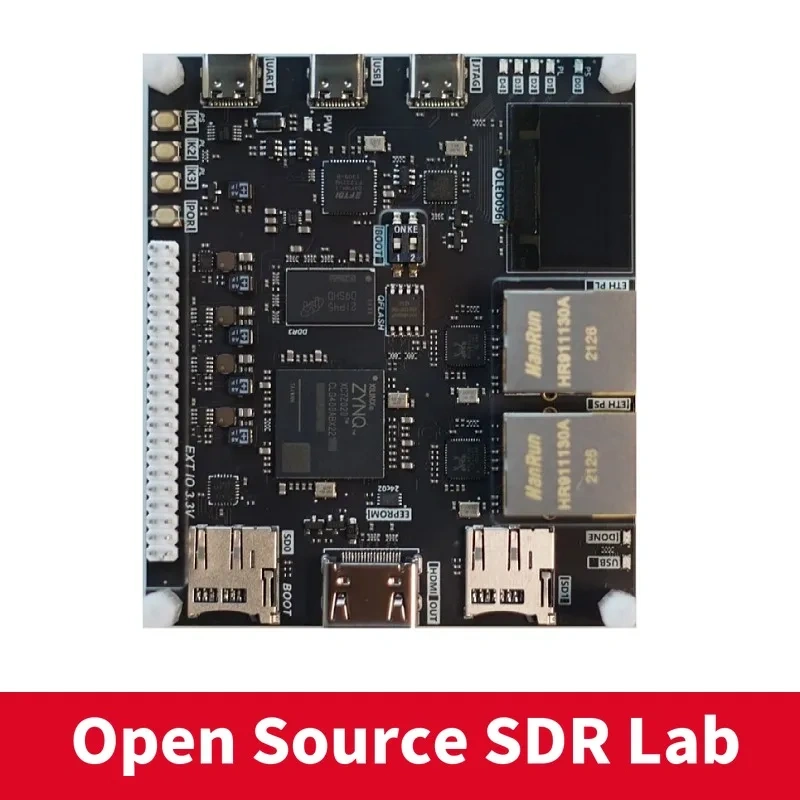

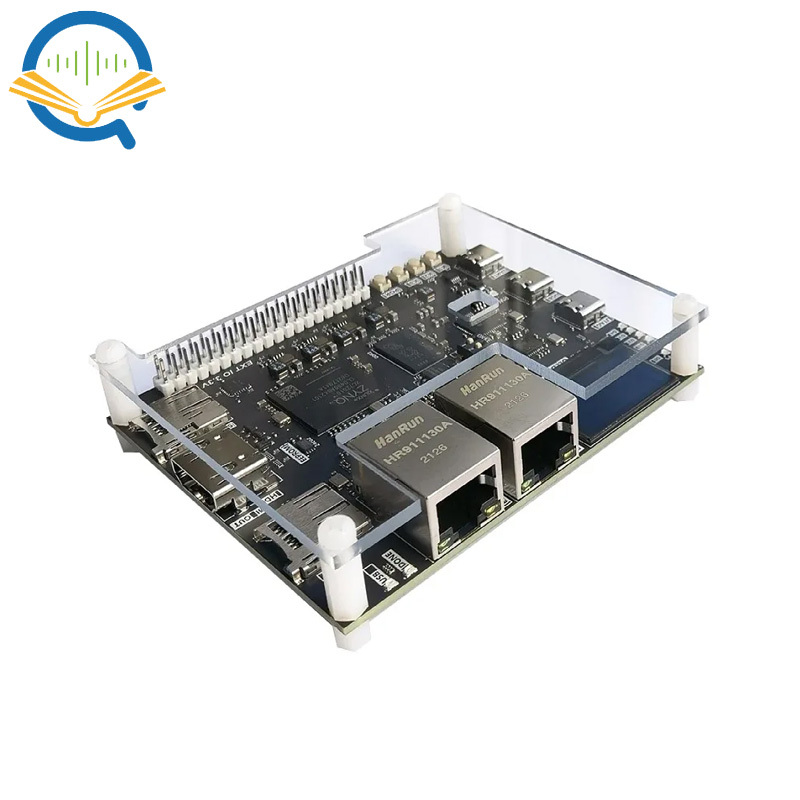

The new version:

Chip parameters:

1. Main chip: XC7Z010-CLG400-1 or XC7Z020-CLG400-2.

2. Processor model: dual core Cortex-A9.

3. Processor frequency: 666MHZ (XC7Z010), 766MHZ (XC7Z020).

4. DDR3(PS): 512MByte, 16-bit wide, 1066M data rate.

5. Logical unit(LC): 28K (XC7Z010), 85K (XC7Z020).

6. Lookup table(LUT): 17600 (XC7Z010), 53200(XC7Z020).

7. DSP unit multiplier: 80(XC7Z010), 220(XC7Z020).

8. Trigger: 35200(XC7Z010), 106400(XC7Z020).

9. RAM: 2.1MBit(XC7Z010), 4.9MBit(XC7Z020).

10. Speed class: -1(XC7Z010), -2(XC7Z020).

11. Temperature grade: Consumer grade(XC7Z010), industrial grade(XC7Z020).

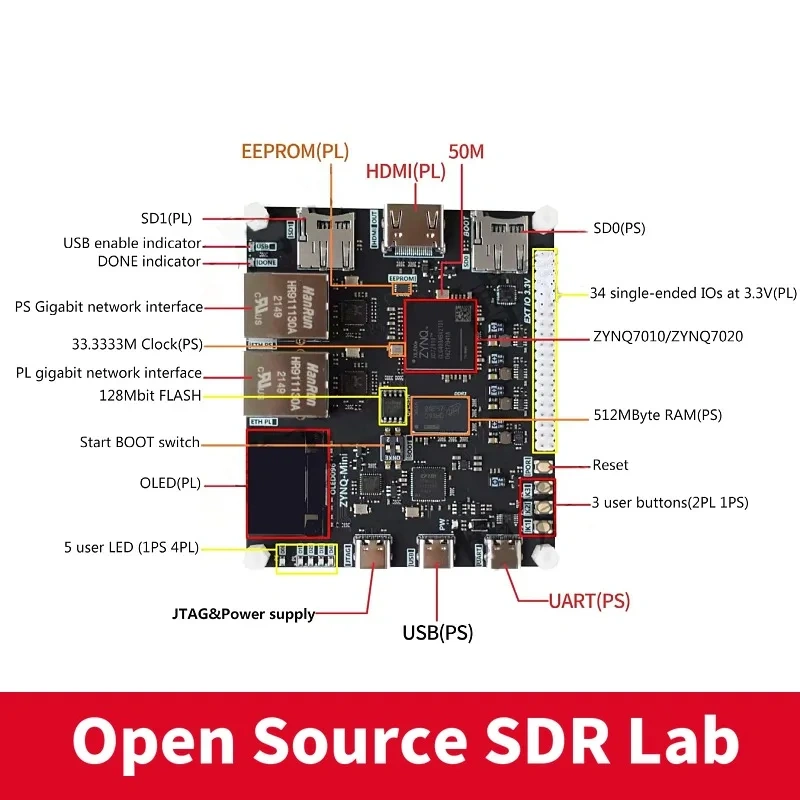

Development Board Parameters:

1. Power supply mode: all TYPE-C ports can supply power. When running Linux alone, please use the DEBUG port for power supply to ensure the stability of the USB.

2. Development board clock resources: 33.33M (PS), 50M (PL)

3. Ethernet: Gigabit RTL8211E, one PS ETH0, one PL.

4. Debugger: Onboard SMT2 programmer debugger, supporting all development of ARM and FPGA.

5. Serial port: One PS CH340 serial port.

6. SD card: Two PS TF card holders, SD0 support for boot.

7. HDMI interface: one HDMI output, maximum support 1080@60HZ.

8. LED: 3 dual-color LEDs, a DONE signal indicator, a USB PHY power enable indicator.

9. Buttons: two PS buttons and one PL button, one reset button.

10. Start setting switch: a BOOT dial switch used to start setting.

11. FLASH: 128Mbit.
