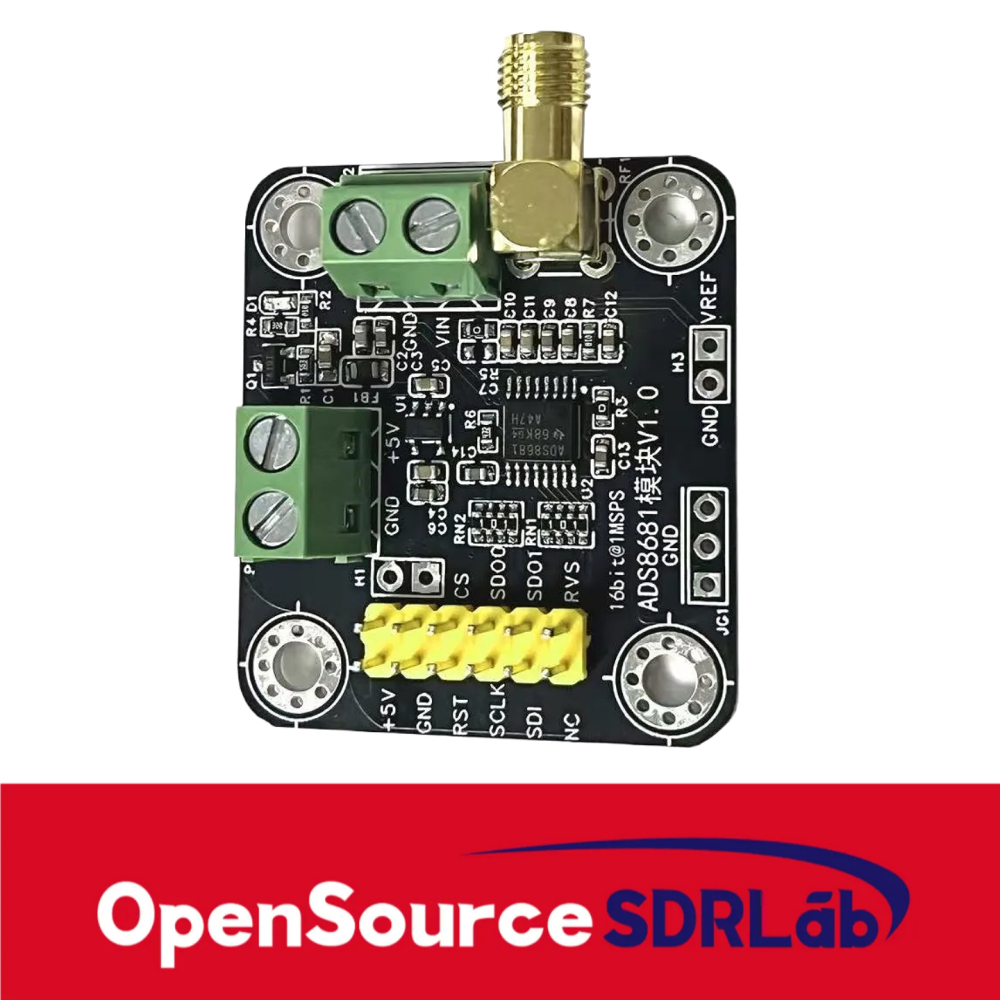

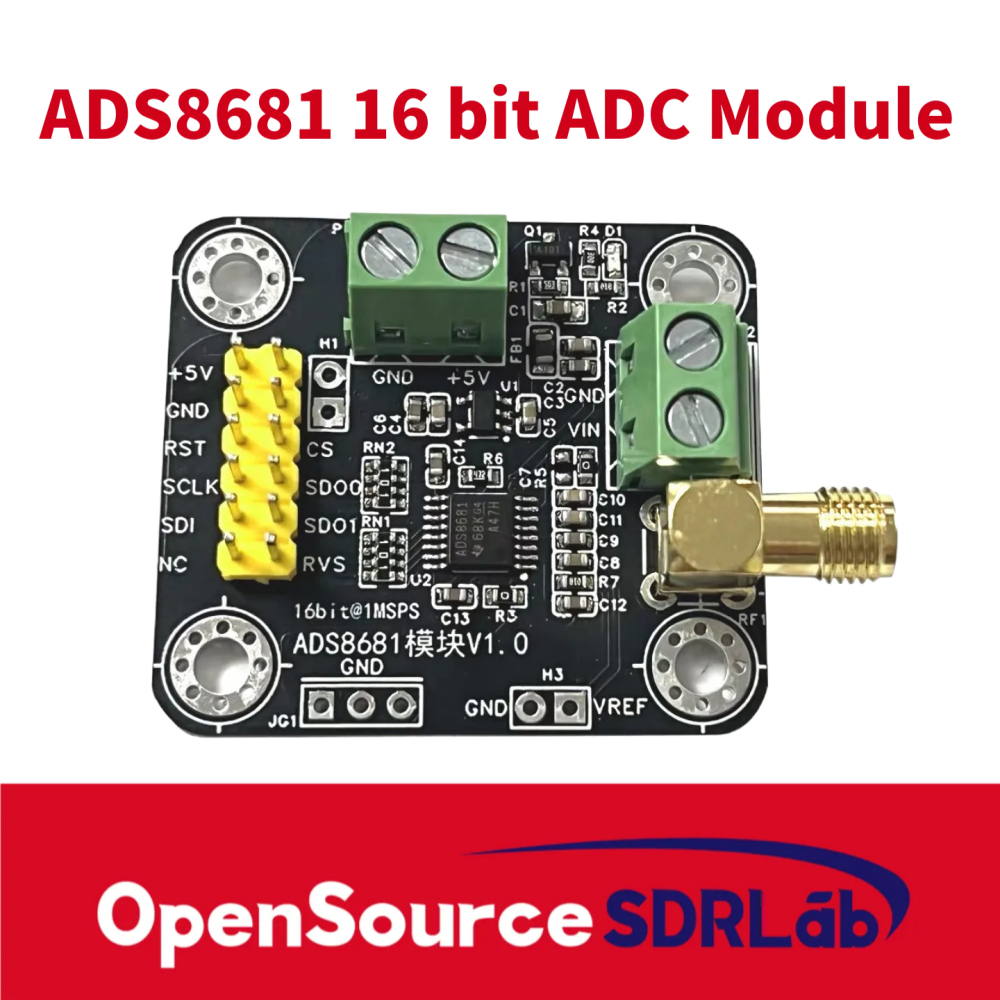

OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage

SKU:
$39.00 $60.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
1/1
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • OpenSourceSDRLab ADS8681 Module Analog-to-Digital Converter 16 bit ADC Data Acquisition Sampling Rate 1MSPS Supports Single and Dual Stage
  • Description


Product Parameters
Module Name: ADS8681 Module,

Module Type: 16 bit analog-to-digital conversion module (ADC)

Module power supply range: Single power supply DC 5V (cannot exceed 5.5V)

Input voltage range: ± 12.228V, configured input register parameter as 0

                                          ± 10.24V, configure input register parameter as 1

                                          ± 6.144V, configured input register parameter as 2

                                          ± 5.12V, configured input register parameter to be 3

                                          ± 5.12V, configured input register parameter as 4

                                          +12.228V- 0V， Configure the input register parameter to 8

                                          +10.24 V- 0V， Configure the input register parameter to 9

                                          +6.144V- 0V， Configure the input register parameter to 10

                                          +5.12V- 0V， Configure the input register parameter to 11

Control level: 3.3V

Number of input channels: single channel

Communication protocol: SPI

Reference voltage: Internal reference 4.096V

Sampling rate 1MHz Input bandwidth: 15k (-3dB)

Module protection: Power reverse protection (without voltage and current limiting protection)

Module input impedance:>1M Ω

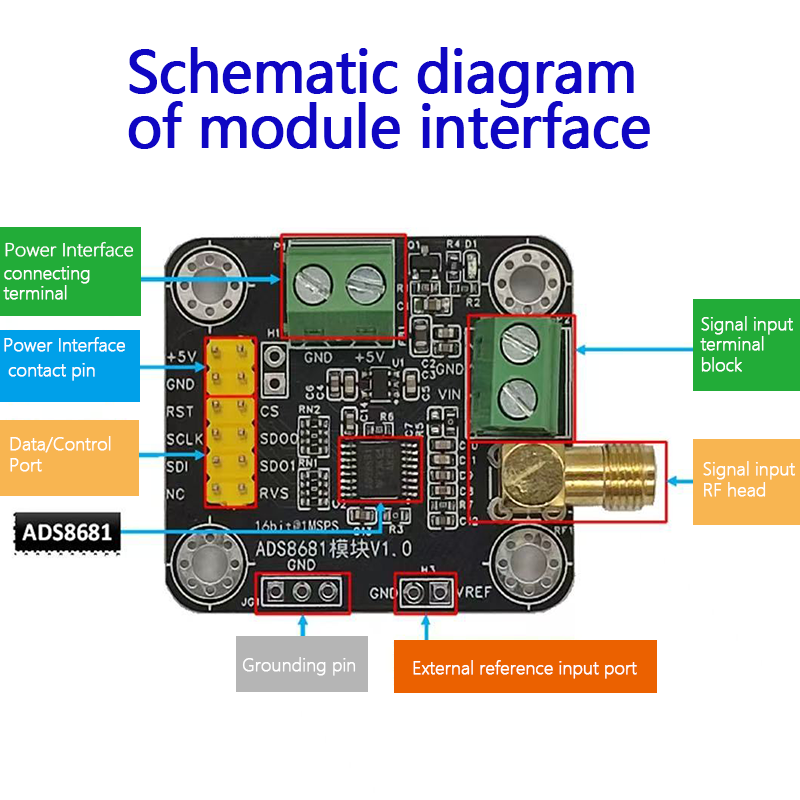

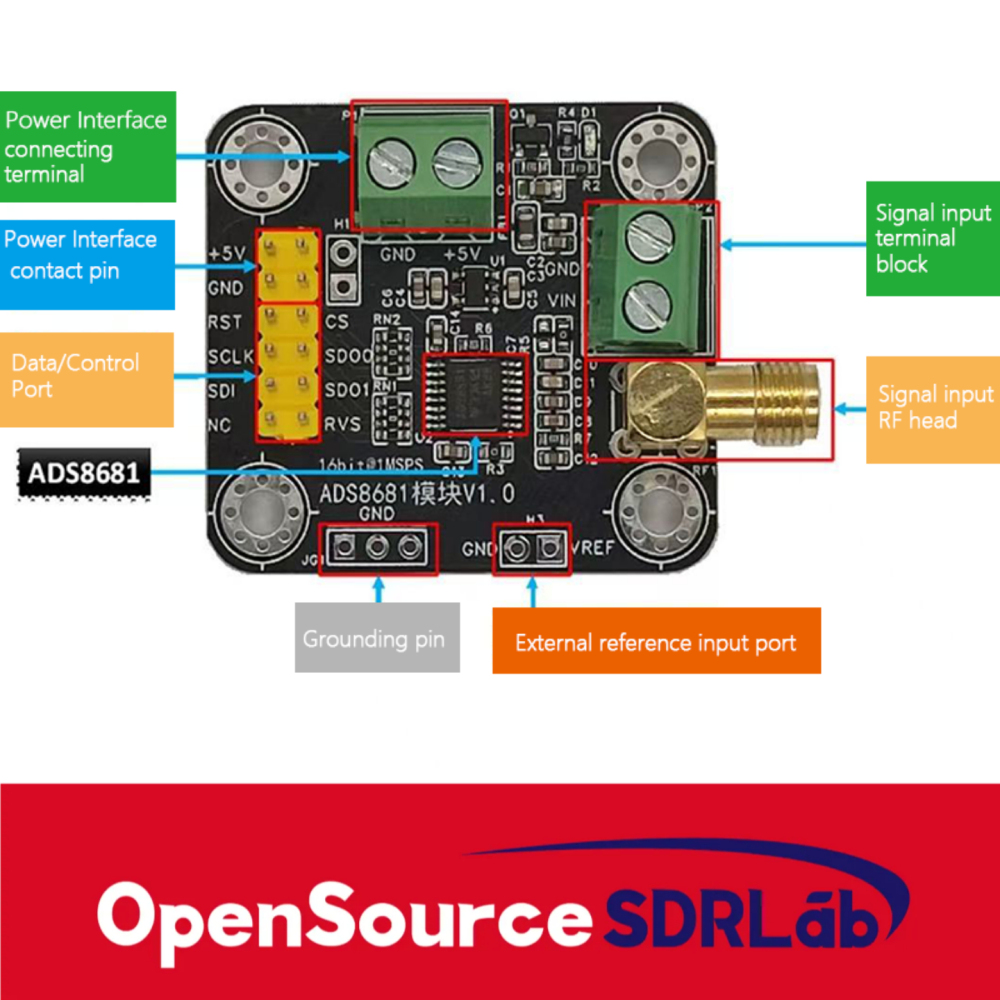

Output interface: 2.54mm dual row pin interface

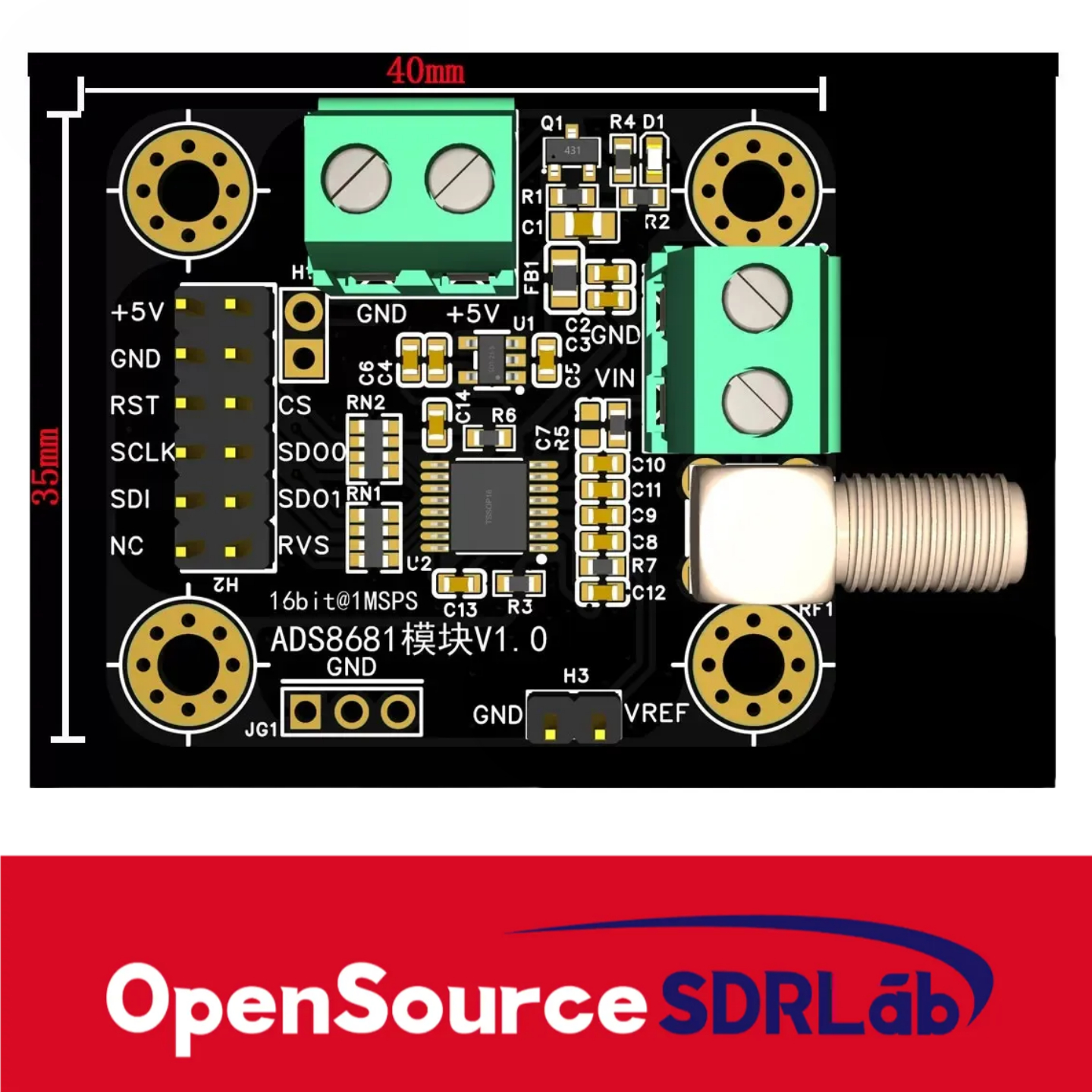

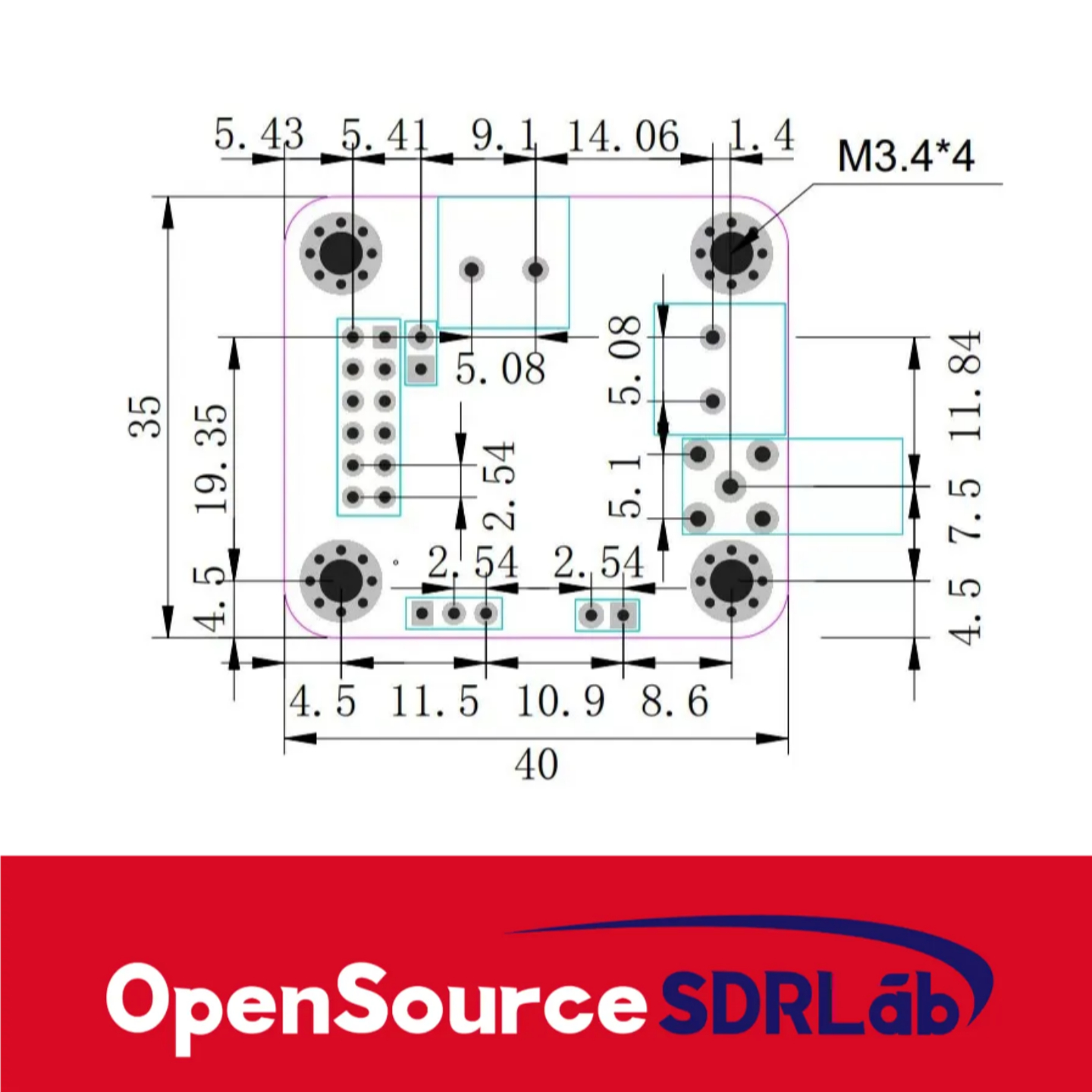

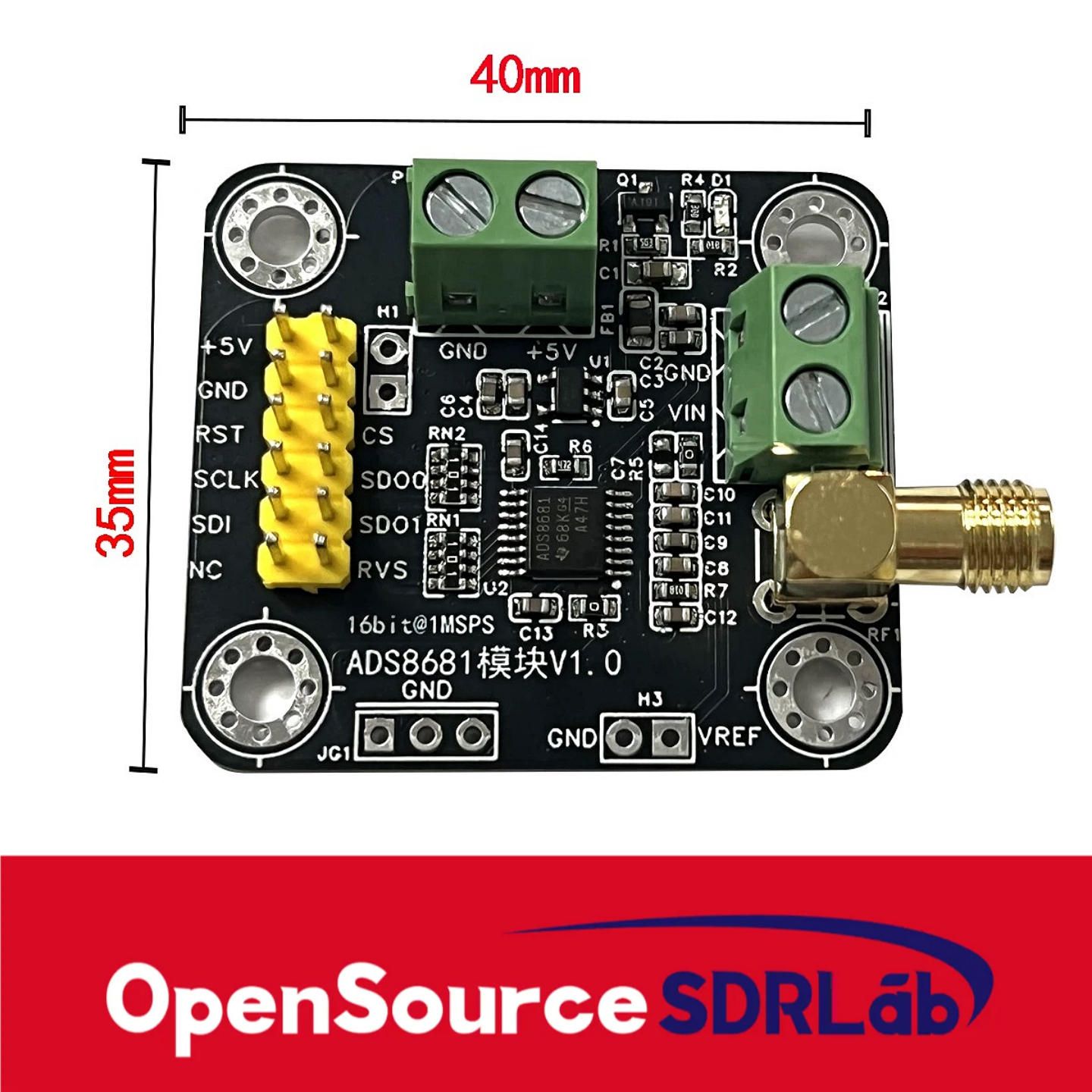

Module size: 40 * 35 * 12 (length * width * height mm)
