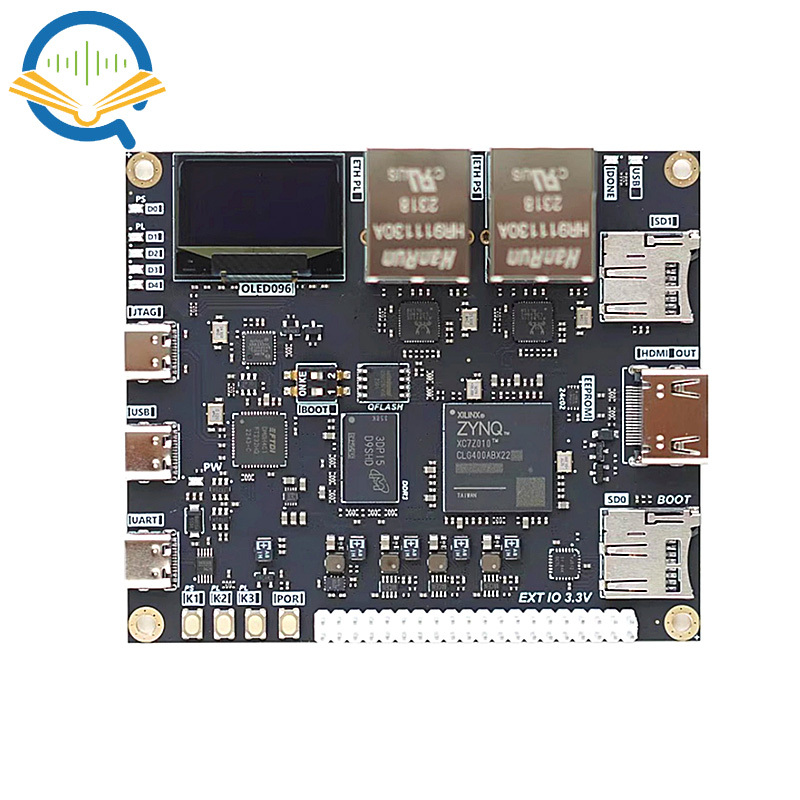

OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools

SKU:
$87.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Bundle:
    ZYNQ7010
    ZYNQ7020
Quantity:
Add to Favorites (0)
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
1/1
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • OpenSourceSDRLab FPGA Development Board ZYNQ7010 7020 XILINX Development Tools
  • Description

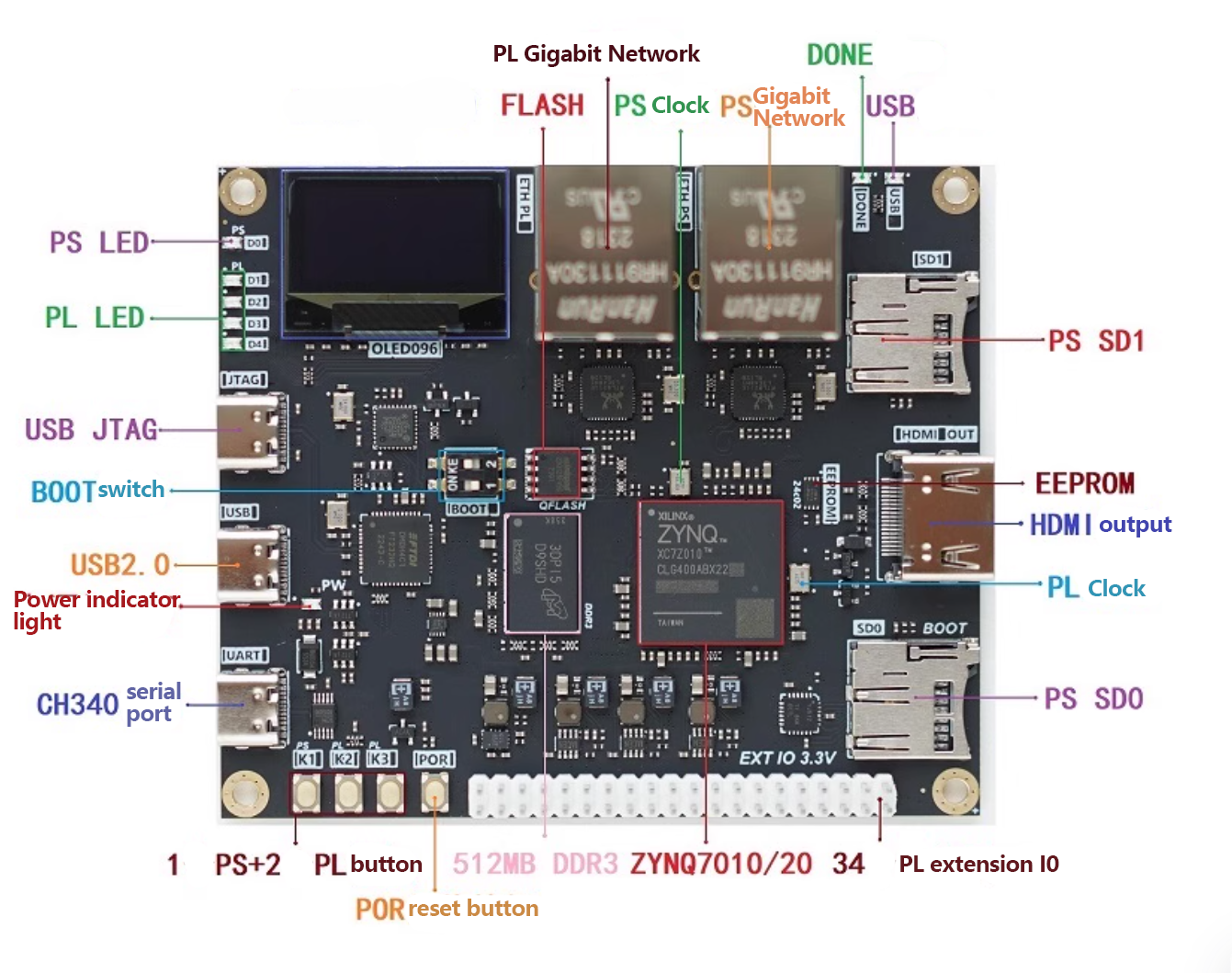

Development board functional interface description


Development board power supply: powered through TYPE-C interface. All USB ports on the development board can be powered

Development board clock: 33.33M (PS), 50M (PL)

Ethernet: Gigabit RTL8211E, RGMII interface, one ETHO and one PL for PS

USB interface: PS USBO, USB2.0, supports HOST, can be extended with TYPE-C HUB

Serial port and power port: One PS UART1 CH340 serial port, TYPE-C

HDMI interface: One PL HDMI output interface, maximum support 1080@60HZ

SD card: PS SD0 and SD1, SD0 can boot (SD supports up to 32GB)

User LED and buttons: one PS pin button, two PL pin buttons: one PS LED, four PL LEDs

Onboard OLED module: 0.96-inch 128 * 64 monochrome 0LED, SPI interface, located in PL

Onboard FLASH: PS FLASH, W25Q128FVSG, 128Mbit (16MB)

40 pin extended I0 port: includes 34 single ended 10 ports, on PLBANK34, 3.3V standard; The pin provides external power supply of 5V and 3.3V, with 10 signals of equal length

System reset: a system reset (POR) button

Development board indicator lights: DONE, USBCPEN, power plug indicator light

Development board power system: onboard core power supply: 1.0V/6A; Other channels: 1.8V/3A, 1.5V/3A, 3.3V/3A; Expanding 10 ports of 40P BANK34 VCCO voltage: 3.3V
