B210 mini——An economical and efficient software defined radio (SDR) experimental platform that uses UHD drivers to maximize compatibility with existing software and development platforms.
Features:
- B210mini supports dual channel simultaneous reception and transmission, i.e. 2X2MIMO support.
- MIMO (Multiple Input, Multiple Output) is a wireless communication technology that uses multiple antennas to simultaneously transmit and receive data, improve data rate, system capacity, resist interference and fading, expand coverage, and achieve spatial multiplexing. It is suitable for mobile communication fields such as LTE, WiFi, 5G, etc.
- The integration of 0.5PPM VCTCXO on the board can achieve GPS signal simulation and 4G/5G base station experiments without the need for expensive GPSDO clock sources.
- Equipped with a built-in clock PLL, it facilitates the input of external 10MHz and 1PPS synchronization signals.
- Tune within the frequency range of 50MHz to 6GHz, with a maximum real-time processing bandwidth of 56MHz signal.
- USB 3.0 high-speed interface.
- The onboard Artix-7 100T FPGA 100000 Logic Cells support personalized development.
Base Band Performance:
- ADC sampling rate (maximum): 61.44MS/s
- ADC resolution: 12bits
- ADC SFDR: 78dBc
- DAC sampling rate (maximum): 61.44MS/s
- DAC resolution: 12bits
Clock Performance:
- Clock frequency precision: +/-0.5ppm
- External clock interface (1th IPEX): 1
- 1PPS interface (1th IPEX): 1
RF Performance:
- Output power: >10dBm
- IIP3 (at typ NF): -20dBm
- Receive Noise Figure: <8dB
Other Specification:
- Power consumption (maximum): 2800mW
- USB3.0 Type-C: 1
- Product size: 89.5 x 63mm
- Motherboard net weight: 50g

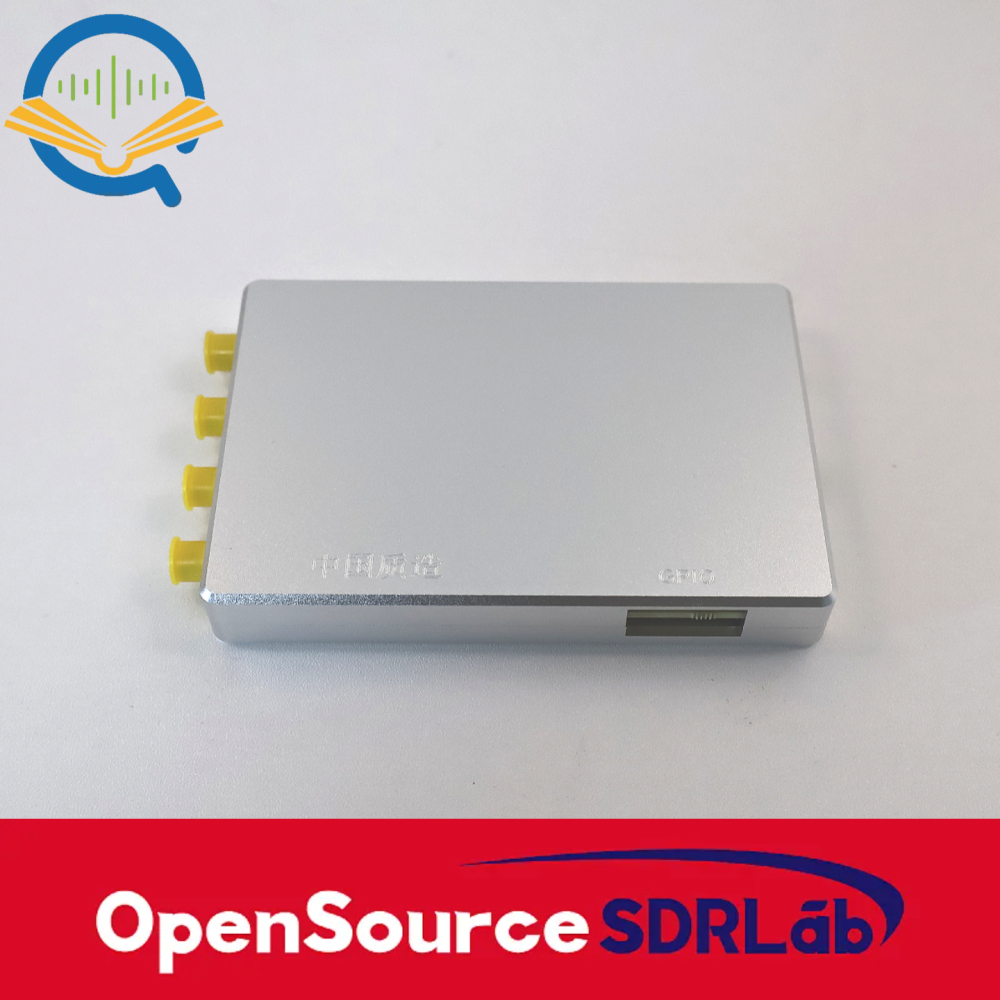

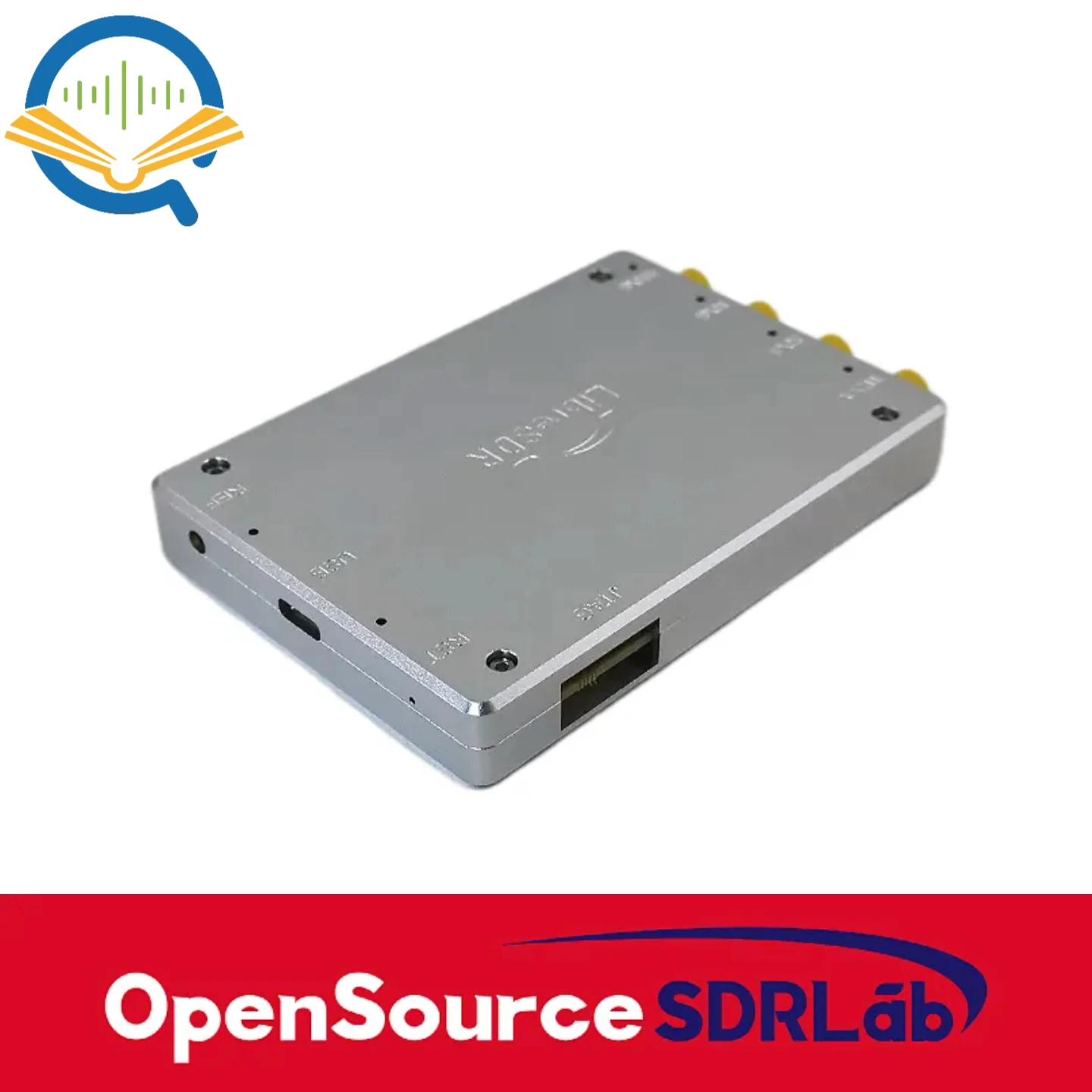

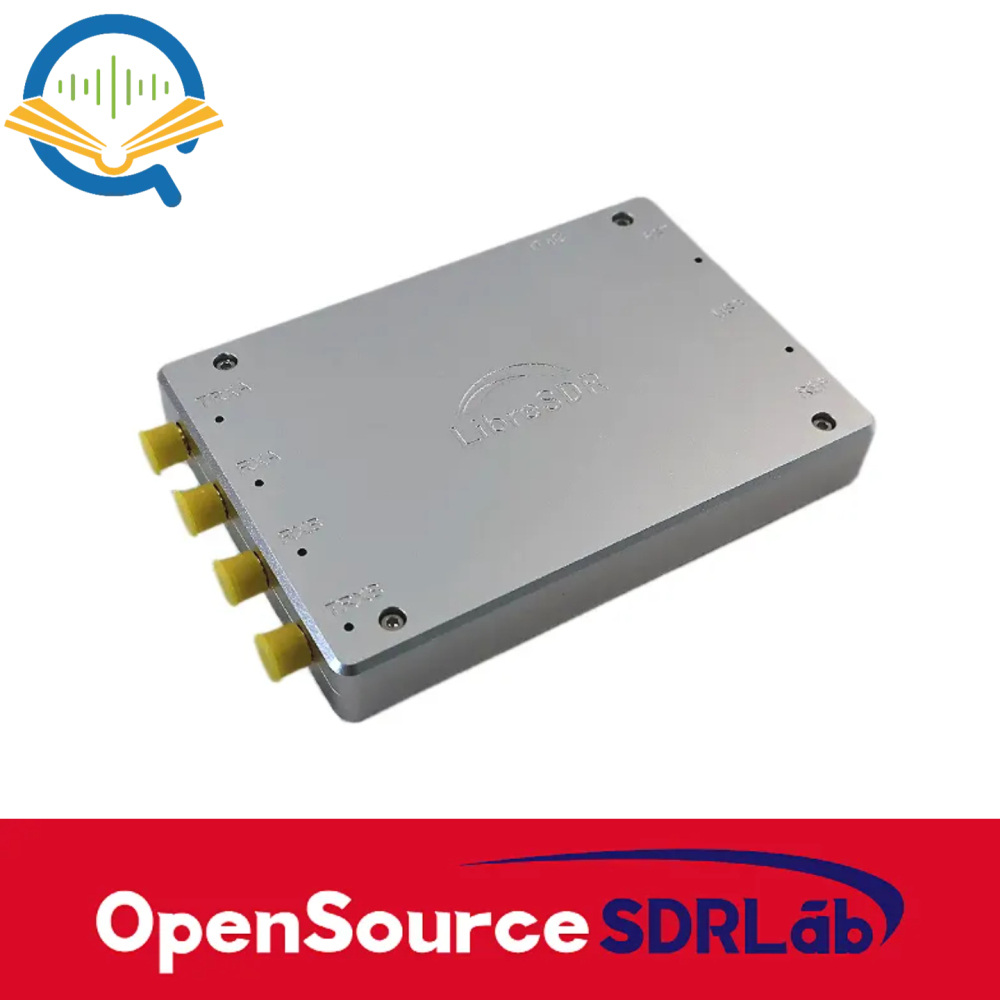

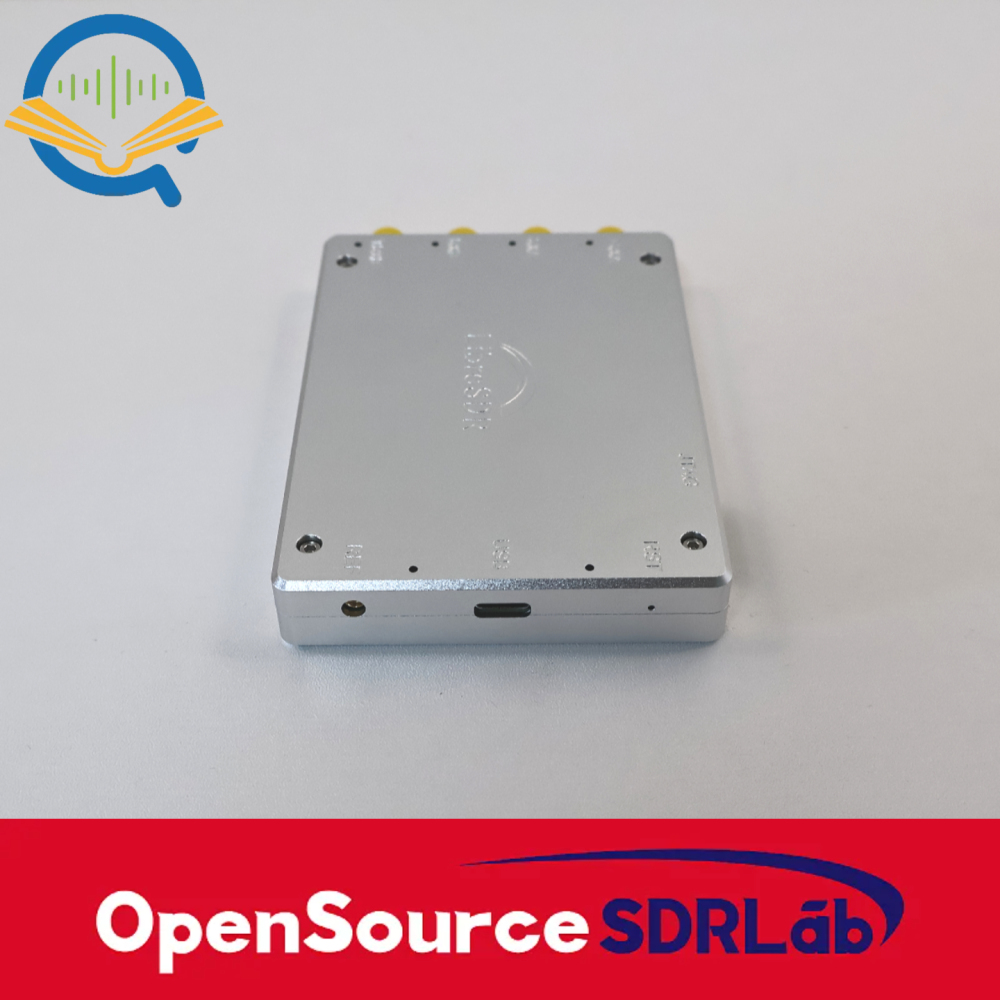

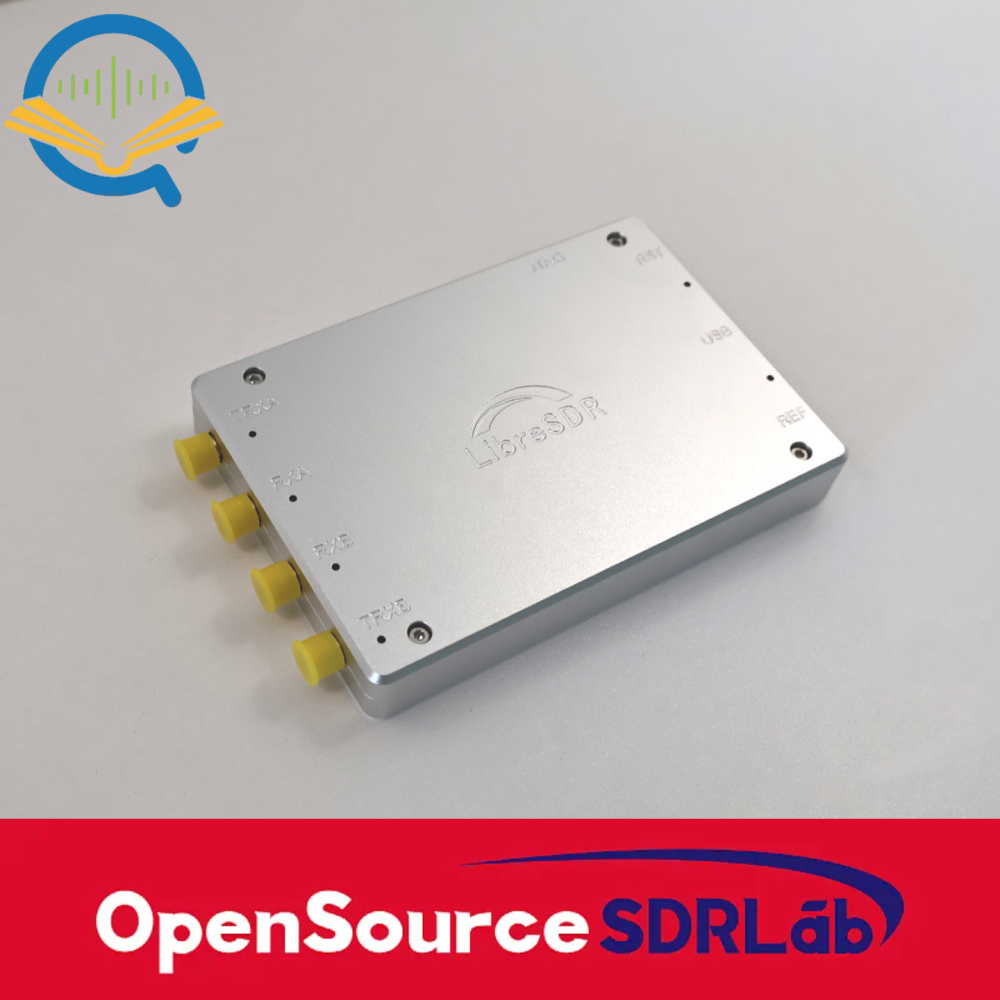

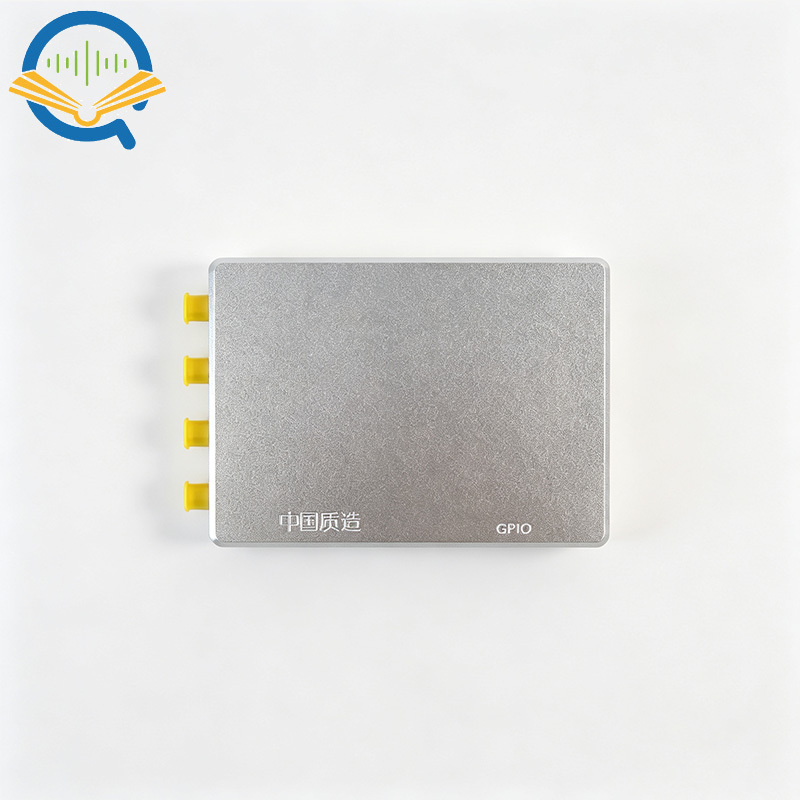

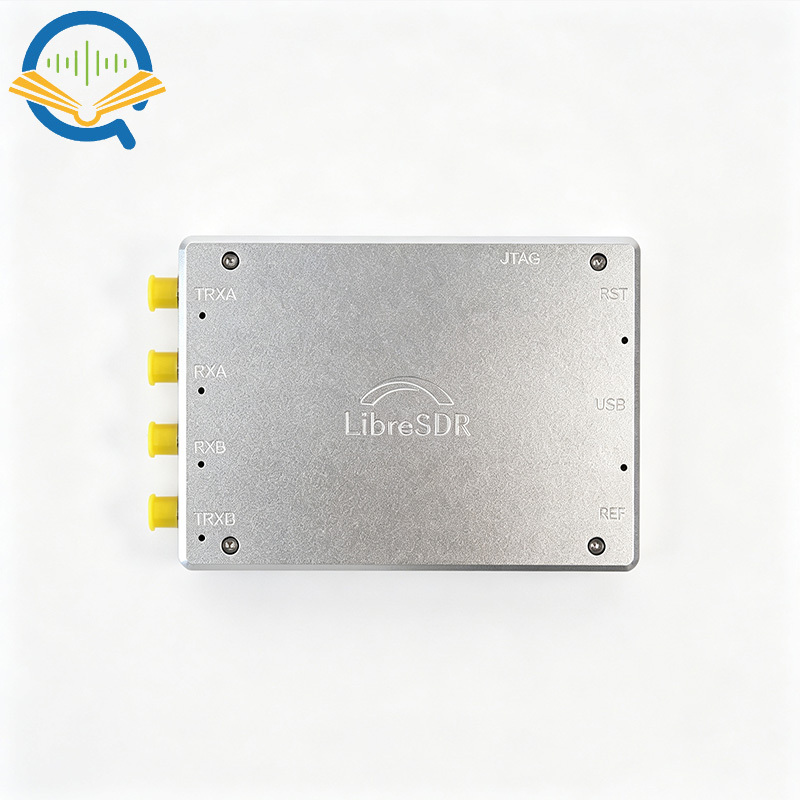

Product Details Display：
