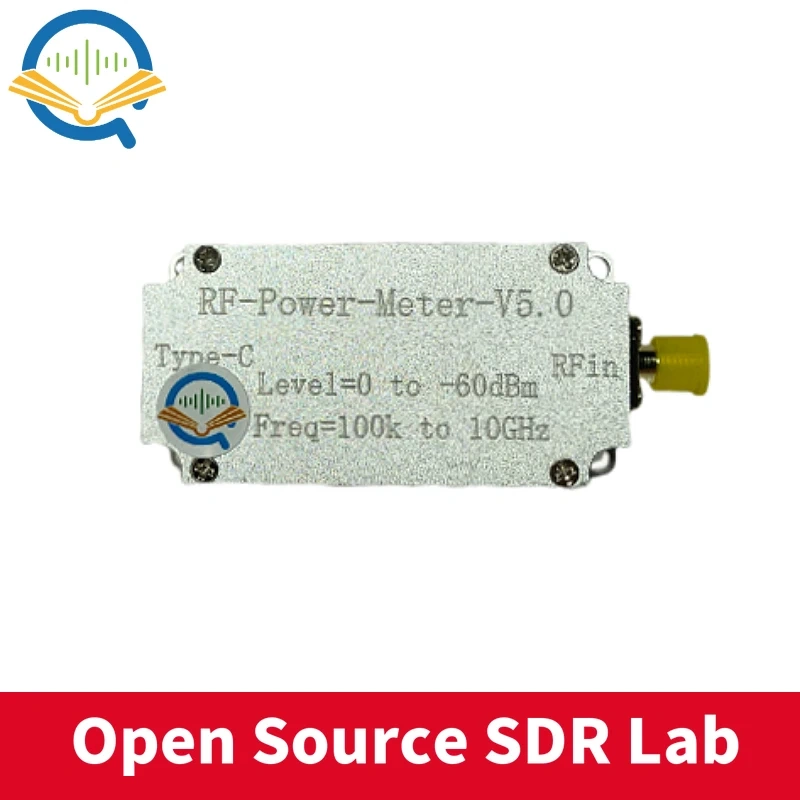

RF-Power-Meter-V5.0 100K To 10GHz RF Power Meter High-Speed Acquisition Type With Type-C Data Port

Description:
RF-Power-Meter-V5.0 is a high-performance cheap portable USB simple radio frequency power meter. Provide 5V power supply and data communication via USB. Easy to use, small size, easy to carry, stable performance, high accuracy, preset offset, wide dynamic range, fast measurement speed. The software supporting this power meter allows users to configure the power meter on a PC and makes data recording and sharing simple.

Engineered for Precision and Performance
Introducing the RF-Power-Meter-V5.0, a cutting-edge solution for professionals seeking unparalleled accuracy in radio frequency measurements. This high-performance device is designed to cater to a wide range of applications, from calibration of radio frequency instruments to interference detection between wireless communication devices. With a measuring frequency range of 100K to 10GHz, this power meter ensures precise readings across a broad spectrum, making it an essential tool for any RF engineer or technician.
The RF-Power-Meter-V5.0 stands out with its high-speed acquisition capabilities, supporting dynamic acquisitions up to 500kbps (2uS). This feature allows for rapid data collection, ensuring that you never miss a critical measurement. The device's ability to automatically find maximum and minimum values further enhances its utility, providing users with comprehensive insights into their RF environments. Whether you're measuring amplifier gain, network attenuation, or the forward and reflected power in a directional coupler, this power meter delivers the precision you need.

Seamless Integration with Modern Systems
Designed with user convenience in mind, the RF-Power-Meter-V5.0 features a Type-C data port for easy connectivity and power supply. This ensures that the device is always ready for action, whether you're in the lab or out in the field. The accompanying software allows for seamless configuration on a PC, making data recording and sharing a breeze. This integration capability is particularly beneficial for professionals who rely on accurate data for decision-making and reporting.
The RF-Power-Meter-V5.0 is not just about performance; it's about enhancing your workflow. Its compact size and lightweight design make it easy to carry, while the CNC machined aluminum alloy shell ensures durability and protection against the rigors of daily use. This makes it an ideal choice for those who require a reliable and portable solution for their RF measurement needs.

Built for Versatility and Reliability
Versatility is at the heart of the RF-Power-Meter-V5.0. Its wide dynamic range of 60dB and measurement power resolution of ±0.1 dBm make it suitable for a variety of applications, from measuring the standing wave ratio of RF circuits to evaluating the performance of step attenuators. The device's input impedance of 50Ω ensures compatibility with a wide range of equipment, making it a versatile addition to any RF toolkit.
For those in search of the best power amplifier solutions, the RF-Power-Meter-V5.0 is an invaluable tool. It aids in the precise measurement of amplifier gain, ensuring that your audio power amplifier systems are performing at their best. Whether you're looking for amplifiers for sale or seeking to optimize your existing setup, this power meter provides the insights you need to make informed decisions.

In summary, the RF-Power-Meter-V5.0 is more than just a power meter; it's a comprehensive solution for RF professionals. Its combination of precision, integration, and versatility makes it an indispensable tool for anyone working with radio frequencies. Experience the difference with the RF-Power-Meter-V5.0 and elevate your RF measurement capabilities to new heights.


Advantages:
1. Support a variety of high-speed dynamic acquisitions, up to 500kbps (2uS)
2. Support up to 10GHz RF signal acquisition function
3. With 2 MARK cursor functions, it is convenient to measure the modulation pulse width
4. The function of automatically finding the maximum and minimum values
5. The maximum storage depth is 500 points
6. Support pause, data save and export function

Application:
- Calibration of radio frequency instruments
- Inspection and maintenance of radio frequency equipment
- Measurement of standing wave ratio of radio frequency circuit (adding feedback bridge)
- Measurement of return loss of radio frequency circuit
- Interference detection between wireless communication devices
- RSSI (received signal strength indicator) and transmission power level detection
- Performance evaluation of step attenuator
- Measurement of amplifier gain and network attenuation
- Measurement of forward power and reflected power in directional coupler
- Power measurement of GSM signal modulated by GMSK*

Technical Parameters:
1. Measuring power range -60 to +0 dBm (where 0 to -40dbm has good linearity)
2. Measurement power resolution ±0.1 dBm
3. The measuring frequency range is 100K to 10GHz
4. Input impedance: 50Ω
5. Dynamic range: 60dB

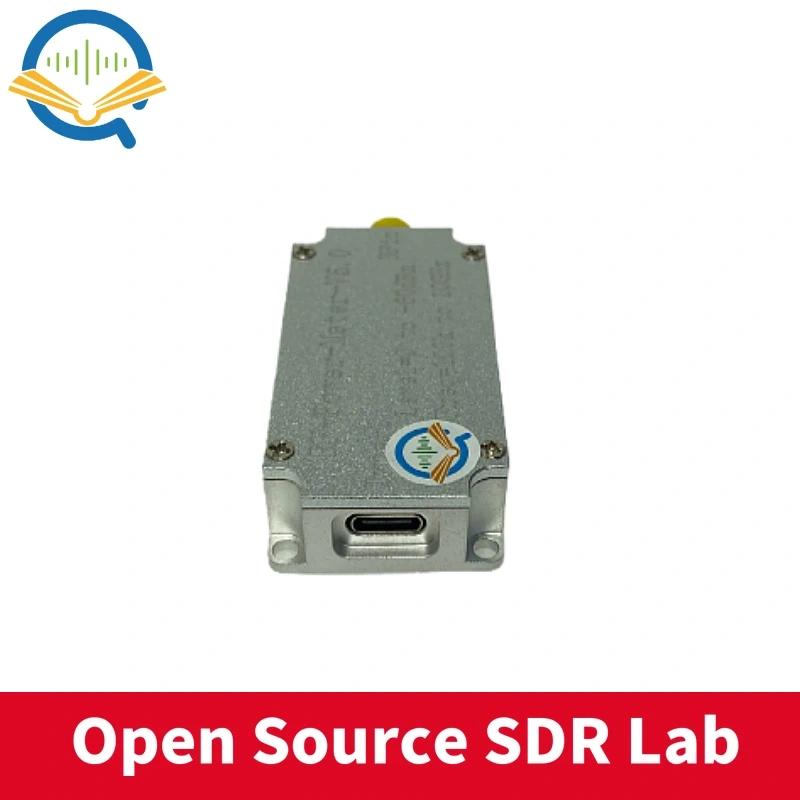

6. Working voltage 5VDC (power supply via TYPE-C cable)
7. Charging current: 100mA

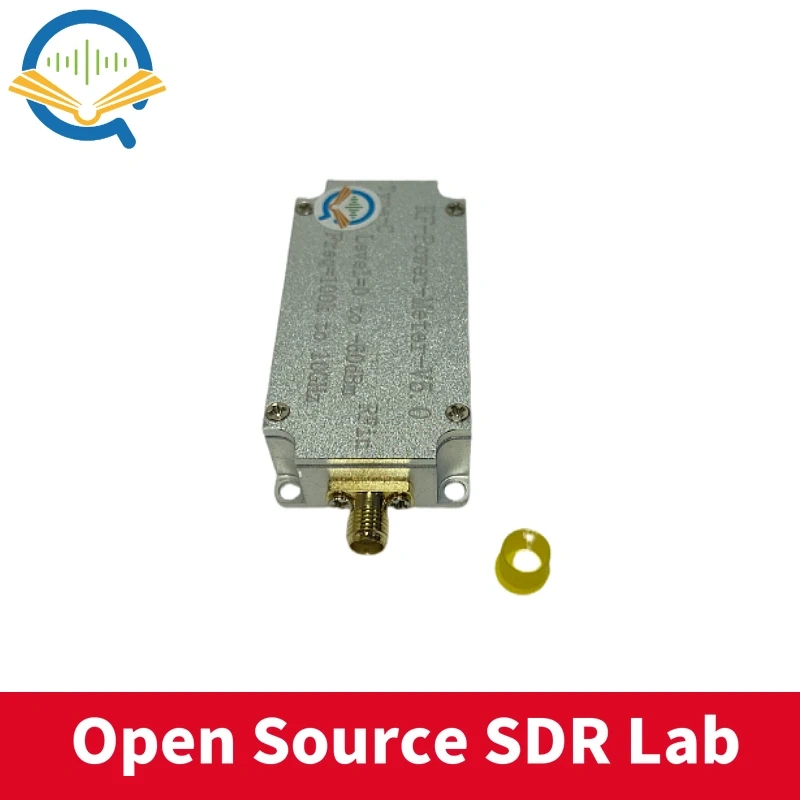

8. 6 x 3 x 1.4cm/2.4 x 1.2 x 0.6" (without sizes of SMA connectors)
9. CNC machined aluminum alloy shell, and the weight is less than 80g

Package Included:

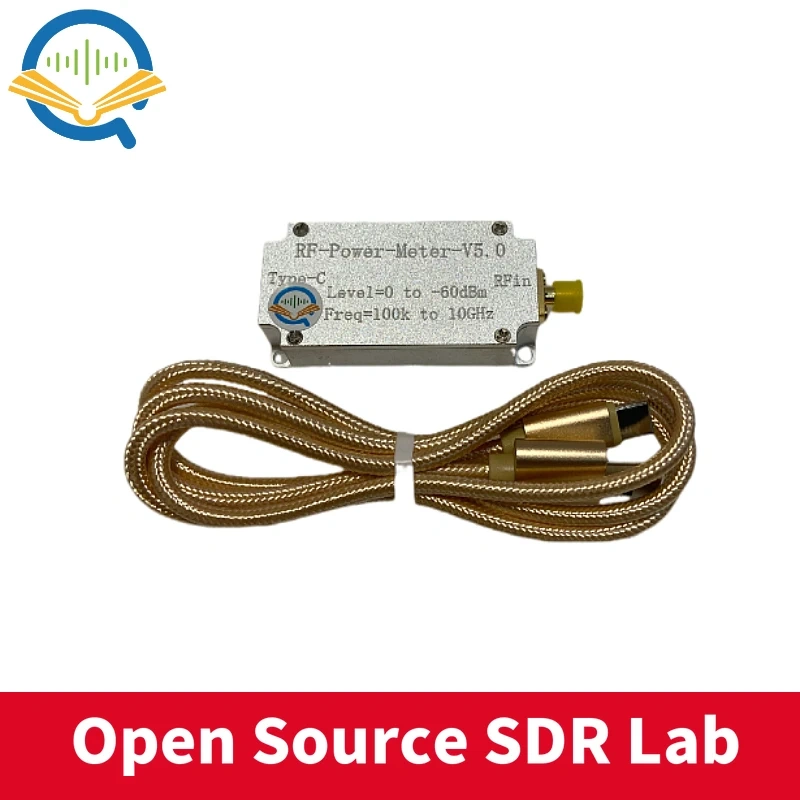

- 1 x RF Power Meter
- 1 x Type-C Cable
